50KA 3.6kv 7.2kv 12kv 24kv 40.5kv High Voltage HRC Fuse

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: XRNT
Minimum Order Quantity: 3-5 set
Packaging Details: WOODEN CASE
Delivery Time: 1-3 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 SET
Detail Information
Rated Voltage: 3.6kv 7.2kv 12kv 24kv 40.5kv Breaking Current: 50ka
Breaking Capacity: High Safety Standards: DIN
Type: Fuses Porcelain Color: White, Brown
Material: Porcelain Rated Current: 0.5A -220A
High Light:

220A HRC Fuse

,

50KA HRC Fuse

,

High Voltage HRC Fuse


Product Description

1. XRNT Type 3.6kv 7.2kv 12kv 24kv 40.5kv High Voltage HRC Fuse



H.V HRC current-liminting fuses type XRNP for transformer protection is mianly useed in AC 50

HZ,rated voltage 3.6~40.5kv,rated current up to 6.3A circuit for protection transformers from overload and short-circuit,it confirms to IEC282-1,BS and GB15166.2

This product can be used in indoor electrical system of ac 50HZ and rated voltage of 3.6~40.5KV for over-loading or short circuit protection for transformers and other appliance. XRNT high voltage fuses are designed with the plug-in structure and to be inserted into the holder, which is easy for replacement.



2. Technical data



Type Rated Voltage Rated Current(A)
XRNT-12 12KV 3.15,6.3,10,16,20,25,31.5,40
XRNT-12 12KV 50,63,71,80,100
XRNT-12 12KV 125,160,200,250
XRNT-24 24KV

3.15,6.3,10,16,20,25,31.5,40,

50,63,80,100,125,160,200

XRNT-40.5 40.5KV

3.15,6.3,10,16,20,25,31.5,

40,50,63,80,100





3. Drawing

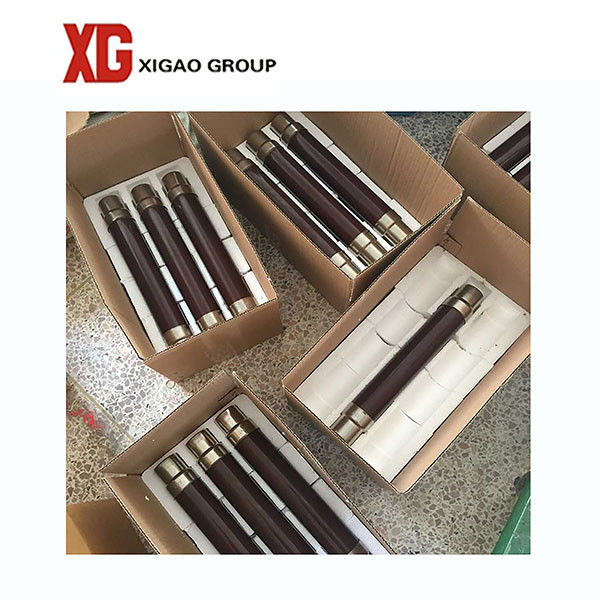

 50KA 3.6kv 7.2kv 12kv 24kv 40.5kv High Voltage HRC Fuse 0

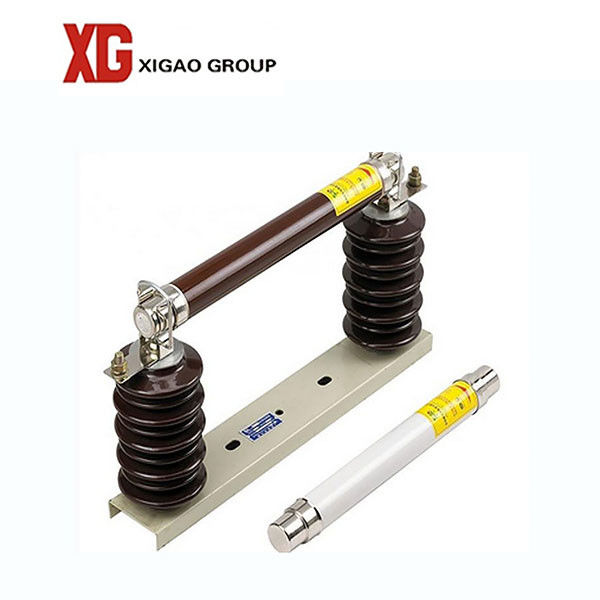

50KA 3.6kv 7.2kv 12kv 24kv 40.5kv High Voltage HRC Fuse 1

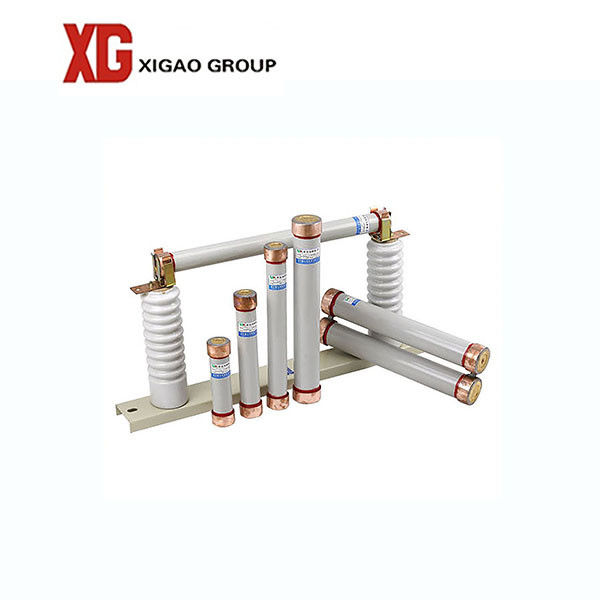

50KA 3.6kv 7.2kv 12kv 24kv 40.5kv High Voltage HRC Fuse 2

4. Factory



50KA 3.6kv 7.2kv 12kv 24kv 40.5kv High Voltage HRC Fuse 3



5. FAQ



1. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

2. Usually shipped by sea, small order or urgent order we can send you by air.

3. All our activities are accredited to ISO 14001:2015 and IEC standard.

4. Technology ensure the quality satisfy international request.

5.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

6. For tender cooperation, it is welcome to discuss the detail in between.
