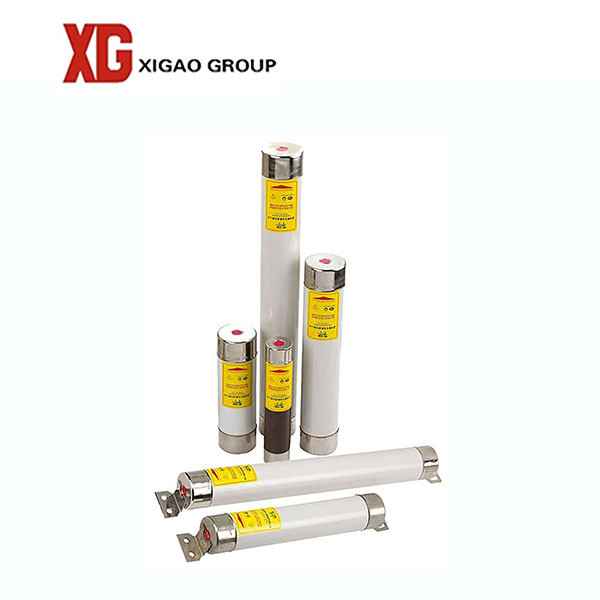

Name: XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse
Brand: Xi'an Xigao Electricenergy Group Co., Ltd.
SKU: XRNP
Price: 9.00 USD
Availability: InStock

XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse

Basic Information

Place of Origin:	XIAN,CHINA
Brand Name:	XG
Certification:	ISO
Model Number:	XRNP

Minimum Order Quantity:	3 SET
Packaging Details:	WOODEN CASE
Delivery Time:	1-3 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 SET

Get Best Price Contact Now

Detail Information

Ambient Temperature:	-45℃ To +40℃	Material:	Porcelain
System Voltage:	3.6kv 7.2kv 12kv 24kv 35kv	Standard:	IEC/GB
Installation Location:	Power Plants, Substations	System Current:	0.5a-200a
Certificate:	ISO	Color:	White, Brown
Highlight:	XRNM Current Limiting Fuse , 24kv Current Limiting Fuse , 35kv Current Limiting Fuse

Product Description

1. XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse HRC Fuse

Item	Rated Voltage KV	Rated Current A	Rated Breaking Current KA
XRNTI-10 SDL.J	12	1,2,3,15,6.3,10,16,20,31.5,40	31.5
XRNT1-10 SFL.J		50,63,70,80,100
XRNT1-10 SKL.J		125
XRN -10 FFL.J		10,16,20,25,31.5,40,50,63	50
XRNT1-10		160,200	50

Type	Rated Voltage KV	Rated Current A	Rated Breaking Current KA
XRNT -10 BDG	12	6.3,10,16,20,22.4,25,31.5,35.5,40,45,50	40
XRNT -10 BFG		56,63,71,80,90,100
XRNT -10 AKG		112,125,160,200
XR T -35	40.5	3.15,6.3,10,16,20,25,31.5,40,50	31.5

Type	Rated Voltage KV	Rated Current A	Rated Breaking Current KA
XRNM1-3 WDF.0	3.6	50,63,80,100,125	50
XRNM1-3 WFF.0		125,160,200	50
XRNM1-3 WKF.0		250,315,355,400	31.5
XRNM1-6 WFN.0	7.2	25,31.5,40,50,63,80,100,125,160	40
XRNM1-6 WKN.0	7.2	200,224,250,315
XRNM1-10	10	25,31.5,40,50,63,80,100,125,160,200,224

2. Drawing

XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse 0

XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse 1

3. Factory

XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse 2

4. Delivery

XRNP XRNT XRNM 3.6kv 7.2kv 12kv 24kv 35kv Current Limiting Fuse 3
