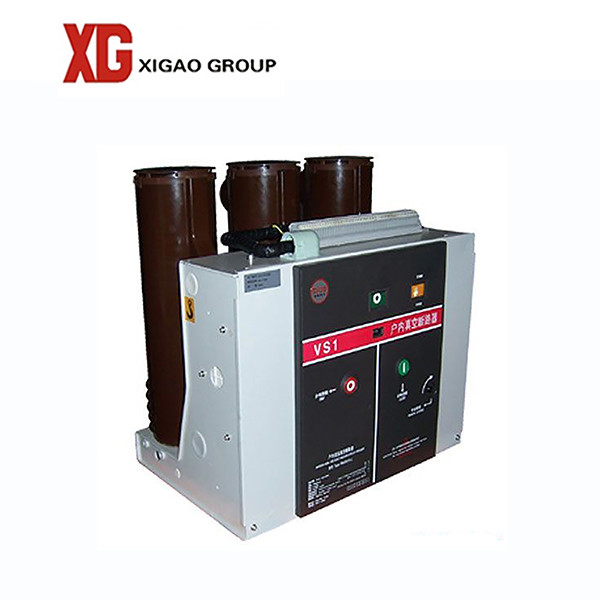

ZN63 VS1 3 Phase Indoor 24KV 630A 1250A VCB Vacuum Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZN63
Minimum Order Quantity: 1set
Packaging Details: WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Rated Voltage: 24kv Rated Current: 400A, 630A, 1250A, 1600A, 2000A, 2500A, 3150A,
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Medium: Vacuum
Material: Galvanized Sheet Standard: IEC/GB
High Light:

ZN63 VS1 Vacuum Circuit Breaker

,

400A Vacuum Circuit Breaker

,

1600A Vacuum Circuit Breaker


Product Description

1.  ZN63 VS1 series 3 phase indoor 24kv 630A 1250a vcb vacuum circuit breaker



ZN63-24 indoor H.V. vacuum circuit breaker is an indoor switchgear with three-phase, rated voltage of 24kV, control and protection for industrial and mining enterprises, power plants and substations, electrical facilities, and for frequent operation place adopting VET operating mechanism and circuit breaker integrated design can be used as a fixed installation unit can also be equipped with special advance mechanism, the composition of handcart unit used some of the main circuit can use the whole solid seal post with high reliability, maintenance-free, in order to achieve smaller circuit breakers, can be equipped with KYN28A 24 and other handcart switch cabinet. In the home it can also be used with fixed switchgear.

2. Main features:

⚫Mechanical and electrical durability During rated current, breaking times can reach to 10000, 20000 During rated
short-circuit current, breaking times can reach to 20, 30 and 50 times.
⚫ The circuit breaker has complete functions. It is used to switch on/off various loads as specified by DL standards, such as method 1-5, capacitor, out-of-phase conditions.
⚫ Easy maintenance Normally, it just needs to clean the operating mechanism and add lubricants.
⚫Vertical insulating tube Protect it from various environmental impacts.
⚫With complete product portfolio Rated current from 630A to 4000A Rated short-circuit current form 20kA to 50kA
⚫ It has the features of series, strong versatility, convenient use and easy maintenance. All products have passed
500 running-in tests according to reliability principle in the factory before delivery, so as to ensure the reliability.
⚫ We will provide you with qualified and high-efficient after-sales service.

3. Model



ZN63 VS1 3 Phase Indoor 24KV 630A 1250A VCB Vacuum Circuit Breaker 0





4. Main Technical Parameters





Main technical parameters for ZN63 Indoor Vacuum Circuit Breaker
Item Unit 20kva 25kA 31.5kA 40kA 50kA
Rated Voltage kV 24
Max working voltage kV 24
Rated Current A 630 1250 1250
1600
2500
3150
1250
1600
2500
3150
1250
2500
3150
Rated short circuit breaking current kA 20 25 31.5 40 50
Rated short circuit making current (peak) kA 50 63 80 100 125
Rated peak withstand current kA 50 63 80 100 125
4s rated short time
withstand current
kA 20 25 31.5 40 50
Rated
insulation
level
Power frequency withstand voltage kV 42(fracture48)
Impulse withstand voltage 75(fracture85)
Rated sequence of operation   0-0.3s-CO-180s-CO
Mechanical life time 10000
Breaking times of rated short circuit breaking current time 50
Operating voltage V AC/DC110, 220
Clearance between open contacts mm 11±1
Over travel (contact spring reduction length) mm 4±0.5
Three-phase opening/closing asynchrunous ms ≤2
Contact closing bounce time ms ≤2
Avarage opening speed m/s 0.9~1.2
Avarage closing speed m/s 0.4~0.8
Opening
time
Under max operation voltage s ≤0.05
Under min operation voltage ≤0.08
Closing time s ≤0.1
Each phase main loop resistance µΩ ≤40
Allowable attrition thickness of moving and fixed contact mm 3



5. Application



Maximum temperature: +40℃; Minimum temperature:-25℃.

Altitude above sea level: Maximum installation altitude: 2500m.

Humidity: Monthly average humidity 95%; Daily average humidity 90% .

Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

No frequent violent shake.





6. Factory



ZN63 VS1 3 Phase Indoor 24KV 630A 1250A VCB Vacuum Circuit Breaker 1
