VS1 -12KV Fixed Type Side Type 630A 1250A Vacuum Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZN63
Minimum Order Quantity: 1set
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Rated Voltage: 24kv Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A,
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Medium: Vacuum
Material: Galvanized Sheet Standard: IEC/GB
High Light:

VS1 -12KV Vacuum Circuit Breaker

,

630A Vacuum Circuit Breaker

,

1250A Vacuum Circuit Breaker


Product Description

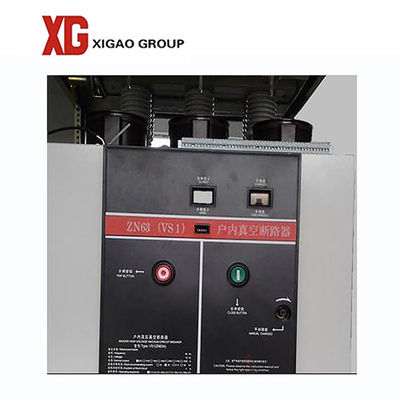

1. VS1 -12KV fixed type side type indoor vacuum circuit breaker 630A 1250A

VS1 -12KV fixed type indoor vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz/60Hz Indoor high-voltage switchgear ,applied for power stations, substations, and industrial and mining enterprises to control or protection transmission and distribution systems , specially for the important high altitude breaking load and frequent operation place.
Circuit breaker manufacturing accordance with our national standard GB1984-2003 <AC high voltage circuit breakers>, DL / T403-2000<3.6 ~ 40.5kV Indoor Vacuum Circuit Breaker ordering technology>; and the related IEC standards And reliable interlock function.
Circuit breaker operating mechanism for the spring energy storage type, can use AC and DC energy storage operations, can also be used manually.
Circuit breaker can also be equipped with long life permanent magnetic actuator, mechanical life can reached 60000 times , can be used for extremely Frequent operation place,
Circuit breaker designed to repackage the structure before and after, both can be used as a fixed installation unit, Can also be equipped with the chassis as used in the mounted unit.


2. use of environmental conditions:

1.Ambient temperature: not higher than +40 °C, not less than -15°C
2. Altitude: not exceed 1000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
4. Earthquake intensity: not more than ten.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.



3. Mainly technical parameters


NO Item Units parameters
1 Rated voltage KV 12
2 Rated Frequency HZ 50/60
3 Rated Current A 2000A
4 Rated short-circuit breaking current KA 40KA
5 Rated short-circuit closing current (peak) KA 50 63 80
6 Rated short-circuit duration S 4
7 Rated short-circuit breaking current breaking number nos 50s
8 Rated operating sequence   0-0.3s-CO-180s-CO
9 Rated lightning impulse withstand voltage kv 125
10 1min power frequency withstand voltage KV 65
11 Closing time ms ≤ 70
12 opening time ms ≤ 50
13 Mechanical life Times 20000
14 Rated Storage and operation voltage V AC DC 220/110
15 Breaking life ms ≤ 80
16 Storage life s ≤ 10
Adjust the parameters of mechanical properties:
No Item Unit Parameters
1 Contact distance mm 14±1
2 Contact Over-travel mm 3.5±1
3 Closing speed m/s 1.0±0.2
4 Opening speed m/s 1.3±0.2
5 Contact closing spring time ms ≤2
6 Rated contact pressure N 40KA (4000±200)
7 Three phase closing opening asynchrony ms ≤2


4. Application

Maximum temperature: +40℃; Minimum temperature:-25℃.
Altitude above sea level: Maximum installation altitude: 2500m.
Humidity: Monthly average humidity 95%; Daily average humidity 90% .
Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
No frequent violent shake.


5. Factory
