Indoor 3 Phase Draw Out Type 40.5KV 33kv VCB Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZN85
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Type: Indoor Rated Voltage: 33kv,36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Medium: Vacuum Material: Galvanized Sheet And Accessories
Standard: GB, IEC Standard Function: Control And Protection
High Light:

ZN85 VCB Circuit Breaker

,

40.5KV VCB Circuit Breaker

,

33kv VCB Circuit Breaker


Product Description

1. ZN85 type indoor 3 phase draw out type 40.5KV 33kv vacuum circuit breaker VCB



1.1.Application: for the control and protection of substation and equipments; making and breaking short-circuit current under various operating status of electric network. It matches with matched Indoor Type Vacuum Circuit Breaker ZN12-40.5, ZN23-40.5 .

1.2.Standards: IEC 62271-100

1.3.Parameters: Rated voltage: 40.5kV.
Rated current: 2000A .
Rated frequence:AC50HZ.



2. Structural features:



Zn85-40.5 / t2000-31.5 indoor high voltage vacuum circuit breaker (hereinafter referred to as the circuit breaker), suitable for three-phase ac 50Hz, rated voltage 40.5kv power system, for industrial and mining enterprises, power plants and substations as load current, overload current, fault current.



The circuit breaker and operating mechanism adopt upper and lower arrangement structure, which effectively reduces the depth of the circuit breaker.



The three-phase arc extinguishing chamber and the connected charged body are isolated by three independent epoxy resin insulation cylinders to form a composite insulation structure.The main circuit vacuum arc extinguishing chamber and the static and static conductive connection are installed on the insulation tube, so that the phase spacing is only 300mm.The main circuit electric connection all USES the fixed connection, has the very high reliability.The insulation tube is installed above the circuit breaker frame.



The spring operating mechanism specially designed for this new type of circuit breaker is installed in the framework of the circuit breaker. Its structural characteristics are more suitable for the upper and lower layout of the circuit breaker and become an integral part of the overall structure of the circuit breaker.The mechanism design is simple, the output curve and its performance are more suitable for the characteristics and requirements of 40.5kv vacuum circuit breaker.



The overall layout is reasonable, beautiful and concise.Small size, flexible operation, reliable electrical performance, long service life, convenient maintenance, maintenance mechanism features.



The circuit breaker is suitable for frequent operation and a variety of occasions and operating conditions are harsh places.



3. Environmental conditions:



Relative humidity: the daily average does not exceed 95%, and the monthly average does not exceed 90%;

Earthquake intensity: no more than 8 degrees;

Altitude: the altitude does not exceed 2000m;

Ambient temperature: no higher than +40℃, not lower than -25℃;



4. main technical parameters





Item
Unit
Value
Rated Voltage

kV
40.5
Rated Frequency
Hz
50/60
Rated Power Frequency Withstand Voltage(1min)
kV
95
Rated Lightning Impulse Withstand Voltage(Peak)
kV
185
Rated Current
A
630/1250/1600/200/2500
Rated Peak Withstand Current Rated Short Circuit Closing Current
kA
25/31.5
Rated Short Circuit Current Breaking Times
Times
20
Rated Short-circuit Duration
s
4
Rated Operation Sequence

O-0.3s-CO-180s-CO
Mechanical Life
Times
10000
Rated Operation Voltage
V
DC110/220;AC110/220
Rated Single/ Back-to-back Capacitor Group Breaking Current
A
630/400




5. Photo and drawing

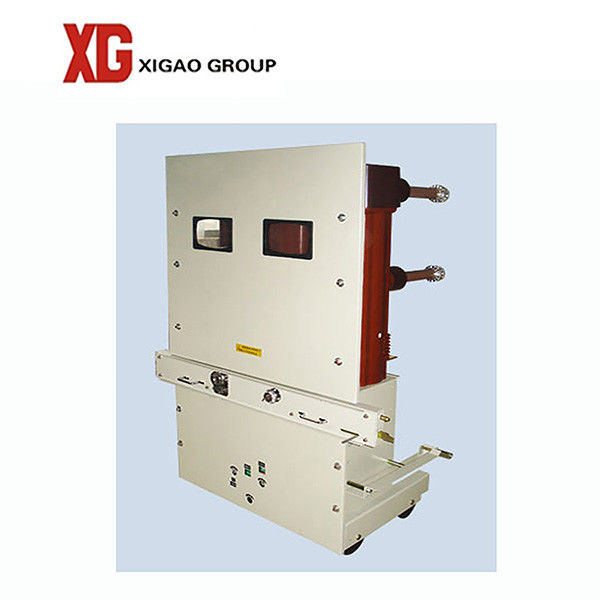

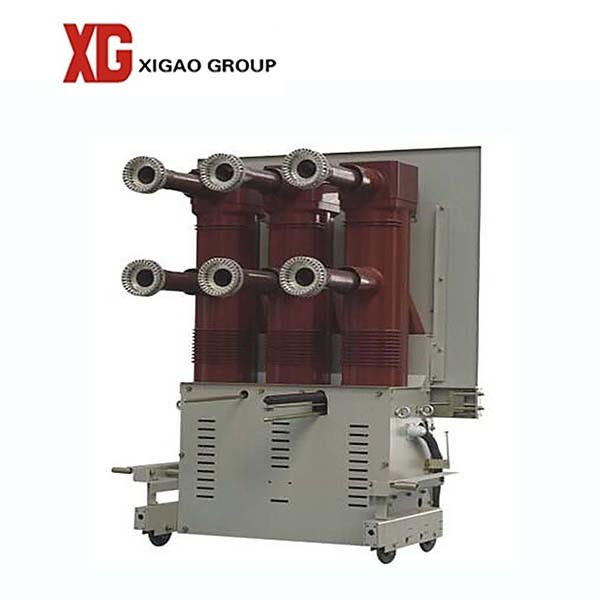

Indoor 3 Phase Draw Out Type 40.5KV 33kv VCB Circuit Breaker 0

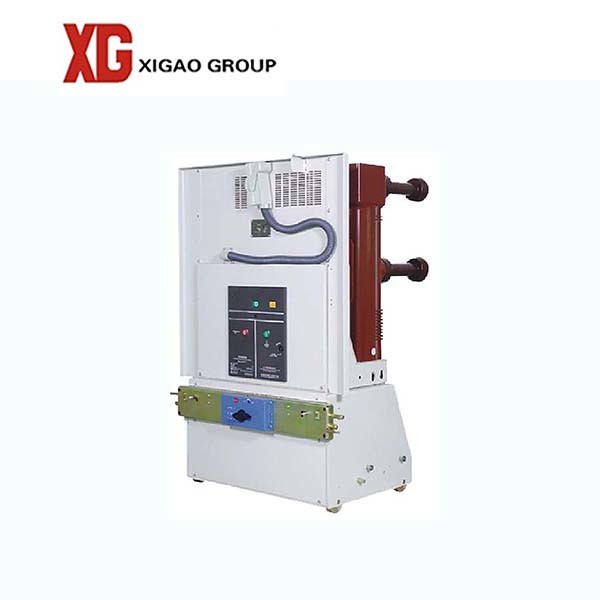

Indoor 3 Phase Draw Out Type 40.5KV 33kv VCB Circuit Breaker 1
