ZW32 12kv 630A 1600A 2500A Outdoor Auto Recloser Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZW32
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Type: Indoor Rated Voltage: 3.6KV 6.6KV 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Poles Number: 3 Phase: 3 Phase
Medium: Vacuum Material: Galvanized Sheet And Accessories
High Light:

ZW32 Auto Recloser Circuit Breaker

,

2500A Auto Recloser Circuit Breaker

,

12kv Vacuum Circuit Breaker


Product Description

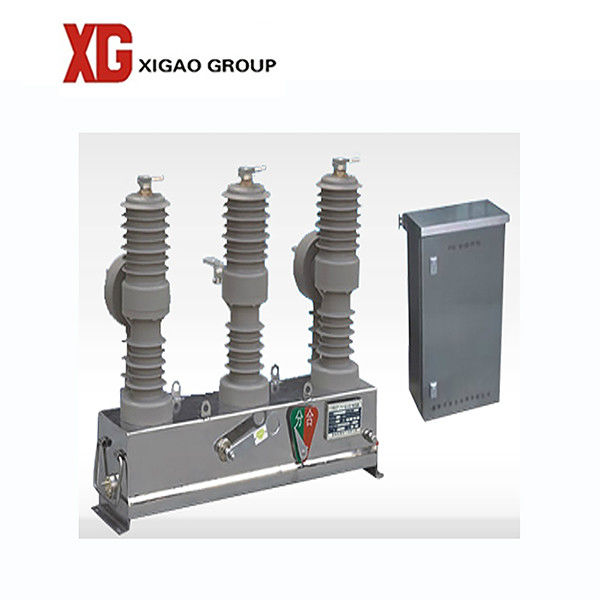

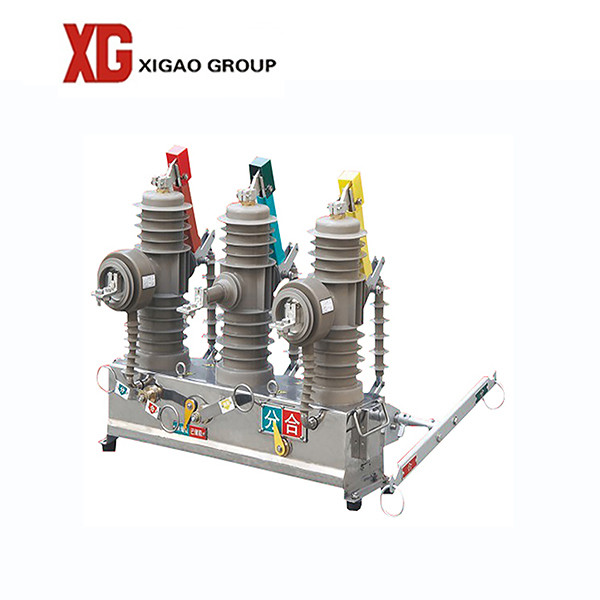

1.  ZW32 12kv 630A 1600A 2500A Outdoor Vacuum Circuit Breaker Auto Recloser





ZW32-12 outdoor vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with rated voltage of 12KV and three-phase AC 50Hz. It is mainly used to break and close the load current, overload current and short circuit current in the power system. It is suitable for protection and control in substation and industrial and mining enterprise substation systems, and places where rural power grids operate frequently.
The circuit breaker has the characteristics of small size, light weight, anti-condensation and maintenance-free, and can adapt to harsh weather conditions and dirty environments.





2. Standards compliant:





GB1984 "AC high voltage circuit breaker"
GB11022 "Common technical requirements for high-voltage switchgear and control equipment standards"
GB311.1-6 "Insulation coordination of high voltage power transmission and transformation equipment"
GB763 "Communication of AC high voltage electrical appliances during long-term work"
BG2706 "Test Method for Dynamic and Thermal Stability of AC High Voltage Apparatus"
GB3309 "Mechanical test of high voltage switchgear at room temperature"
DL/T593 "Technical Conditions for Common Ordering of High Voltage Switchgear"





3. main technical parameters:





Sr. Name Unit Value
1 Rated voltage KV 12
2 Rated frequency Hz 50
3 Rated current A 630
4 Rated short-circuit breaking current KA 20
5 Rated peak withstand current (peak) KA 50
6 Rated short-time withstand current KA 20
7 Rated short circuit closing current (peak) KA 50
8 Mechanical life Time 10000
9 Rated short circuit current breaking times Time 30
10 Power frequency withstand voltage (1min): (wet) (dry) phase, ground, fracture KV 42/48
11 Lightning impulse withstand voltage (peak), phase to ground, fracture KV 75/85
12 Secondary circuit 1min power frequency withstand voltage KV

2







4. Photo and drawing










5. Factory





ZW32 12kv 630A 1600A 2500A Outdoor Auto Recloser Circuit Breaker 1



6. FAQ





1.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

2. For tender cooperation, it is welcome to discuss the detail in between.

3. Some type reports are provided accordingly.

4. Our factory is 250000m2 for production and office.

5. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
