Electric Operation ZW32 33kv Outdoor 33kv Auto Recloser

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO, type report
Model Number: ZW32
Minimum Order Quantity: 1 SET
Packaging Details: exporting package
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Application: Outdoor Rated Voltage: 11KV 24KV 22KV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Rated Frequency: 50/60Hz
Poles No.: 3 Phase: 3
Medium: Vacuum Usage: Pol Mounted
High Light:

ZW32 33kv Auto Recloser

,

Outdoor 33kv Auto Recloser

,

3 Phase 33kv Auto Recloser


Product Description

1.  Electric Operation Auto Recloser 33kv Outdoor Vacuum Circuit Breaker



ZW32-12 Series Outdoor High Voltage Vacuum Circuit Breaker is widely used in the power system of three-phase, which has AC 50Hz and 10~12Kv voltage level. The main function of the equipment is breaking and closing the loading current, and also it can protect electric consumption by tele-control and tele-monitor. Meanwhile, ZW32-12 can be used in both of Business biased and household biased.



2.  Advantages:



2.1. It conforms to the national GB1984“High voltage alternating current circuit breaker”.

2.2  It conforms to professional standard JB3855“3.6~40.5 kV voltage vacuum circuit breaker outdoor exchange” and relevant IEC standard.



3.  Condition:



Ambient temperature:-40°C~+40°C

Wind pressure:≤700Pa(equivalent to wind speed 34m/s)

Relative humidity:≤95%or≤90%

Altitude:≤2000m

Seismic intensity:≤8

*No fire, explosion, serious filthy, chemical corrosion and violent vibration of places.



4. Main technical parameters:



Item
Unit
Parameter
Rated Voltage


KV
12

Rated Insulation Level
1 Min power frequency witstand Voltage
Dry test
42
Wet Test
34
Lighting impulse withstand voltage(peak)
75
Rated Current
A
630
400
200
Rated short-circuit breaking current
KA
20
16
12.5
Rated opertaing sequence

O-0.3s-CO-180s-CO
Rated short-circuit breaking current time
Times
30
Rated short-circuit closed current(peak)


KA

50
Rated peak withstand current
50
Rated short-time withstand current
20
Rated short-circuit duration
s
4

opening time (magnetic releasing)
Max operating voltage

ms
23~45
Rated operating voltage
23~60
Min operating voltage
25~45
close time

ms
≤100
total break time
≤20
Mechanism life
Times
1000
rated input power of Storage energy motor
Times
40



5. Photo and drawing

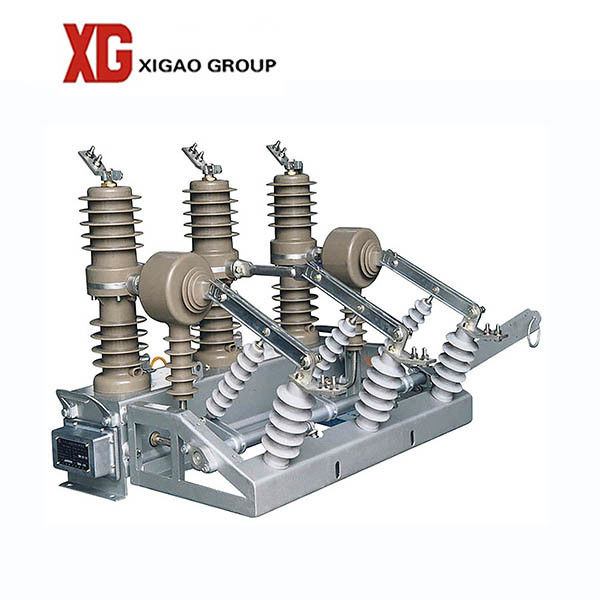

Electric Operation ZW32 33kv Outdoor 33kv Auto Recloser 0



6. Factory

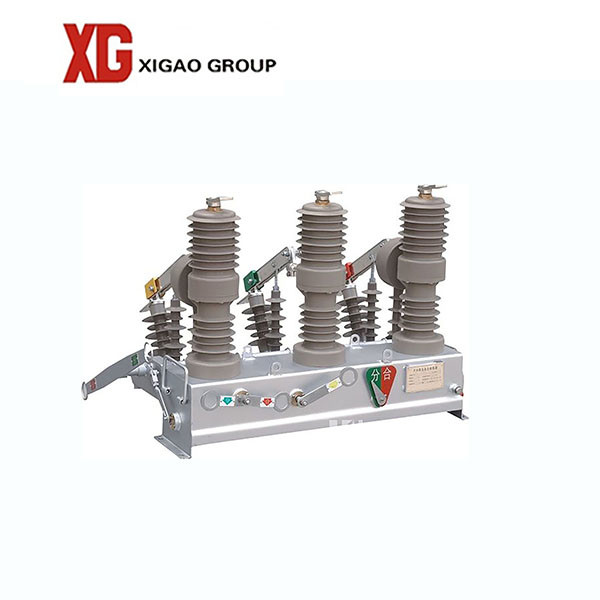

Electric Operation ZW32 33kv Outdoor 33kv Auto Recloser 1
