Moter Operation 24kv Outdoor Auto Recloser VCB Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO, type report
Model Number: ZW32
Minimum Order Quantity: 1 SET
Packaging Details: exporting package
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Application: Outdoor Rated Voltage: 24KV 22KV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Rated Frequency: 50/60Hz
Poles No.: 3 Phase No.: 3
Medium Type: Vacuum Usage: Pol Mounted
High Light:

22KV VCB Circuit Breaker

,

Outdoor VCB Circuit Breaker

,

ZW32 VCB Circuit Breaker


Product Description

1.  Moter Operation 24kv Outdoor Auto Recloser Vacuum Circuit Breaker



ZW32-24 type outdoor vacuum circuit breaker is rated voltage 24kV, three-phase AC 50Hz outdoor distribution equipment. Mainly used for breaking, closing power system load current, overload current and short circuit Current. For substation and industrial and mining enterprises distribution system protection and control of workplace use, and frequent operation of rural power grids. The circuit breaker vacuum interrupter technique using solid seal, external insulation silicon Rubber sleeve, long life and high relibility, actuator can be miniaturized, highly rliable spring mechanism may also be advanced permanent magnet body. You can also configure isolating switches and itelligent controllers, with But when slicer kind of coincidence Used, enabling four remote functions and distribution automation.



2.  Advantages:



2.1. It conforms to the national GB1984“High voltage alternating current circuit breaker”.

2.2  It conforms to professional standard JB3855“3.6~40.5 kV voltage vacuum circuit breaker outdoor exchange” and relevant IEC standard.



3.  Condition:



Relative humidity:≤95%or≤90%

Altitude:≤2000m

Ambient temperature:-40°C~+40°C

Wind pressure:≤700Pa(equivalent to wind speed 34m/s)

Seismic intensity:≤8

*No fire, explosion, serious filthy, chemical corrosion and violent vibration of places.



4. Main technical parameters:



Name Unit Data
Rated voltage KV 24
Rated power frequency Hz 50/60
Rated current KA 630
Rated short-circuit breaking current KA 20
Rated peak withstand current(peak) KA 50
Rated short-time withstand current KA 20
Rated short-circuit making current(peak) KA 50
Mechanical life Secondary 10000
Rated short-circuit breakingcurrent breaking times Secondary 30

Power frequency withstand voltage

(1min) :vacuum fracture,white, on the groundfracture

KV 65/79

Lighting impulse withstand votage

(peak) and white, right fracture

KV 125/145

Secondary circuit 1min power

frequency withstand voltage

KV 2



5. Photo and drawing

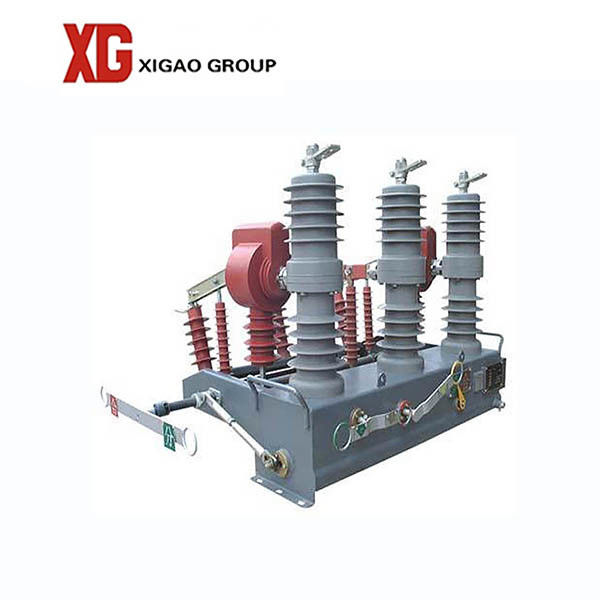

Moter Operation 24kv Outdoor Auto Recloser VCB Circuit Breaker 0

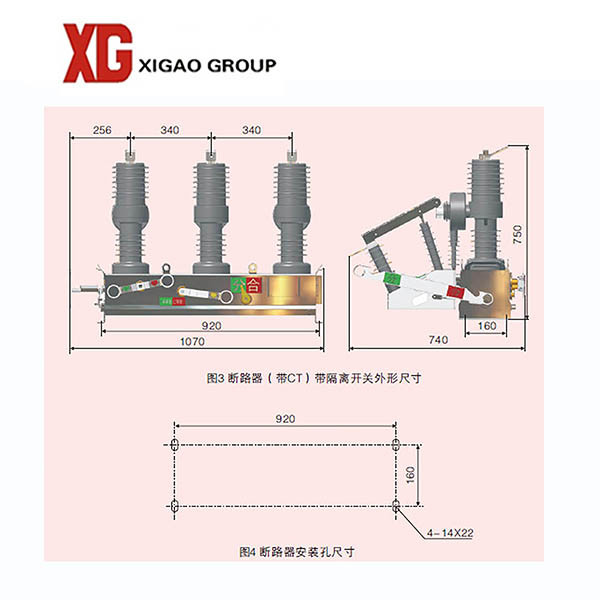

Moter Operation 24kv Outdoor Auto Recloser VCB Circuit Breaker 1
