S13 Pole Mounted 3 Phase 10kv 11kv 35kv 33KV Power Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO, CCC
Model Number: S11
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Primary Voltage: 10kv Secondary Voltage: 0.4kv
Output Voltage: 200v/220/240/380v/400v/415v/440v Cooling Method: ONAN
Coil Structure: Winding Type: Oil Immersed
Material: Cooper Windings: Silicon Steel Core/Copper Or Aluminum Winding
High Light:

S13 33KV Power Transformer

,

Pole Mounted 33KV Power Transformer

,

CCC 33KV Power Transformer


Product Description

1. S13 Type pole mounted 3 Phase 10kv 11kv 33kv 35kv Oil Type Power Transformer

Use new structure, with reasonable design. Optimize the insulation technology, improve the mechanical strength and anti short circuit ability. The core is made of high quality cold rolled silicon steel, the surface coating paint, with low loss and noise. The appearance is fancy, with easy and reliable operation.


2. Technical Parameter

S11 Series 35kV 50~2500kVA Oil-Immersed Transformer
Technical Specification Data

Rated
Capacity
Voltage Composition

Vector
Group
No-load
power
(W)

Load Loss
(75℃)
(W)

No-load
Current
(%)

Impedance
(%)
High
Voltage
(kV)
Tapping Range
Low Voltage
(kV)
50kVA


35
38.5












±5%
or
±2×2.5%













0.4












Dyn11
or
Yyn0
160
1200/1140
1.3








6.5
100kVA
230
2010/1910
1.1
125kVA
270
2370/2260
1.1
160kVA
280
2820/2680
1.0
200kVA
340
3320/3160
1.0
250kVA
400
3950/3760
0.95
315kVA


35
38.5
480
4750/4530
0.95
400kVA
580
5740/5470
0.85
500kVA
680
6910/6580
0.85
630kVA
830
7860
0.65
800kVA
980
9400
0.65
1000kVA
1150
11500
0.65
1250kVA
1400
13900
0.6



6.5
1600kVA
1690
16600
0.6
2000kVA
1990
19700
0.55
2500kVA
2360
23200
0.55

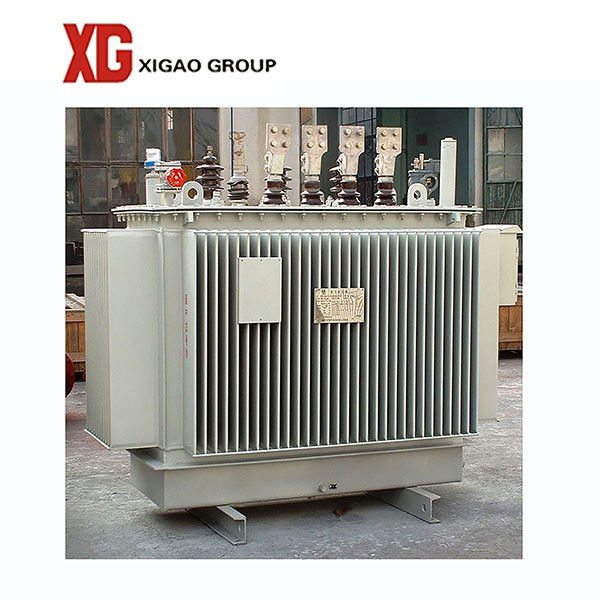

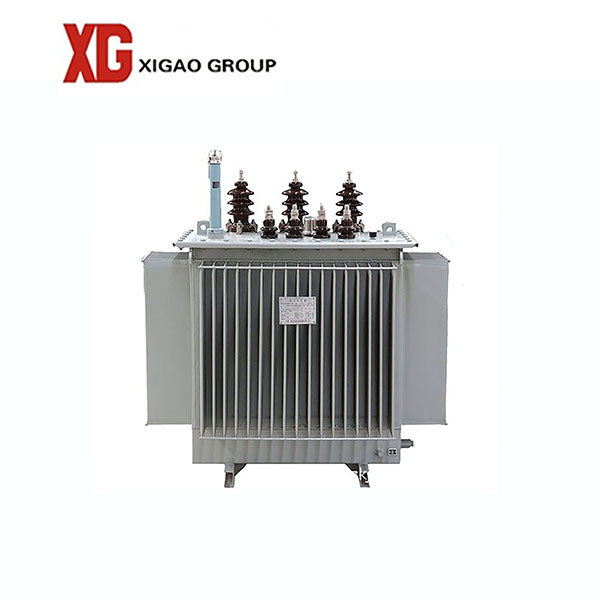

S13 Pole Mounted 3 Phase 10kv 11kv 35kv 33KV Power Transformer 0



3. Factory

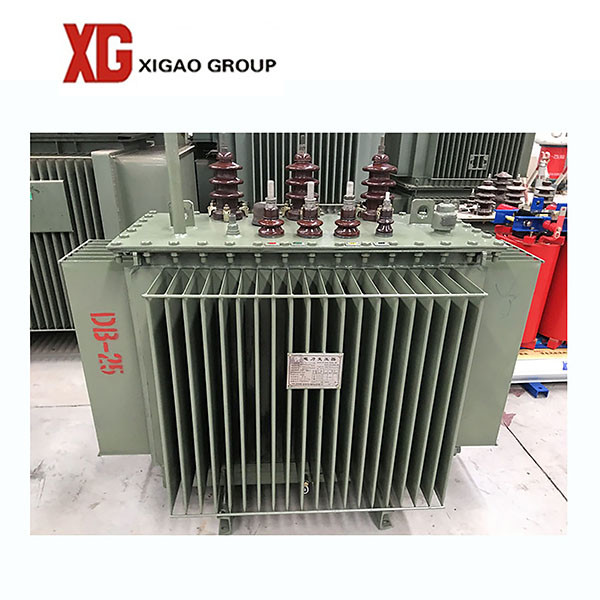

S13 Pole Mounted 3 Phase 10kv 11kv 35kv 33KV Power Transformer 1



4. FAQ



1. Technology ensure the quality satisfy international request.

2.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.

5. Our factory is 250000m2 for production and office.

6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
