10kva 5000kva Indoor 11kv 33kv Dry Type Power Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: SB11
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 SET
Detail Information
Rated Capacity: 30kva-5000kva Frequency: 50Hz / 60Hz
Rated Voltage: 10kv Vector Group: Dyn11 / Yyn0
Output Voltage: 200v/220/240/380v/400v/415v / 440v Cooling Method: ONAN
Coil Structure: Winding Type: Dry Type, Cast Resin
High Light:

11kv Dry Type Power Transformer

,

10KVA Dry Type Power Transformer

,

33kv Dry Type Power Transformer


Product Description

1. 10kva To 5000kva Indoor Type 11kv 33kv Dry Type Power Transformer



1. Three column amorphous core,adopting the invention patenttechnology which has Ultra low working noise and solve thoroughly high working noise;

2. The amorphous core retain has the characteristics of low ironloss and low magnetizing current when passing high frequencyflux, so it will not cause core saturation and posses good harmonic resistance;

3. Ultra low loss , energy and high electricity efficiency --- loss saving 70% compared with the traditional transformer no-Load electricity consumption;



2. Product Parameters

Rated Capacity
(KVA)
No-load Loss
SCB10 (W)
No-load Loss
SCBH15 (W)
Comparison
Load Loss
SCB10 (W)
Load Loss
SCB15 (W)
200
620
200


68%
2530
2530
250
720
230
2760
2760
315
880
280
3470
3470
400
980
310
3990
3990
500
1160
360



69%
4880
4880
630
1340
410
5880
5880
800
1520
480
6960
6960
1000
1770
550
8130
8130
1250
2090
650
9690
9690
1600
2450
760
11730
11730
2000
3050
1000

67%
14450
14450
2500
3600
1200
17170
17170

ScBH15
Silicon Steel Sheet ScBH 10
Review analysis
Operating
Temperature
70℃
100℃
Amorphous transformer core temperature is about 30℃ coil temperature is about 40℃; silicon steel transformer core temperature is about 45℃, coil temperature is about 50℃. The amorphous transformer can work under lowtemperature , has strong overload capacity, is much safer.
Insulation Cracking
Slow
Fast
Amorphous transformer has the property of low loss, producing less heat, low operating temperature, slow insulation cracking, high reliability, long working life.
Working Life
30 years reliable operation
20 years reliable operation
Harmonic
Resistance
Property not affected by the harmonic voltage
Causing higher iron loss and noise.
Iron loss is 1/10 of the silicon steel sheet transformer under high frequency, it can decrease iron loss caused by harmonic current when operating with harmonic voltage Taking advantage of transformer capacity to reduce the effect caused by harmonic, and reduce equipment investment cost, increase the system stability.


3. Photo

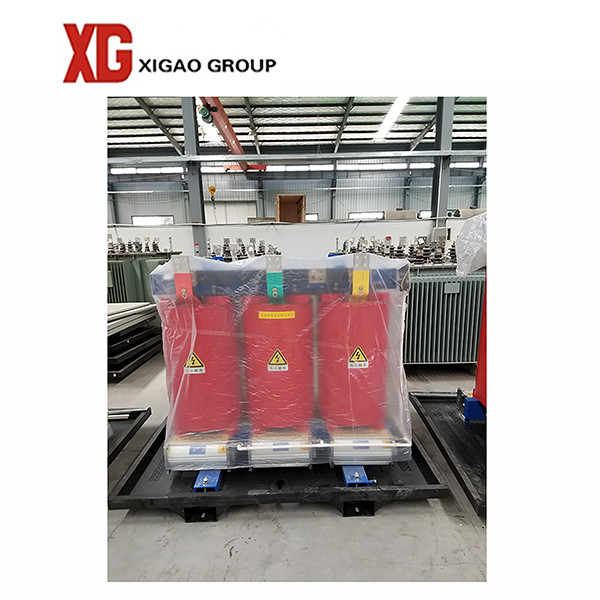

10kva 5000kva Indoor 11kv 33kv Dry Type Power Transformer 0

4. Factory

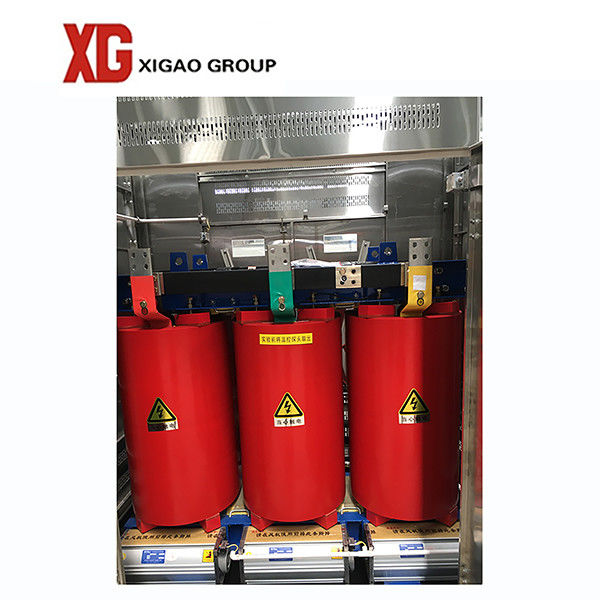

10kva 5000kva Indoor 11kv 33kv Dry Type Power Transformer 1

5. Delivery

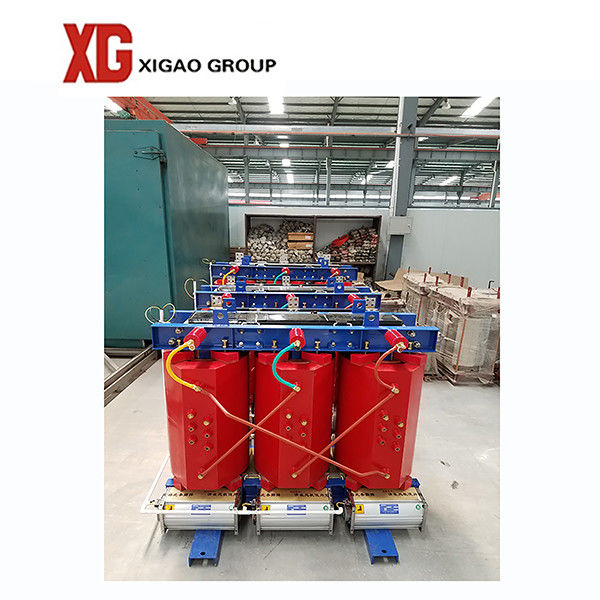

10kva 5000kva Indoor 11kv 33kv Dry Type Power Transformer 2

6. FAQ



1. For tender cooperation, it is welcome to discuss the detail in between.
2. Some type reports are provided accordingly.
3. Our factory is 250000m2 for production and office.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
6. Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
