| Place of Origin: | XIAN,CHINA |
|---|---|
| Brand Name: | XG |
| Certification: | ISO,CCC |
| Model Number: | SCB10 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 SETS |
| Primary Voltage: | 10kv-20kv | Usage: | Power |
|---|---|---|---|
| Phase: | Three | Coil Structure: | TOROIDAL |
| Rated Capacity: | 30kva-5000kva | Frequency: | 50Hz/60Hz |
| Rated Voltage: | 10kv | Vector Group: | Dyn11 / Yyn0 |
| High Light: | SCB10 Dry Type Power Transformer,YYN0 Dry Type Power Transformer,DYN11 Dry Type Power Transformer |
||

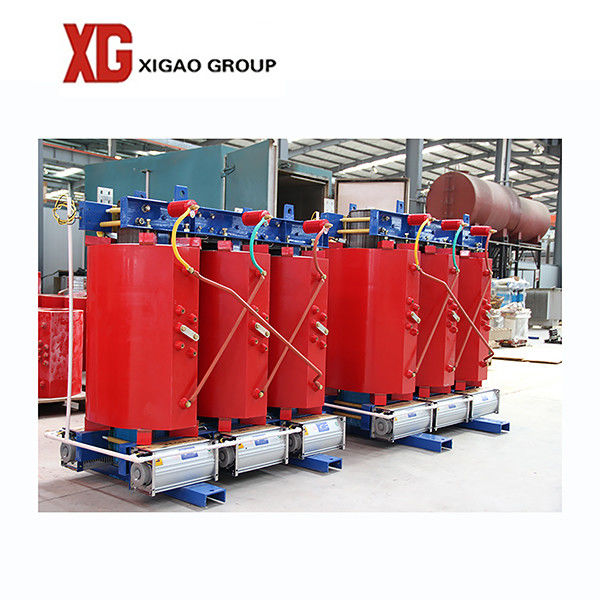

1. SCB10 10KV 20KV Dyn11 Yyn0 Cast Resin Dry Type Power Transformer
SCB10 10KV 20KV Dyn11 Yyn0 Cast Resin Dry Type Power Transformer can be used in high buildings,commerce centers,subways,airports,train stations,enterprises and power plants.They are especially suitable for installing and using in such places where strict fireproof requirements, including anti-combustible and anti-explosive,must be met.
2. Product parameter of power transformer
| Rated power (kVA) |
High Voltage (kV) |
H.V Tap range |
Low Voltage (kV) |
Connection Symbol |
Short-Circuit Impedance (%) |
No-load Loss (W) |
On-Load Loss (W) |
No-load Current (%) |
||||
| 9 Type | 10 Type | 11 Type | 9 Type | 10 Type | 11 Type | |||||||
| 30 | 6 6.3 10 10.5 |
±5% ±2×2.5% |
0.4 | Dyn11 Yyn0 |
4 | 130 | 110 | 100 | 600 | 600 | 600 | 2.1 |
| 50 | 170 | 150 | 130 | 870 | 870 | 870 | 2 | |||||
| 63 | 200 | 180 | 150 | 1040 | 1040 | 1040 | 1.9 | |||||
| 80 | 250 | 200 | 180 | 1250 | 1250 | 1250 | 1.8 | |||||
| 100 | 290 | 230 | 200 | 1500 | 1500 | 1500 | 1.6 | |||||
| 125 | 340 | 270 | 240 | 1800 | 1800 | 1800 | 1.5 | |||||
| 160 | 400 | 310 | 280 | 2200 | 2200 | 2200 | 1.4 | |||||
| 200 | 480 | 380 | 340 | 2600 | 2600 | 2600 | 1.2 | |||||
| 250 | 560 | 460 | 400 | 3050 | 3050 | 3050 | 1.2 | |||||
| 315 | 670 | 540 | 480 | 3650 | 3650 | 3650 | 1.1 | |||||
| 400 | 800 | 650 | 570 | 4300 | 4300 | 4300 | 1 | |||||
| 500 | 960 | 780 | 680 | 5150 | 5150 | 5150 | 1 | |||||
| 630 | 4.5 | 1200 | 920 | 810 | 6200 | 6200 | 6200 | 0.9 | ||||
| 800 | 1400 | 1120 | 980 | 7500 | 7500 | 7500 | 0.8 | |||||
| 1000 | 1700 | 1320 | 1150 | 10300 | 10300 | 10300 | 0.7 | |||||
| 1250 | 1950 | 1560 | 1360 | 12000 | 12000 | 12000 | 0.6 | |||||
| 1600 | 2400 | 1880 | 1640 | 14500 | 14500 | 14500 | 0.6 | |||||
| 2000 | 5 | 2830 | 2270 | 1940 | 17140 | 17140 | 17140 | 0.6 | ||||
| 2500 | 3350 | 2690 | 2300 | 20260 | 20260 | 20260 | 0.5 | |||||
3. Product advantage of power transformer
(1)Low loss, low noise,no oil.Small size, light weight, high efficiency.
(2)stable opable operation which cutting down large number of loss from energy GRID and minising operation charge,improving the industrial economic benefit.
(3)The oil-tank type is various and good-looking.

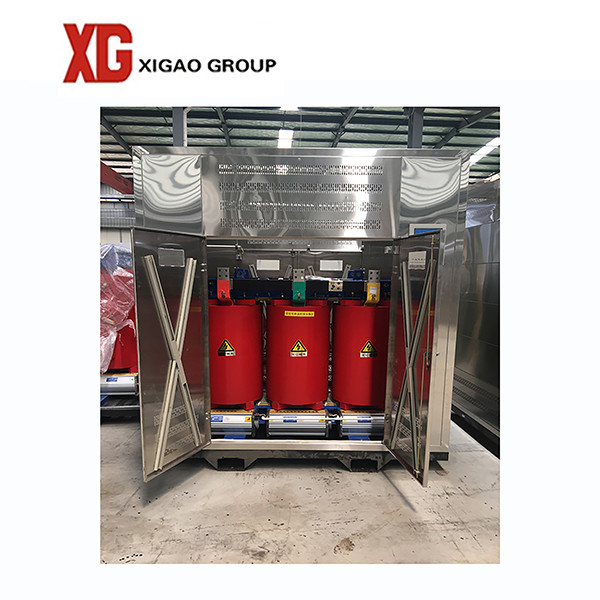

4. Product type of power transformer

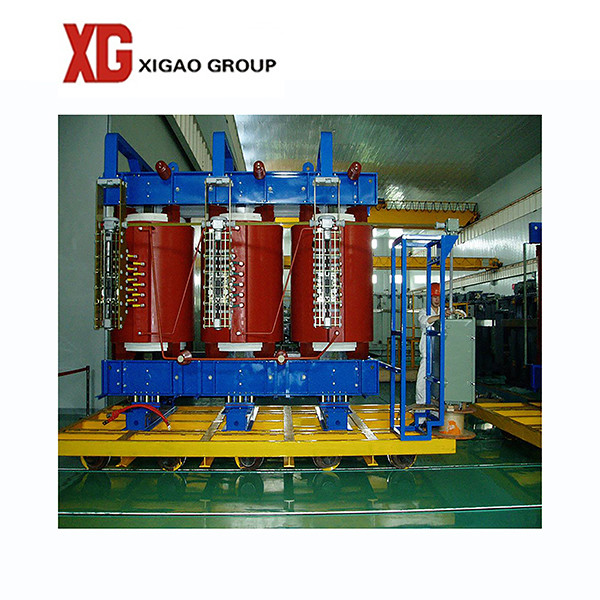

5. Factory show
6. Delivery
7. FAQ
1. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
2. Usually shipped by sea, small order or urgent order we can send you by air.
3. All our activities are accredited to ISO 14001:2015 and IEC standard.
4. Technology ensure the quality satisfy international request.
