RLS-36 7.2kV Galvanized Vacuum Sf6 Load Break Switch

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: RLS-36
Minimum Order Quantity: 1 set
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYA
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A,
Frequency: 50/60Hz Poles Number: 3
Medium: Vacuum Material: Galvanized Sheet And Accessories
Function: Switch On And Off Normal Load Current
High Light:

7.2kV Sf6 Load Break Switch

,

Vacuum Sf6 Load Break Switch

,

Galvanized Sf6 Load Break Switch


Product Description

1.RLS-36 SF6 Gas Load Break Switch Indoors Type

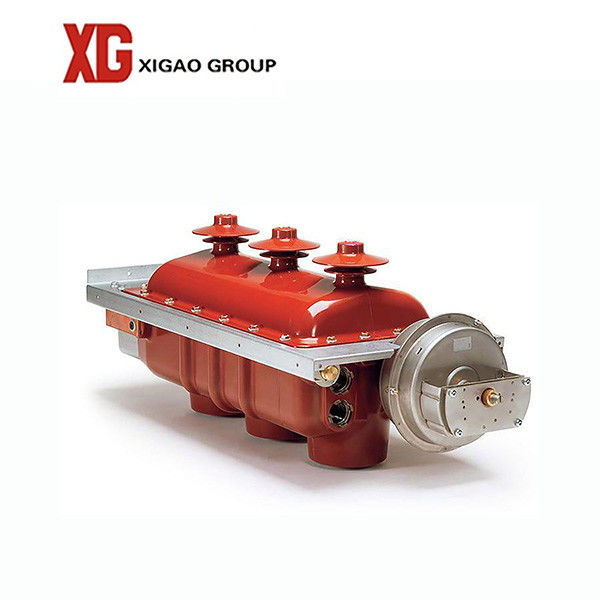

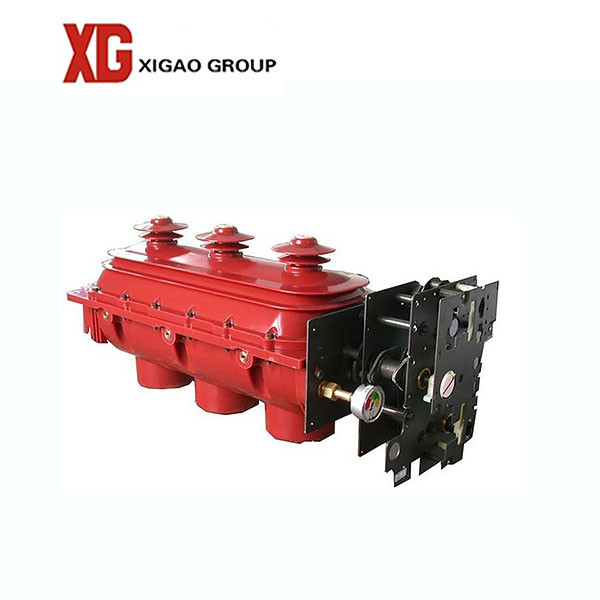

RLS-36 an indoor high-voltage SF6 load switch, an switchgear with the rated voltage of 36kV/40.5kV, adopted with SF6 gas as an arc-extinguishing and insulation medium, including the three contactors for switching-on and switching-off and to-ground, and is characteristic in its small volume, its convenient installation and operation and its the great adaptability with surroundings.

RLS-36 of an indoor high-voltage SF6 load switch and RLS-36 of SF6 load switch plus fuse combination can function to protect and control the electric equipments for power supply and transformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.

RLS-36 of an indoor high-voltage SF6 load switch and RLS-36 load switch plus fuse combination are complied with the standards of GB3804-1990, IEC60256-1,1997, GB16926, IEC60420 etc..





2. Service environment

(a) Air temperature

Maximum temperature: +40℃; Minimum temperature:-5℃

(b) Humidity

Monthly average humidity 95%; Daily average humidity 90% .

(c) Altitude above sea level

Maximum installation altitude: 2500m

(d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

(e) No frequent violent shake

3.Main technical specifications

No Item Unit Parameter
1 Rated voltage kV 36
2 Rated frequency Hz 50/60
3 Rated current A 630
4

1min Power frequency

withstand voltage

wet kV 95
dry kV 110
5 Lightning impulse withstand voltage kV 185/215
6 Rated short circuit breaking current (peak) kA 50
7 Rated active load and close circuit breaking current A 50
8 Rated transferring current A 1000
9 Rated short circuit making current (peak) kA 50
10 Rated cable(line) charging breaking current A 50 and 10
11 Cable charge breaking current in earthing fault A 20
12 Rated withstand current (peak) kA 50
13 Short time withstand current (2s) kA 20
14 Mechanism life times 2000



RLS-36 7.2kV Galvanized Vacuum Sf6 Load Break Switch 0

4. Factory show






5. Guarantee


6. FAQ

(1). How to order the products?

Send your product name, model and drawing and let us confirm the right one, and recommend and make a good offer.

(2). About lead time and shipping time?

Usually it is 3-10 days, if quantity is big, lead time will be extended.

(3)Life span of our XG brand?

Generally we promise two years quality guarantee, some products will be extended longer time for life span.
