VS1 Indoor High Voltage VCB 630A-5000A 12kv Vacuum Circuit Breaker Handcart Type

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: VS1
Minimum Order Quantity: 1 SETS
Price: USD300-1000
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Type: Indoor Model: VS1…….
Rated Voltage: 3.6KV 6.6KV 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A
Frequency: 50/60Hz Phase: 3 Phase
Medium: Vacuum Material: Galvanized Sheet And Accessories
High Light:

5000A 12kv Vacuum Circuit Breaker

,

5000A 2kv Vacuum Circuit Breaker

,

VS1 12kv vcb circuit breaker


Product Description

1.Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CNC
Model Number:
3P
Type:
Vacuum, handcart / Fixed / Side-mounted
Poles Number:
3
Rated voltage:
12KV
Rated frequency:
50Hz
Rated current:
630~5000
Mechanical life:
≥10000
Type model:
ZN63A-12(VS1)
Product Keywords:
vacuum circuit breaker(vcb)
Supply Ability
Supply Ability
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard packing
Please consult customer service personnel.
Port
Ningbo/Shanghai
Lead Time:






















Quantity(Units) 1 - 100 101 - 500 501 - 2000 >2000
Est. Time(days) 7 10 15 To be negotiated
2.Product Description

Professional factory vacuum circuit breaker(vcb) breaker 35kv 33 kv

China Factory VS1 Indoor High Voltage VCB 630A-5000A Handcart Type Vacuum Circuit Breaker 12kv3.Product Detail



Rated voltage 12KV
Rated frequency 50Hz
Rated current 630~5000
Mechanical life ≥10000
Type model ZN63A-12(VS1)
Type handcart / Fixed / Side-mounted
Product Keywords vacuum circuit breaker(vcb)

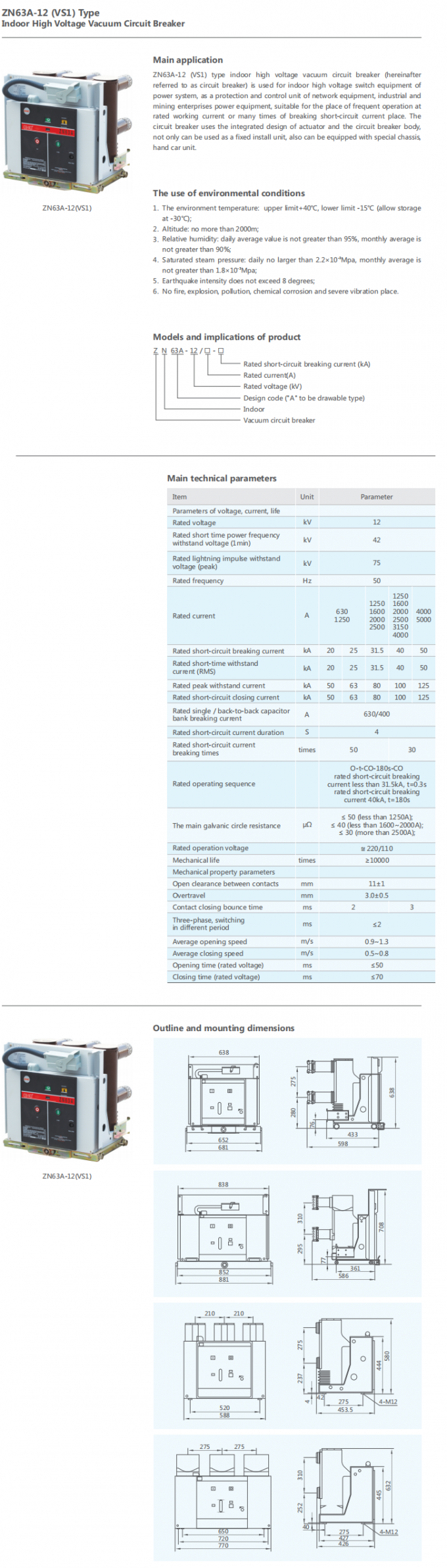

ZN63A-12 (VS1) type indoor high voltage vacuum circuit breaker (hereinafterreferred to as circuit breaker) is used for indoor high voltage switch equipment ofpower system, as a protection and control unit of network equipment, industrial andmining enterprises power equipment, suitable for the place of frequent operation atrated working current or many times of breaking short-circuit current place. Thecircuit breaker uses the integrated design of actuator and the circuit breaker body,not only can be used as a fixed install unit, also can be equipped with special chassis,hand car unit.

 4.Certificate:



VS1 Indoor High Voltage VCB 630A-5000A 12kv Vacuum Circuit Breaker Handcart Type 1



5.Service:



VS1 Indoor High Voltage VCB 630A-5000A 12kv Vacuum Circuit Breaker Handcart Type 2



6.Factory:



VS1 Indoor High Voltage VCB 630A-5000A 12kv Vacuum Circuit Breaker Handcart Type 3



7.FAQ:



1. Send the technical data, better for all useful information; we will make a good recommendation.

possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
