|Rated Voltage:||7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV||Rated Current:||400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A,|
|Medium:||Vacuum||Material:||Galvanized Sheet And Accessories|
|Certificate:||ISO CCC||Standard:||GB, IEC Standard|
|Function:||Control And Protection|
40.5kV VCB Circuit Breaker,
60Hz VCB Circuit Breaker,
60Hz 40.5kV Circuit Breaker Outdoor

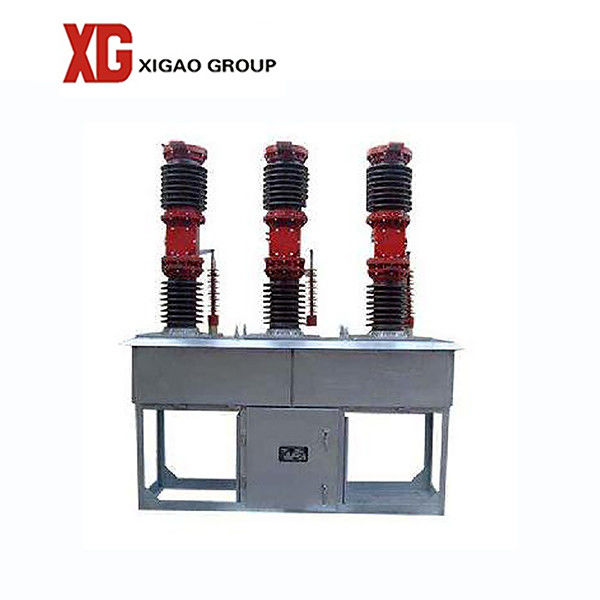

40.5 Series Vacuum Circuit Breaker Outdoor Protectors
ZW7-40.5 series of outdoor High Voltage Vacuum Circuit Breaker With Central Operating Mechanism are three phase,A.C 50(60) Hz outdoor high voltage distribution equipment with 40.5kV rated voltage ,which can be used to open or close loading current,over-loading current and short-circuit current,it is widely used in rural electrical network and comply with GB1984-2003 standard.
The overall structure of this product adopt porcelain insulator support type,the vacuum interrupter is installed inside the upper insulator,the lower insulator is used for support bottle,three phases are amounted on the same mechanism box,the moving end of vacuum interrupter is connected with operating mechanism through shaft and insulation lever.The operation is easy and convenient.
Applying ambient conditions
2.Ambient humidity:the average humidity of a day should be no more than 95%:the average humidity of a month should be no more than 90%.
3.Earthquake intensity:not exceed 8degrees.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa:the average pressure of a month should be no more than 1.8kPa.
5.The height above sea level:1000m.
6.Air filthy degree: III degrees.
7.It should be installed in the places without fire,explosion,series fifth,chemical erosion and violent vibration.
1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
