Vs1-24 24kv High Voltage Indoor Vacuum Circuit Breaker IEC Standard

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: VS1
Minimum Order Quantity: 1 SET
Price: USD300-1000
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Certificate: ISO CCC Standard: GB, IEC Standard
Function: Control And Protection Installation Location: Power Plants, Substations And Power Systems Etc
Warranty: 12 Months Package: Exporting Standard Package
Operation Type: Electric Or Manual Life Span: More Than 15 YEARS
High Light:

24kv Indoor Vacuum Circuit Breaker

,

Vs1-24 Indoor Vacuum Circuit Breaker

,

24kv high voltage vacuum circuit breaker


Product Description

Vs1-24 24kv High Voltage Indoor Vacuum Circuit Breaker



Description:

VCB-24 series solid-sealed indoor vacuum circuit breaker is an indoor high-voltage switchgear for three-phase power system with rated voltage of 24kV and frequency of 50 Hz. It is used as protection and control appliance due to vacuum circuit breaker. The special advantages are especially suitable for frequent operations requiring rated current or multiple short-circuit currents.

VCB-24 series solid-sealed indoor vacuum circuit breakers are fixedly mounted, mainly used for fixed switchgear. The circuit breaker can be used alone or in ring power supply, box transformer or various non- power supply system.



Technical data

NO Item Unit Technical Parameters
1 Rated voltage KV 24
2 Rated short-duration power frequency withstand voltage KV 65/79(Interphase, ground/fracture)
3 Rated lightning impulse withstand voltage KV 125/145(Interphase, ground/fracture)
4 Rated frequency Hz 50
5 Rated current A 630 1250

630 1250 1600

2000 2500 3150

630 1250 1600

2000 2500 3150 4000

6 Rated short-circuit breaking current KA 20/25 31.5 31.5
7 Rated short-time withstand current KA 20/25 31.5 31.5
8 Rated short circuit duration S 4
9 Rated peak withstand current KA 50/63 80 100
10 Rated short circuit closing current KA 50/63 80 100
11 Secondary circuit power frequency withstand voltage (1min) V 2000
12 Rated single / back to back capacitor group breaking current A 630/400(40kA:800/400)
13 Rated capacitor bank closing current KA 12.5 (frequency is not greater than)
14 Mechanical life TIMES 20000
15 Rated current breaking times (electrical life) TIMES 20000
16 Rated short circuit current breaking times TIMES 50(40KA≤30)
17 Dynamic and static contacts allow wear cumulative thickness MM 3
18 Energy storage time S ≤10
19 Contact opening distance MM 16±1
20 Overtravel   3.5±0.5
21 Contact closing bounce time MS ≤2(40KA≤3)
22 Three-phase split/closed period MS ≤2
23 Average opening speed (contacts are separated by -8mm) M/S 1.5±0.2
24 Average closing speed (8mm - contact closure) M/S 0.8±0.2
25 Main conductive loop resistance μΩ
≤50(630A)≤45(1250A)
≤40 (1600,2000A)≤35 (2500A or more)
26 Rated operation sequence   0-0.3s-Co-180s-Co



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Product photo:

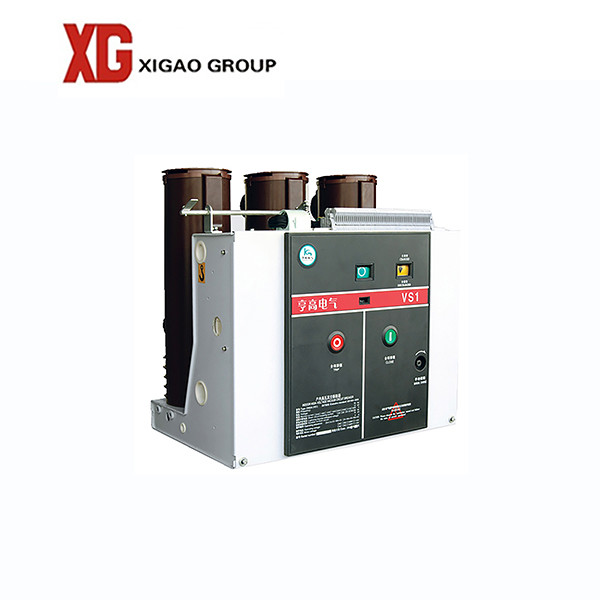

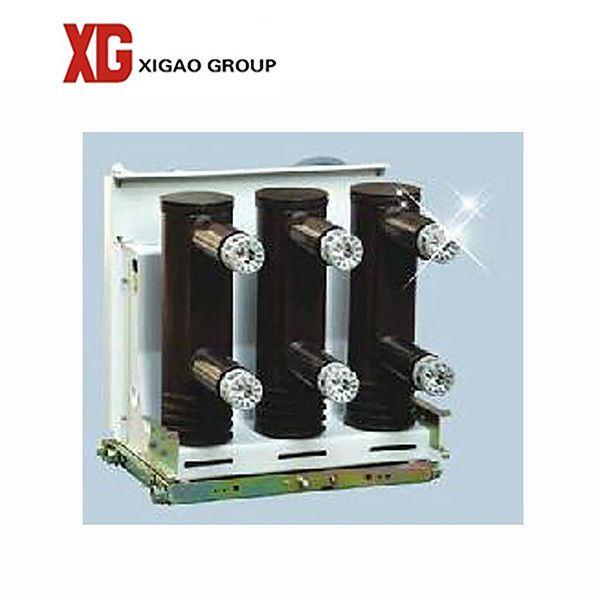

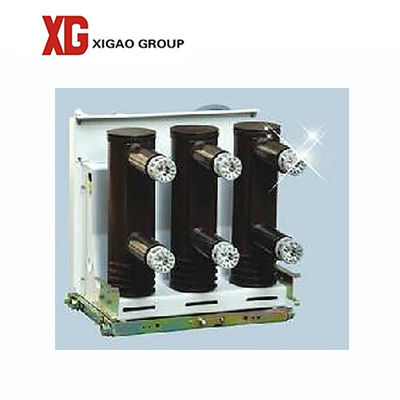

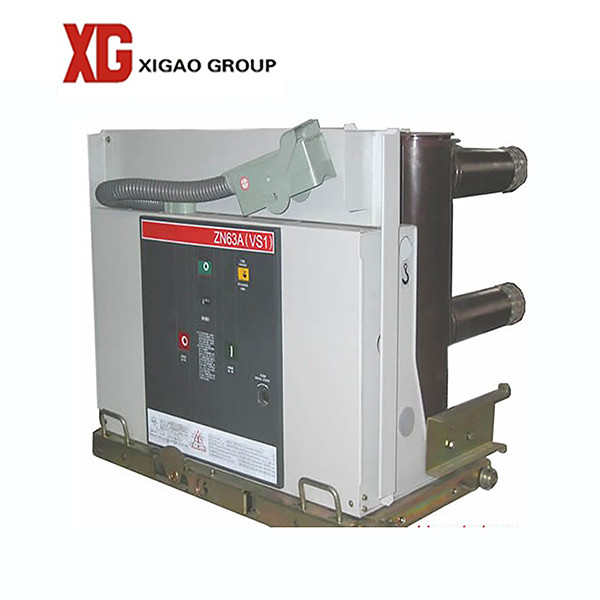

Vs1-24 24kv High Voltage Indoor Vacuum Circuit Breaker IEC Standard 0
