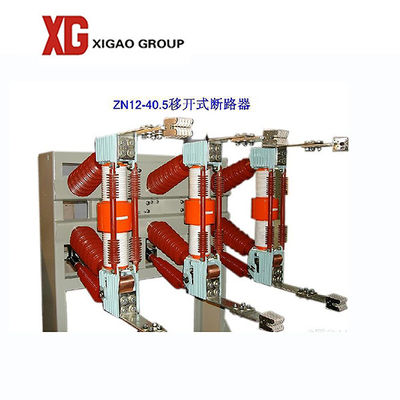

45KV 1600A 2000A Indoor Vacuum Circuit Breaker IEC Standard

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZN12
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Product Name: Indoor Vacuum Circuit Breaker Rated Voltage: 45KV
Rated Current: 1600A 2000A Frequency: 50hz/60Hz
Poles Number: 3 Phase: Three Phase
Medium: Vacuum Standard: IEC Standard
Type: Vacuum Circuit Breaker Indoor
High Light:

2000A Indoor Vacuum Circuit Breaker

,

45KV Indoor Vacuum Circuit Breaker

,

1600A Indoor Vacuum Circuit Breaker


Product Description

45KV 1600A 2000A Indoor Vacuum Circuit Breaker IEC Standard



1. Indoor Vacuum Circuit Breaker



1. Small contact distance

2. Short arcing time

3. After the arc is extinguished, the recovery speed of the contact gap medium is fast and good.

4. Low noise, suitable for frequent operation.

5. Small size and lightweight.



2. Indoor Vacuum Circuit Breaker Parameter list



no. item unit data
1 2 3 4 5
1 rated voltage kv 12 12 12 40.5 40.5
2 rated current A 1250 1600 2000 1600 2000
3 rated short circuit breaking current KA 31.5 31.5 31.5 25 31.5
4 Dynamic and stable current (peak) KA 100 100 100 80 100
5 Thermal stability of 4 s current 50 ka (3 s) KA 31.5 31.5 31.5 25 25
6 The rated short circuit close current (peak value) KA 100 100 100 80 80
7 Rated short circuit breaking current times TIME 50 30



3. Applicate of Indoor Vacuum Circuit Breaker



No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

Relative humidity: daily average of not more than 95%, month average of not more than 90%.



Altitude: not exceed 1000m.

Earthquake intensity: not more than ten.

Ambient temperature: not higher than +40 °C, not less than -15°C

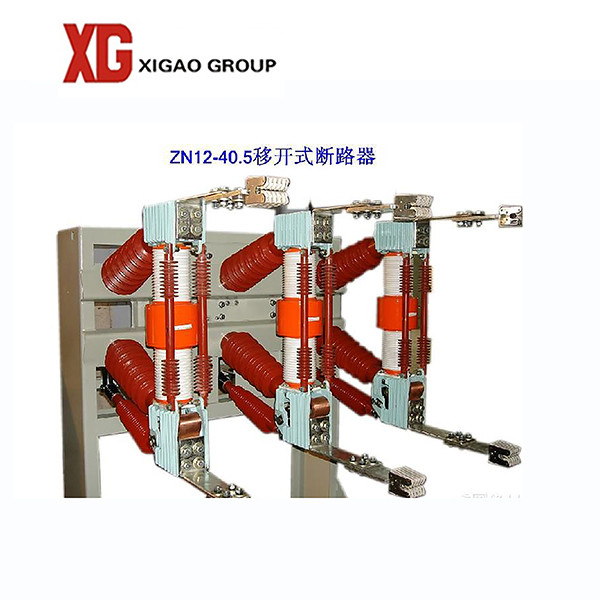

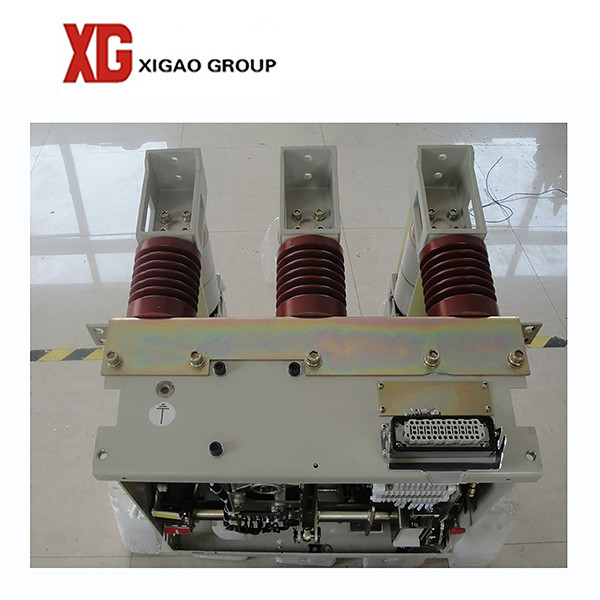

4. Photo and drawing






5. Factory



45KV 1600A 2000A Indoor Vacuum Circuit Breaker IEC Standard 1
