IEC 60265 Compact 12Kv Air Load Break Switch Three Contactors

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: SF6
Minimum Order Quantity: 1 SET
Price: USD 200-1000
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Type: Air Load Break Switch Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Poles Number: 3 Medium: Vacuum
Standard: IEC 60265 Certificate: ISO CCC
High Light:

12Kv Air Load Break Switch


IEC 60265 Air Load Break Switch


IEC 60265 load break switch 12kv

Product Description

IEC 60265 Compact 12Kv Air Load Break Switch three contactors

1. General description


Air Load Break Switch can corporate with the Distribution Automation System, and also isolate a faulted section of distribution line from the Control Center. A simple pole-mounting arrangement contribute to quick and low cost installation, and the switch can be operated manually with a electronic controller.




Compact and convenient
Simple structure
Reduced dimensions and weights,small size
Easy to operate
Convenient operation and installation

With Anti-corrosion epoxy resin enclosure
With status observing window
Extremely low leakage rate
Gas pressure meter is optional
with pressure relief channel



Perfect cost performance
long life span,at least 30 years
Especially low maintenance cost, 5000 times mechanical life
3. standards
IEC 60265, IEC 60420, GB3804, GB16926

We focus on every detai


4.Technical data


Item NO. Name Unit Technical parameters
Load break switch panel
1 Rated Voltage Un kV 12 24 36
2 Rated Frequency Hz 50 50 50
3 Rated Current A 630 630 630
4 Rated Load Breaking Current A 630 630 630
5 Rated Short Time Withstand Current(rms) kA 20 20 20
6 Rated Short Time Duration s 3 3 3
7 Rated Peak Withstand Current kA 50 50 50
8 Rated Closed Switch - Off Current A 630 630 630
9 Rated Cable Charging Breaking Current A 10 10 10
10 Rated Active Load Breaking Current A 630 630 630
13 Earthing Switch 2s Short Time Withstand Current kA 20 20 20
14 Rated Short-Circuit Current Making Times times 2 2 2
15 Rated Current Breaking Times times 10 10 10
16 Mechanical Endurance Load Break Switch times 3000 3000 3000
Earthing Switch times 2000 2000 2000
17 SF6 gas anual leakage rate≤   /year 0.10% 0.10% 0.10%
18 Rated Insulation Level Unit Technical parameters
1min Power Frequency withstand voltage(rms) On isolating distance kV 48 60 110
Phase to Phase kV 42 50 85
Phase to Earth kV 42 50 85
Lightning impulse withstand voltage(peak) On isolating distance kV 85 145 215
Phase to Phase kV 75 125 185
Phase to Earth kV 75 125 185




1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.


6.Competitive Advantages


1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


7.Product photo:

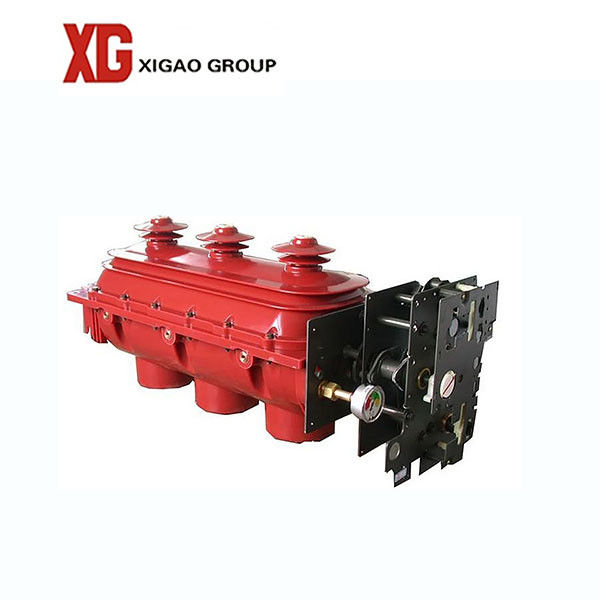

IEC 60265 Compact 12Kv Air Load Break Switch Three Contactors 0
