Vacuum 36kV 40.5kV Sf6 Gas Load Break Switch Power Plants use

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: FLN36-36
Minimum Order Quantity: 1 SET
Price: USD 200-1000
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Name: Sf6 Gas Load Break Switch Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Material: Galvanized Sheet And Accessories Certificate: ISO CCC
Function: Switch On And Off Normal Load Current Installation Location: Power Plants, Substations And Power Systems Etc
High Light:

40.5kV Sf6 Gas Load Break Switch


36kV Sf6 Gas Load Break Switch


36kV load break switch sf6

Product Description

1.Product description

* Isolation of power equipment from the network
* For switching very small currents or where no significant change in voltage occurs across the terminals


2.Technical Specifications


No. Item Unit Data
1 Rated voltage kV 36
2 Rated Current A 630
3 Rated Frequency Hz 50/60
4 Rated short circuit current kA 20
5 Rated short time withstand current(3s) kA 20
6 Rated peak withstand current kA 50
7 Rated power frequency withstand voltage kV 95/110
8 Rated lightning impluse withstand voltage kV 185/215
9 Secondary loop 1 min power frequency withstand voltage kV 2

3.Environmental Conditions

1. Ambient temperature: not higher than +40 ºC, not less than -15 ºC (at -30 ºC to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Earthquake intensity: not more than 8 degree.
4. Wind pressure:≤700pa
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration




1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.


5.Competitive Advantages


1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


6.Product photo:

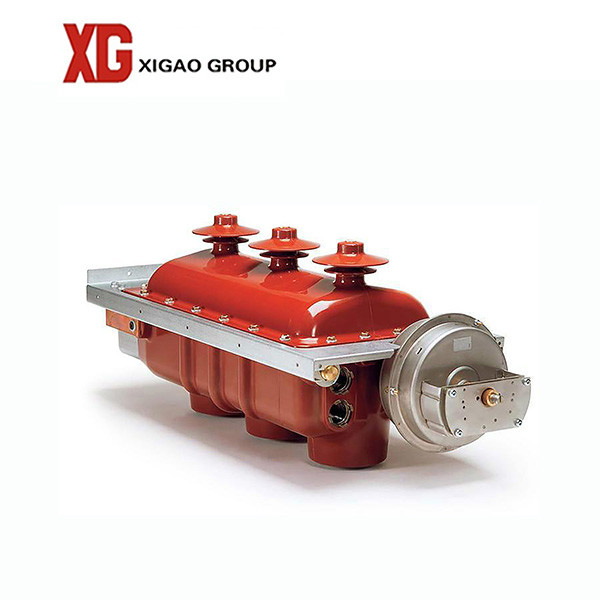

Vacuum 36kV 40.5kV Sf6 Gas Load Break Switch Power Plants use 0




1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
