1. exportd type 3 phase high voltage containerized distribution substation 10kv 33kv

outdoor prefabricated substation (American type) combined high voltage equipment, transformer and low voltage equipment into compact whole set power distribution equipment. It is mainly used for power receiving and distributing of urban high-rise buildings, mines, oil filed, and other temporary power usage. It has the advantages: Wide applicability, small volume, compact structure, maintenance free, removable. Compared with normal substation, it covers less area and reduces 10% - 15% designing & working load.

2. Paremeters

No.	Item	Unit	High Voltage Equipment	Transformer	Low Voltage Equipment
1	Rated Voltage Ue	KV	7.2/12	6/0.4 10/0.4	0.4
2	Rated Capacity Se	KVA		200~2500 50~800	Max:2*1250
3	Rated Current Le	A	200~630	144/3600	100~3000
4	Rated Breaking Current	A KA	Load switch 400~630 Depends on Fuse		15-63
5	Rated Short Time Current(s)	KA	20(2) 12.5(4)		151 301
6	Rated Peak Current	KA	31.5 50		30 63
7	Rated Making Current	KA	31.5 50
8	Power Frequency Withstand Voltage (1min)	KV	30/42 Isolating distance 34/48	Oil-immersed:35/5min Dry-type:28/5min	<300v hour 2KV 300 600 hour 2.5kv
9	Lightning Impulse	KV	60/75 Isolating distance 75/85	75 75
10	Equipment Voice Level	dB		Oil-immersed:<55 Dry-type:<65
11	Protection Level			IP23D
12	Size	Decided by electrical equipment and transformer

3. Appliaction

YBM&YBP series prefabricated substation is the package unit including high-voltage devices, transformer, low voltage transformer and other devices.
It can be used in high-rise buildings, urban and rural construction, luxury villa, square, high and new technology development zone, medium factory, mine and oil field.
It can be used for the distribution of electric energy in the distribution system.
YBM&YBP has the feature of strong of complete set, small in size, compact in structure, safe operation, convenient maintenance.
Compared with the same capacity box type prefabricated substation, it only occupies one tenth or one fifth of the space, which greatly reduces the design work and construction work.

4. Photo and drawing

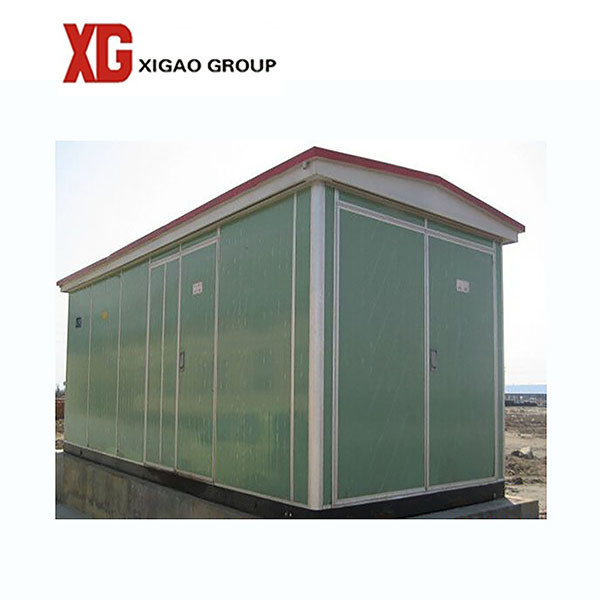

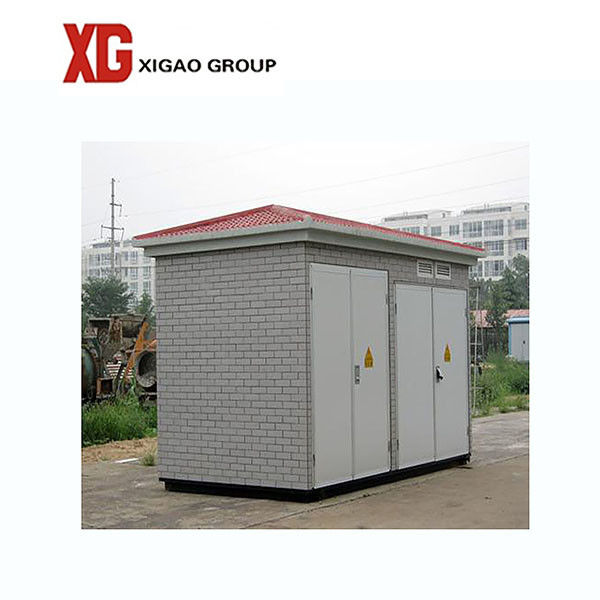

500kva transformer substation prefabricated substation.png

5. Factory strength

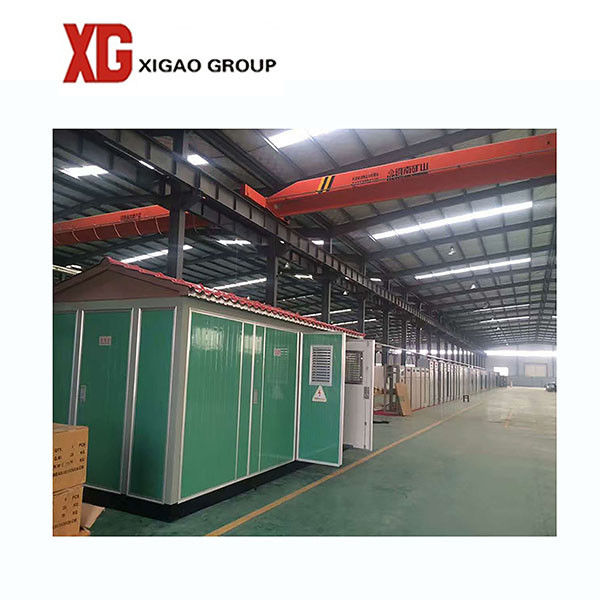

3 Phase High Voltage Containerized Power Distribution Substation 1

6. Delivery deversification

7. FAQ
1. Some type reports are provided accordingly.
2. Our factory is 250000m2 for production and office.
3. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
