Detail Information

Application:	Outdoor	Standard:	IEC/GB
Function:	Transmission, Distribution, Electric Energy Conversion And Consumption	Installation Location:	Power Transformer Substation, Power Plants, Substations And Power Systems
OEM:	Yes	Package:	Exporting Standard Package
MOQ:	1set	Life Span:	More Than 15 YEARS
High Light:	33KV High Voltage Switchgear , 11kV Electric Transformer Substation , 33KV Electric Transformer Substation

Product Description

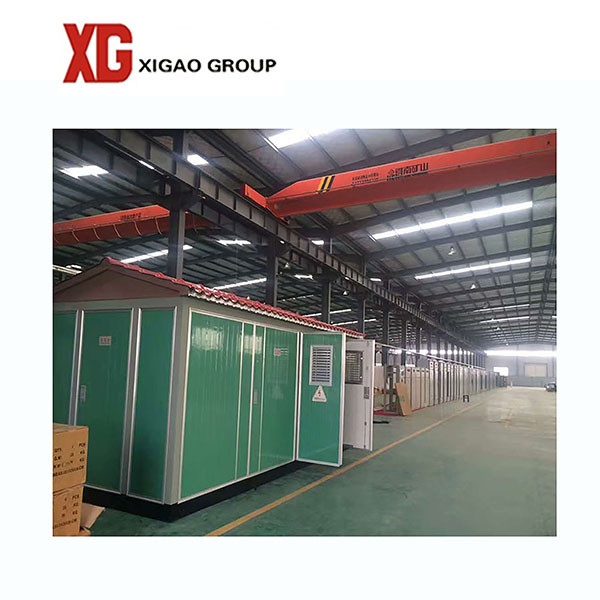

1. YB series 11kV 33KV High Voltage Switchgear Electric Transformer Substation

Compact transformer(also can be called as Compact Substation, Prefabricated Substation) is suitable for business centers, schools, substations and etc, which can be matched flexibly, transported, installed and maintained easily. Also, it can save the space.

2. Product Features

▶ Save the space

▶ short installation period

The on site installation only takes 6 steps: fix the position, HV incoming terminal wiring, protection setting verifying, transmission tests, commissioning, and etc.

▶ low cost Compact transformer can help increase the quality of electricity feeding with reasonable cost.

▶ complete insulation structure Compact transformer includes HV and LV switchgear, transformer, circuit breakers and other devices without exposed live part in complete insulation structure to avoid electric shock risk and enhance safety level.

▶ flexible combination method Each Compact Transformer is a independent system, which varies the combination method.

▶ stable and reliable performance The enclosure of our Compact Transformer is made up of Al-Zn alloy coated steel, with inner aluminium alloy shrouding and fireproofing materials. The fans and dehumidifying device can also be installed inside it. The compact transformer is fit for both indoor and outdoor conditions.

▶ High degree of automaticity

▶ factory prefabricated

Our Compact Transformer is well installed and debugged before delivery, which help you save the time and make things easier.

3. Photo

4. Delivery

YB 11kV 33KV High Voltage Switchgear Electric Transformer Substation 1

5. FAQ

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.

Tag:

Place of Origin:	XIAN,CHINA
Brand Name:	XG
Certification:	ISO,CCC
Model Number:	YB

Minimum Order Quantity:	1 SET
Packaging Details:	WOODEN CASE
Delivery Time:	7-15 DAYS
Payment Terms:	L/C, D/A, T/T, D/P
Supply Ability:	500 SET
