High Voltage 33KV 11kV Power Electrical Distribution Substation

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: YB
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15DYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Outdoor, Metal Clad
Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A….
Frequency: 50/60Hz Protection Level: IP4X Or Others Request
Phase: 3 Material: S.S Steel Or Galvanized Sheet
High Light:

33KV Electrical Distribution Substation

,

11kV Electrical Distribution Substation

,

XG Electrical Distribution Substation


Product Description



1. High Voltage 33KV 11kV Power Electrical Mini Distribution Substation Compact substation



Compact substation



2. Description:



Compact substation is a prefabricated, type tested as per latest IEC standard and arc tested assembly comprising an enclosure containing medium voltage switchgear / ring main unit, distribution transformer, low voltage switchgear / distribution board, connections and auxiliary equipment to receive and distribute electrical power in grid networks. It's supplied from our company as a single unit, and the careful exterior design and reduced dimensions minimize its visual impact in comparison to a conventional built distribution substation.



3. Construction:



Enclosure:

1. Prefabricated, rigid and self-standing on concrete plinth or base.

2. Totally enclosed and maintenance free.

3. The enclosure is constructed with prefabricated mild steel / metal housing.

4. The metal base is made of welded galvanized iron steel channel material to ease transportation / installation and ensure rigidity.

5. Louvers or ventilation opening are provided to allow natural cooling inside enclosure.

6. Weather and vermin proof. Doors are equipped with pad lock along with sealing arrangement.

7. Provide maximum safety in public area.

8. Suitable for any climate and environment change.



4. Standards applied:



1). IEC 62271-202:2006: High-voltage switchgear and controlgear Part 202: High-voltage / low-voltage prefabricated substation

2). GB 17467-2010: High-voltage / low-voltage prefabricated substation

3). DL/T 537-2002: High-voltage / low-voltage prefabricated cubical substation





5. Photo

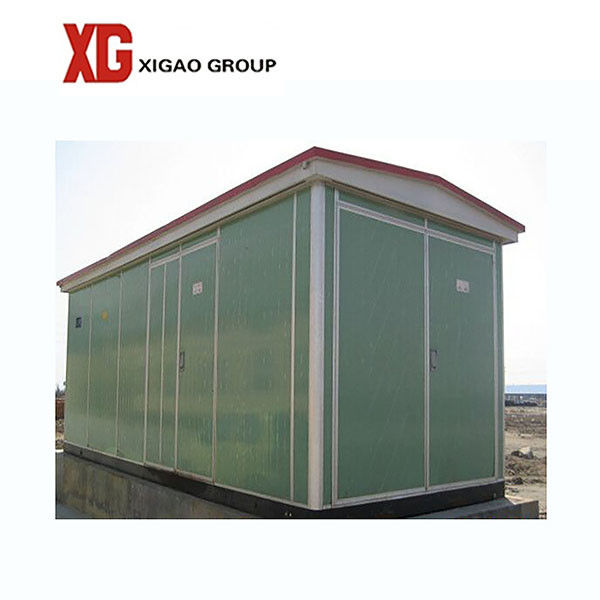

High Voltage 33KV 11kV Power Electrical Distribution Substation 1



6. Delivery

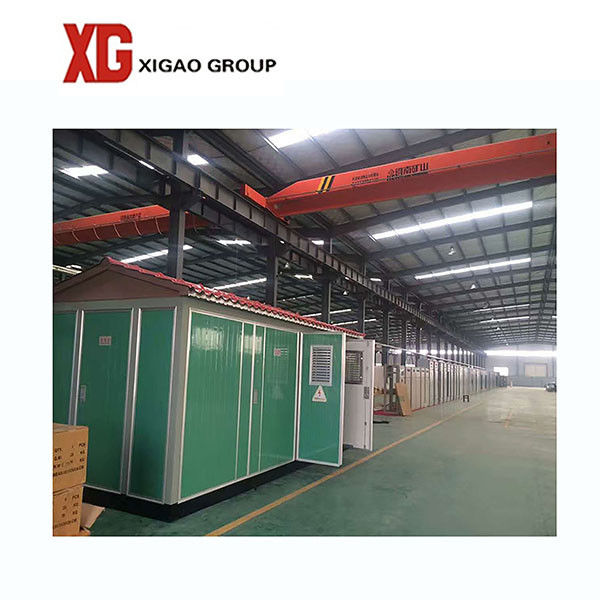

High Voltage 33KV 11kV Power Electrical Distribution Substation 2
