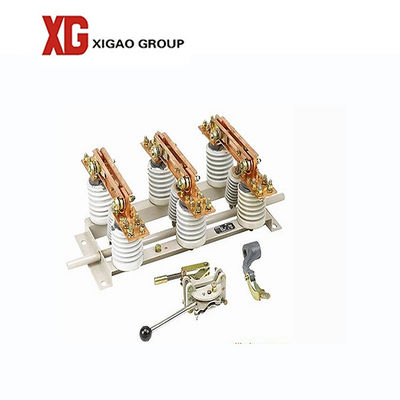

GN19-12 6.6kv 7.2kv 12kv 24kv High Voltage Disconnect Switch

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO14001 BS OHSAS18001
Model Number: GW1…….
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 7-15 days
Payment Terms: L/C, T/T
Supply Ability: 2000 SET/month
Detail Information
Phase: 3 Phase Or Single Phase Function: Dbreak Or Switch The Line
Installation Location: Power Plants, Substations And Power Systems Etc OEM: Yes
High Light:

24kv High Voltage Disconnect Switch

,

12kv High Voltage Disconnect Switch

,

GN19-12 High Voltage Disconnect Switch


Product Description

GN19 type 6kv 7.2kv12kv indoor Disconnector Switch isolator with manual operation mechanism



Product Description



GN19 type 6kv 7.2kv12kv indoor Disconnector Switch isolator with manual operation mechanism

1. GN19-12KV 24KV 1250A 2500A Disconnecting Switch



GN19-12(DR) indoor HV disconnect switch applies to power system of nominal voltage below 12kv AC 50/60HZ. It is equipped with CS6-1 manual-operating mechanism and is used to break and make cuicuit under no-load. There are additional pollution type, high-altitude type and power indicating type.



2. Parameter list of Disconnecting Switch



No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 400-1250



3. Product feature of Disconnecting Switch



Product Feature

· Good compatibility

· Reliable performance

· Free maintenance and long service life

· Suitable for occasions with frequent operation.

Working Conditions

· Altitude: ≤2000m

· Earthquake intensity: ≤8 degree

Ambient temperature: -10℃~ +40℃

· Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%; daily average saturated vapor pressure ≤2.2KPa; monthly average value ≤1.8KPa

· The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution.



4. Photo and drawing








5. Factory strength



GN19-12 6.6kv 7.2kv 12kv 24kv High Voltage Disconnect Switch 1





6. Certificate



GN19-12 6.6kv 7.2kv 12kv 24kv High Voltage Disconnect Switch 2





7. Delivery and diversifition



GN19-12 6.6kv 7.2kv 12kv 24kv High Voltage Disconnect Switch 3





8. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.
