GCK 0.4KV 4.16KV 6.6KV Low Voltage Withdrawable Switchgear Cubicle

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: GCK...
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN BOX
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A….
Frequency: 50/60Hz Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
High Light:

GCK Switchgear Cubicle

,

6.6KV Switchgear Cubicle

,

6.6KV Withdrawable Switchgear


Product Description

1. GCK Type indoor 0.4KV 4.16KV 6.6KV low-voltage withdrawable switchgear cubicle



GCK type low voltage switchgear (hereinafter referred to as the device) is suitable for AC 50Hz, rated working voltage 400V, rated current 4000A and below the low-voltage power grid, for power generation, transmission and distribution system as dynamic lighting, power conversion, Protection and Control and other occasions. All types of devices through pilot projects (TTA) and National Compulsory Certification (CCC), and after a long trial run assessment.



2. Parameter list



Type Items Standards








GCK1
Standards GB7251-2005,JB/T9661-1999
Protection grade IP40,IP30
Rated working voltage (V) AC380
Frequency (HZ) 50
Rated insulation voltage (V) 660
Service conditions Installation Indoor
Altitude Maximum 2000m
Ambient temperature -50ºC~+40ºC, during storage and transport, minimum -30ºC
Relative humidity Maximum 85%
Control motor capacity (KW) 0.45~155
Mechanical life (times) 500

Rated current (A)
Horizontal bus bar 1600,3150
Vertical bus bar 630,1000,1250
Main circuit contactor connector 200,400,630
auxiliary circuit contactor connector 20
Power distribution circuit maximum current 630
incoming circuit 1000,1600,2000,2500
Rated short time withstand current (KA) Effective value 50,80
Peak value 105,176
Withstand voltage (V/1min) 2500



3. Surronundings condition



♦ Indoor installation.

♦ The ambient temperature is not higher than +40 °C, not less than -5 °C, and 24hs average temperature does not exceed the +35 °C.

♦ Air cleaner, the relative humidity at the highest ambient temperature of +40 °C not more than 50% in the lower temperature allows a higher humidity, as in +20 °C, relative humidity of 90%, and allow accidental temperature changes a small amount of condensation produced

♦ altitude does not exceed 2000m.

♦ Pollution degree: 3.

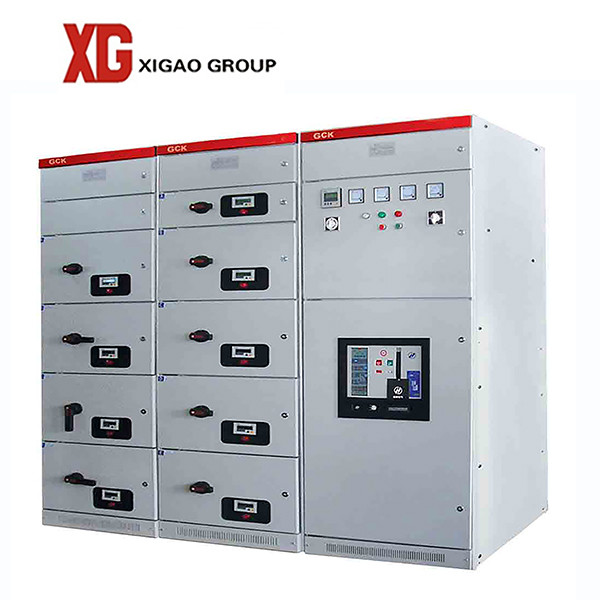

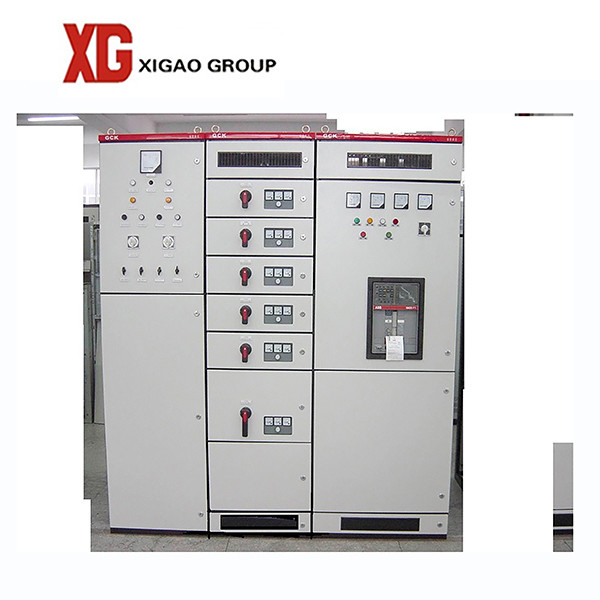

4. Photo and drawing of Switchgear





GCK 0.4KV 4.16KV 6.6KV Low Voltage Withdrawable Switchgear Cubicle 0

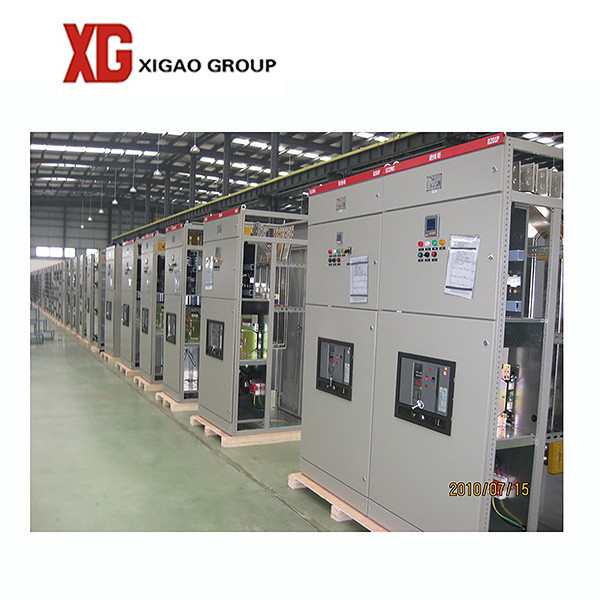

5. Factory photos



GCK 0.4KV 4.16KV 6.6KV Low Voltage Withdrawable Switchgear Cubicle 1

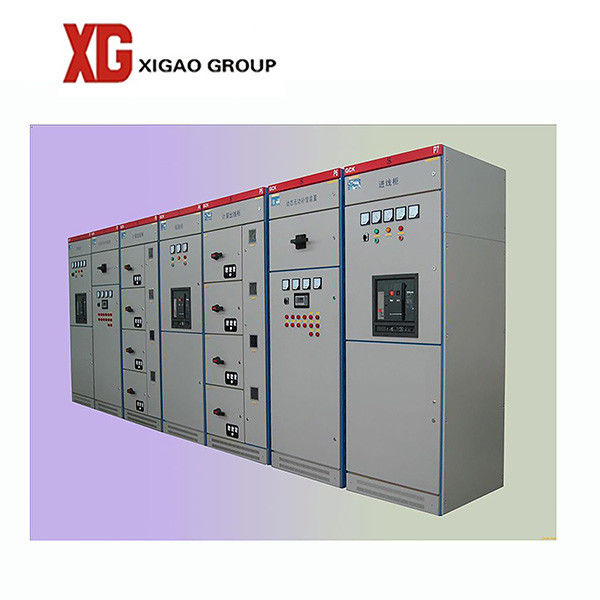

6. Delivery diversification





GCK 0.4KV 4.16KV 6.6KV Low Voltage Withdrawable Switchgear Cubicle 2





7.  FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
