GN2-40.5KV 36KV 35KV Outdoor High Voltage Disconnect Switch

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO
Model Number: GN2
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
System Voltage: 35kv 36kv System Current: 630a-3150a
Frequency: 50/60Hz Phase: 3 Phase Or Single Phase
Material: Galvanized Sheet And Accessories Standard: GB, IEC Standard
Function: Break Or Switch The Line. Installation Location: Power Plants, Substations And Power Systems Etc
High Light:

GN2-40.5KV High Voltage Disconnect Switch

,

35KV High Voltage Disconnect Switch

,

36KV High Voltage Disconnect Switch


Product Description

1. GN2-40.5KV 36KV 35KV Outdoor High Voltage Disconnect Switch



GN2 Medium voltage fusible disconnect switch is a indoor type electric disconnect switch, rated voltage 12kV, three phase, AC 50-60Hz. Used for breaking and isolating the circuit, maintenance personnel can clearly see whether the circuit is separated, to ensure their safety.



2. Product Parameter



No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 400-5000A



3. Product feature



Altitude does not exceed 1000m.

Ambient air temperature: Maximum+40℃:Minimum: General Area-30℃,
Wind pressure does not exceed 700Pa.
Earthquake intensity does not exceed 8 degrees.
Working situation without frequent violent vibration.



4. Photo and drawing

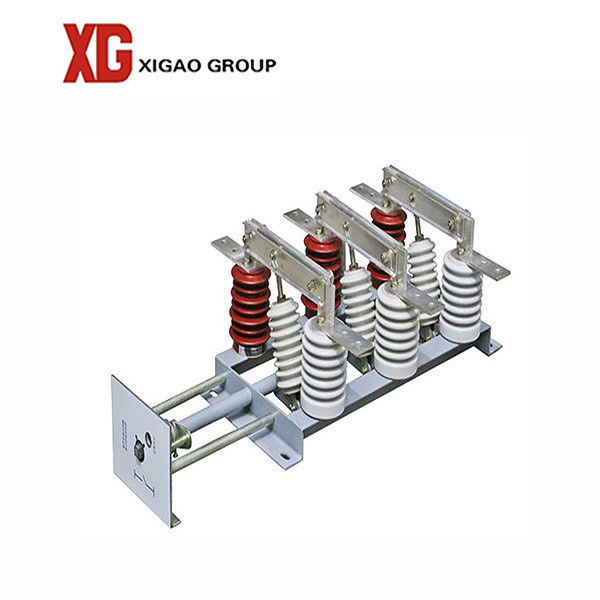

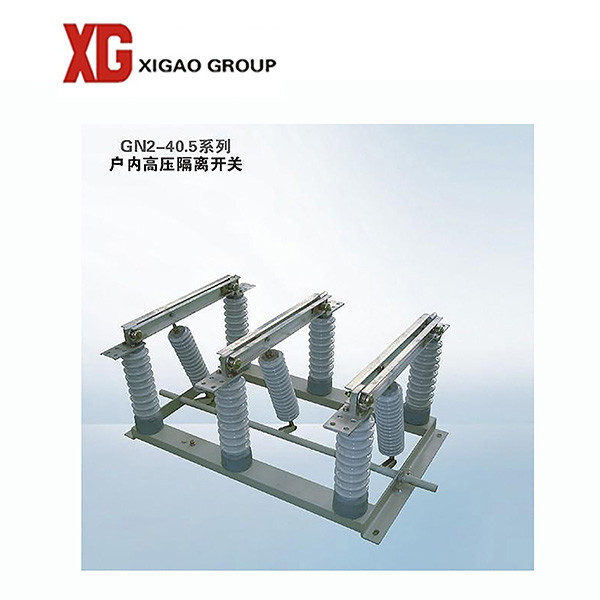

GN2-40.5KV 36KV 35KV Outdoor High Voltage Disconnect Switch 0



5. Factory

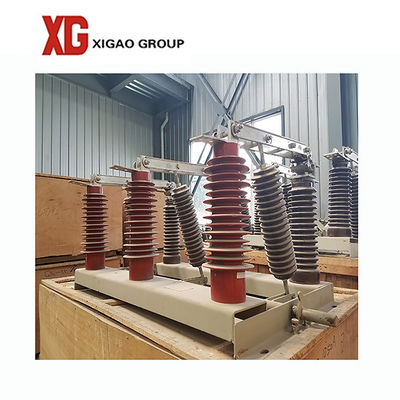

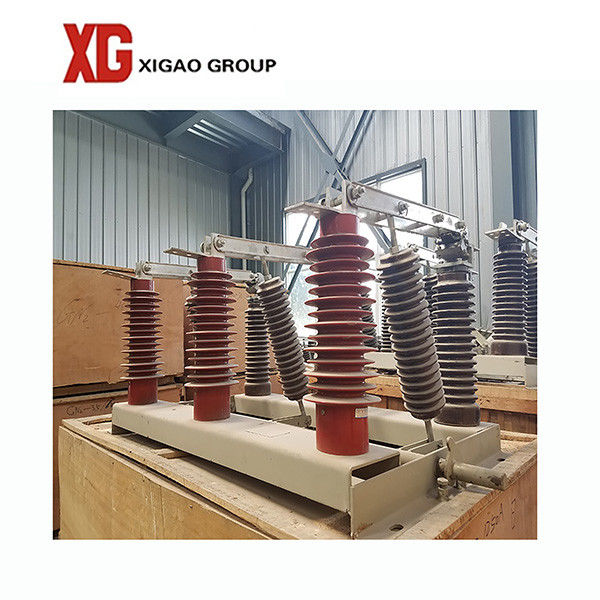

GN2-40.5KV 36KV 35KV Outdoor High Voltage Disconnect Switch 1





6. Delivery



GN2-40.5KV 36KV 35KV Outdoor High Voltage Disconnect Switch 2
