GN19-12KV 24KV 1250A 2500A High Voltage Disconnect Switch

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: GN19
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Nominal Voltage: 11kv 12kv Pole: 3
Phase: 3 Standard: GB, IEC Standard
Warranty: 12 Months Operation Type: Electric Or Manual
Function: Break Or Switch The Line. Installation Location: Power Plants, Substations
High Light:

GN19-12KV High Voltage Disconnect Switch

,

1250A High Voltage Disconnect Switch

,

2500A High Voltage Disconnect Switch


Product Description

1. GN19-12KV 24KV 1250A 2500A High Voltage Disconnect Switch



GN19-12(DR) indoor HV disconnect switch applies to power system of nominal voltage below 12kv AC 50/60HZ. It is equipped with CS6-1 manual-operating mechanism and is used to break and make cuicuit under no-load. There are additional pollution type, high-altitude type and power indicating type.



2. Parameter list



No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 400-1250




3. Product feature



Product Feature

· Good compatibility

· Reliable performance

· Free maintenance and long service life

· Suitable for occasions with frequent operation.





4. Photo and drawing

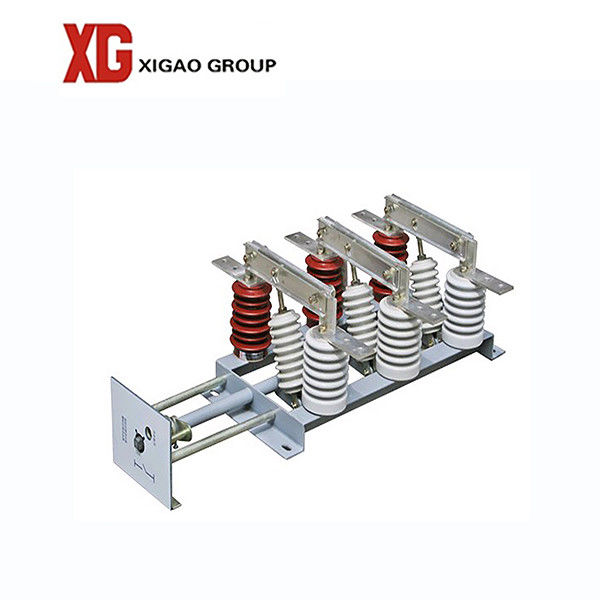

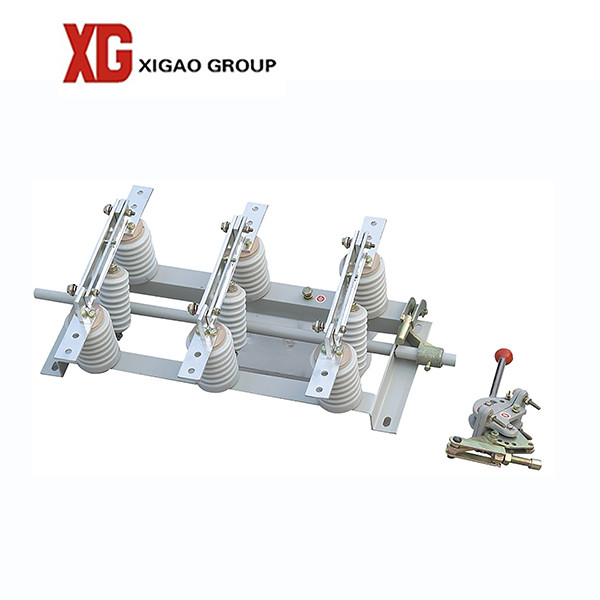

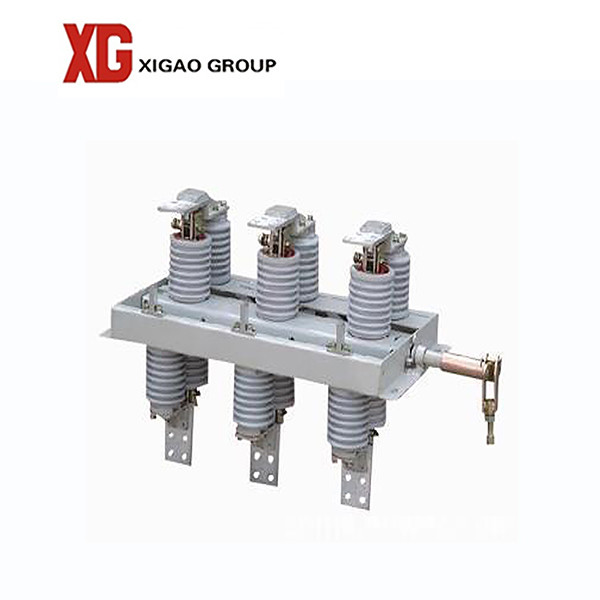

GN19-12KV 24KV 1250A 2500A High Voltage Disconnect Switch 1



5. Factory



GN19-12KV 24KV 1250A 2500A High Voltage Disconnect Switch 2



6. FAQ



1. Technology ensure the quality satisfy international request.

2.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.

5. Our factory is 250000m2 for production and office.

6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
