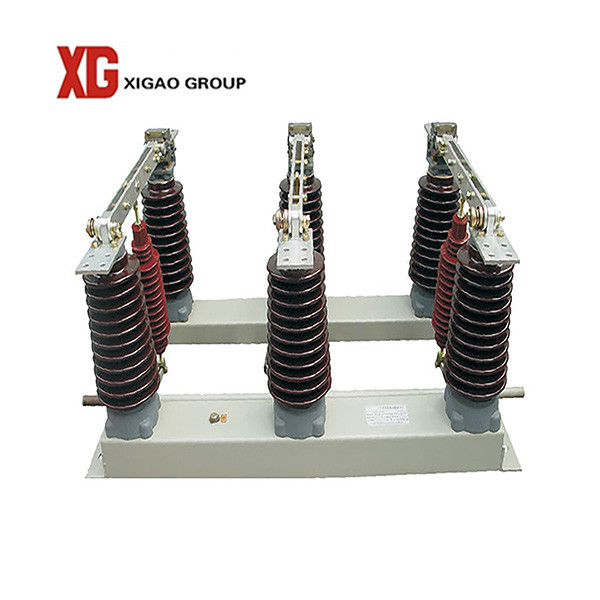

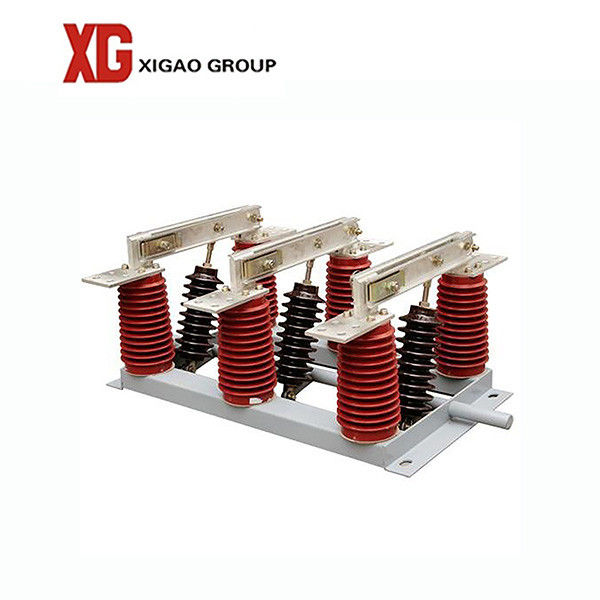

GN27-12 11kv 12kv 13.8kv 24kv High Voltage Disconnect Switch

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: GN27
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Life Span: More Than 15 YEARS Standard: GB, IEC Standard
Working Temperature: -45℃ To +40℃ Package: Exporting Standard Package
OEM: Yes Warranty: 12 Months
Function: Break Or Switch The Line.
High Light:

GN27-12 High Voltage Disconnect Switch

,

13.8kv High Voltage Disconnect Switch

,

24kv High Voltage Disconnect Switch


Product Description

1. GN27-12 type 11kv 12kv 13.8kv 24kv high voltage disconnect switch



GN27 Medium voltage fusible disconnect switch is a indoor type electric disconnect switch, rated voltage 12kV, three phase, AC 50-60Hz. Used for breaking and isolating the circuit, maintenance personnel can clearly see whether the circuit is separated, to ensure their safety.

The innovative structure of disconnector is also fabricated with an earthing switch. It's quality reaches a international IEC standard.



2. Product Parameter of  Disconnect Switch



No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 630-1250





3.  Product feature of GN27-40.5KV Disconnect Switch



(1). The altitude does not exceed 1000m.

(2).The ambient air temperature: Maximum+40℃:Minimum: General Area-30℃,
(3).The installation site of ordinary type isolator should be kept away from gas,
(4).smoke chemical deposition, salt-spray-fog, dust and other and corrosive maters

(5).The wind pressure does not exceed 700Pa.
(6).The earthquake intensity does not exceed 8 degrees.
(7).The working situation without frequent violent vibration.


4. Technical drawings of  Disconnect Switch






5. Factory show




GN27-12 11kv 12kv 13.8kv 24kv High Voltage Disconnect Switch 1























































6.























Delivery



GN27-12 11kv 12kv 13.8kv 24kv High Voltage Disconnect Switch 2



7. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
