GW1 24kv 12KV 11KV 10KV Automatic Isolator Disconnect Switch

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: GW1
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Standard: IEC/GB Function: Break Or Switch The Line.
Installation Location: Power Plants Warranty: 12 Months
OEM: Yes Package: Exporting Standard Package
MOQ: 1set Operation Type: Electric Or Manual
Rated Voltage: 11kv 12kv 24kv Rated Current: 200A-2000A
High Light:

GW1 Isolator Disconnect Switch

,

24kv Isolator Disconnect Switch

,

11kv Isolator Switch


Product Description

1. GW1 type 24kv 12KV 11KV 10KV Outdoor Automatic disconnect isolator switch



GW1 series outdoor high voltage isolator switch are high voltage switchgears of monopole structures and be applied for the connection and disconnection of circuit under voltage without loading. kNife switch with CS mould manual operating mechanism can prevent disoperation such as switching in etc. On line earthing wires. And the operating staff needs not to clients for heavily polluted areas and can make effective solutions on the pollution flashover during the operation of disconnecting switches.



2. Parameter data



No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 400-1250



3. Product feature



Stable and reliable performance

Good compatibility

Free maintenance and long service life

Suitable for occasions with frequent operation.

Ambient temperature: -10℃~ +40℃

Altitude: ≤2000m

Earthquake intensity: ≤8 degree

The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution.

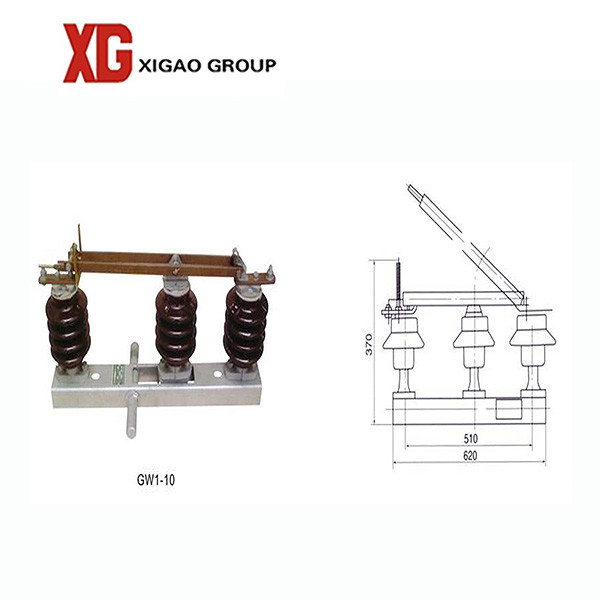

4. Technical drawings








5.  Factory

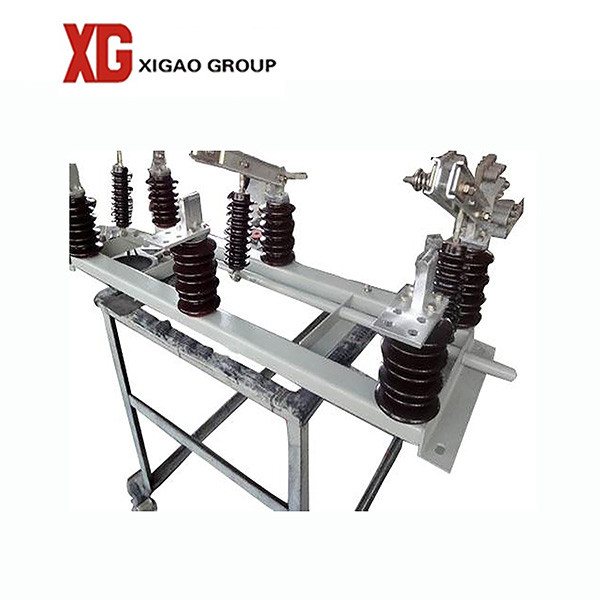

GW1 24kv 12KV 11KV 10KV Automatic Isolator Disconnect Switch 1



6. Delivery

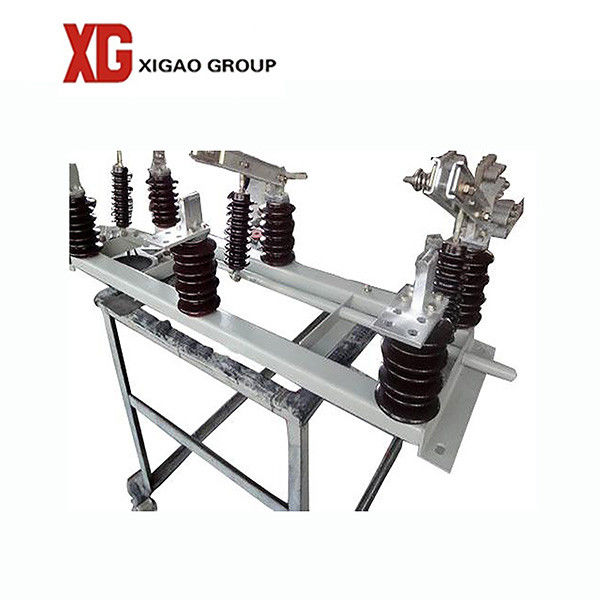

GW1 24kv 12KV 11KV 10KV Automatic Isolator Disconnect Switch 2



7. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
