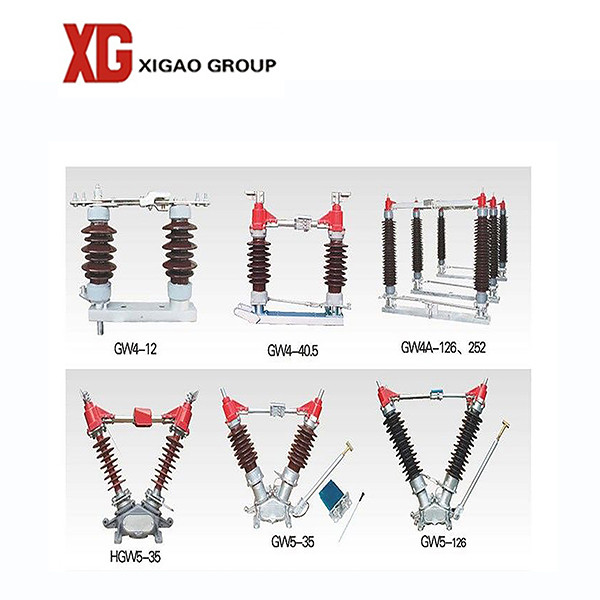

GW5A Outdoor 66kv 69kv 72.5kv High Voltage Disconnect Switch

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: GW5A
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Or Single Phase Material: Galvanized Sheet And Accessories
Standard: GB, IEC Standard Function: Break Or Switch The Line.
Installation Location: Power Plants Warranty: 12 Months
Rated Voltage: 66kv 69kv 72.5kv Rated Current: 200A-2000A
High Light:

GW5A High Voltage Disconnect Switch

,

66kv High Voltage Disconnect Switch

,

72.5kv High Voltage Disconnect Switch


Product Description

1. GW5A type outdoor 66kv 69kv 72.5kv disconnector switch disconnect switch



GW5 series outdoor high voltage isolator switch is suitable for three-phase AC 50Hz, 10kV/15kV/20kV rated voltage outdoor high-voltage electrical equipment. For high voltage transmission line non-load shifting, and the maintenance of high-voltage Busbar, electrical equipment such as circuit breakers and electrical isolation of live high voltage line. Can also be divided into a small capacitor and the inductor current.

Its structure design simple, and reasonable, used copper and the aluminum annex, and stainless steel tight firmware and the hot plating zinc base,



2. Product Parameter of Disconnect Isolator Switch



No. Item Unit Data
1 Rated voltage KV 12, 40.5, 72.5, 126
2 Max working voltage (KV) V 12, 40.5, 72.5, 126
3 Rated current A 630-1250





3. Product feature of Disconnect Isolator Switch



Free maintenance and long service life

Good compatibility

Stable and reliable performance

Suitable for occasions with frequent operation.





4. Technical detail of Disconnect Isolator Switch






5.  Factory

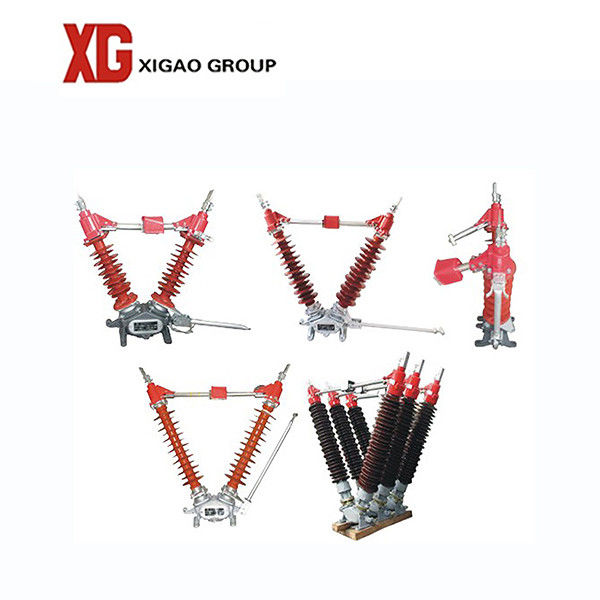

GW5A Outdoor 66kv 69kv 72.5kv High Voltage Disconnect Switch 1



6. Delivery

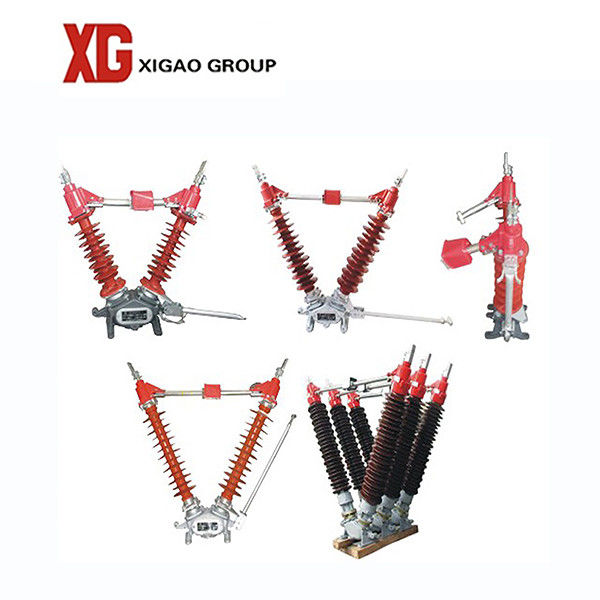

GW5A Outdoor 66kv 69kv 72.5kv High Voltage Disconnect Switch 2



7. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
