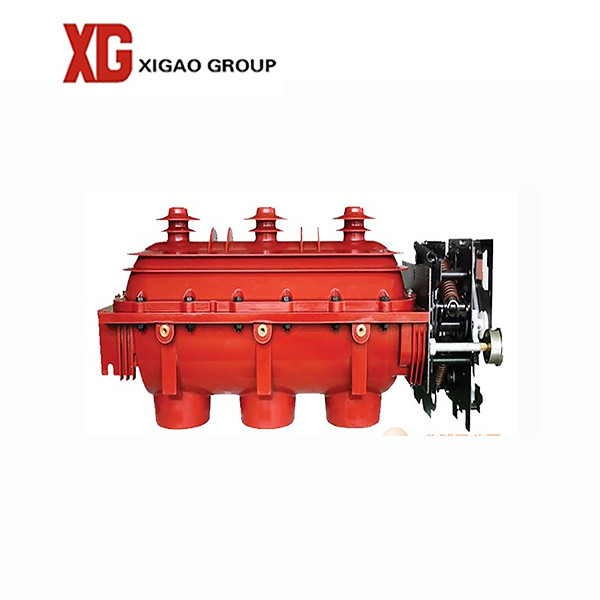

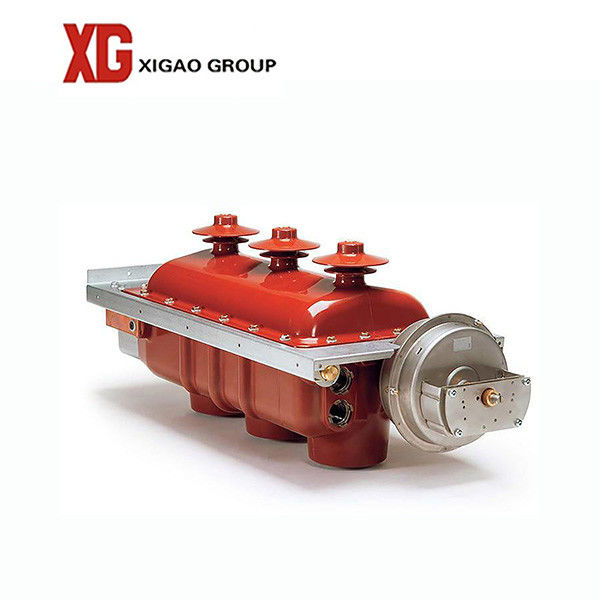

FLN36 3 Phase 12KV 10KV Indoor SF6 Load Break Switch

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: FLN36
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000SET
Detail Information
Type: Indoor Rated Voltage: 11kv 12kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A Frequency: 50/60Hz
Phase: 3 Phase Installation Location: Power Plants
Warranty: 12 Months Certificate: ISO14001 BS OHSAS18001
High Light:

10KV SF6 Load Break Switch

,

Indoor SF6 Load Break Switch

,

FLN36 Indoor Load Break Switch


Product Description

1. FLN 36-12 series 12KV 10KV indoor air load break switch in switchgear


FLN type indoor high voltage AC load breaker switch refer to international new technology and develop the switching equipment in according to the relevant standards in China’s electric power system. Its performance indicators in full compliance IEC420,694,129 and national standards GB3804-2004“3.6kV-0.5kV high voltage AC load breaker switch”GB1985-2004“high-voltage AC isolation switch and earthing switch”,GB/ T11022-1999“common technical requirements for high-voltage switchgear and control equipment standards“, This is the main switching element RMU. The load breaker switch is a collection multifunctional medium voltage switchgear of gates,sub-gate, earthing. In a fully sealed with strengthen the structure of the epoxy resin housing to filled with SF6 gas,0.05MPa , with the minimum parts to achieve the above three functions,to ensure product quality, improve reliability, maintenance-free. It can be safely run for more than 20 years in normal conditions.

2. Basic Functions And Features


1.Load breaker switch adapts double fracture, rotary movable contact structure, with the following three kinds of operating states: Closing,opening,earthing.
2.Using SF6 gas as an arc extinguishing and insulating medium, the main circuit seals by the upper and lower housing pouring epoxy resin, the conductive function is unaffected by external influences.
3.Good safety performance. If internal arcing occurs, the housing has an internal structure weak point, it will be rushed to open, followed by the cabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet, ensure that the switch
cabinet security checks.
4.Load breaker switch sets gates, opening, earthing switch three at one, filled with SF6 gas encapsulated in epoxy resin housing, three-position interlock,compact structure,high security and reliability.
5.Small size, light weight, maintenance-free, easy and safe to operate.



3. Technical data

Technical Name Unit Model
FLN36-12/630

FLN36-12D/125-50
switch-fuse combinations

1 Rated voltage KV 12
2 Rated Frequency Hz 50
3 Rated current Amp 630 125
4

Rated Insulation
Level

L min power-frequency
withstand voltage (KV)

42 48

Lighting impulse
withstand voltage(Peak) KV

75 85
5 Rated thermal current (2S) KA 20
6 Rated dynamic current KA 50
7 Rated short-circuit on-off current KA 25
8 Rated closed loop breaking current A 630
9 Rated active on-load breaking current A 630
10 Rated cable charger breaking current A 10
11 Rated short-circuit breaking current(peak) KA   50
12 Rated transfer current A 1700
13 Fuse type
14 Impact output energy J 1+0.5
15

Rated thermal current(2S)for
grounding switch

KA 20 2
16

Rated dynamic current (peak)for
grounding switch

KA 50

Maximum torque
operated manually

17

Rated short-circuit on-off current for
grounding switch

KA 50



4. Factory


FLN36 3 Phase 12KV 10KV Indoor SF6 Load Break Switch 0

5. Delivery


FLN36 3 Phase 12KV 10KV Indoor SF6 Load Break Switch 1

6. FAQ


1. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
2. Usually shipped by sea, small order or urgent order we can send you by air.
3. All our activities are accredited to ISO 14001:2015 and IEC standard.
4. Technology ensure the quality satisfy international request.
5.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
