Indoor SF6 Load Break Switch 7.2kV 12kV 17.5kV 24kV 36kV 40.5kV

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: SF6
Minimum Order Quantity: 1 SET
Price: USD200-1000
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 SETS
Detail Information
Type: Indoor Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Poles Number: 3 Medium: SF6
Material: Galvanized Sheet And Accessories Function: Switch On And Off Normal Load Current
High Light:

7.2kV SF6 Load Break Switch

,

12kV SF6 Load Break Switch

,

17.5kV SF6 Load Break Switch


Product Description

Indoor Load Break Switch Sf6

1.Product description

Its indoor high-voltage SF6 load switch and SF6 load switch plus fuse combination can function to protect and control the electric equipments for power supply and transformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.

All our load break switch is complied with the standards of GB3804-1990, IEC60256-1(1997), GB16926,IEC60420, etc.

2.Features

Adopt compact design schema with light & small volume;

High reliable type spring mechanism;

Provide a high table and advanced grade products;

Achieve free maintenance, long life requirement;

A widely available gas sealed pressure system;

3.Parameters:

Rated voltage: 12kV.
Rated current: 630A .

Rated frequence:AC50HZ.

1.Easy operation and installation

2.Connection combination is simple and convenient

3.Insulation and sealed structure,

4.Reliable interlock, compact design SF6 Gas Circuit Breaker

5.Ambient air temperature: -25°C~ +40°C

6. Altitude: ≤1000m

7.No operation in such places as subject to dust, smog, corrosive/flammable gas, vapor and salt pollution.

8.Relative humidity: Daily average ≤ 95%

                                  Monthly average ≤ 90%

9. Water vapor pressure: Daily average ≤2.2kPa

                                         Monthly average ≤1.8kPa

10.The external shocking and earthquake from the switchgear and control equipment could be neglected.

11. The amplitude of electromagnetic interference in the second system ≤1.6kV

4.Technical parameter

China Indoor AC High Voltage SF6 Gas Insulated Load Break Switch

5.Service:



1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



6.Competitive Advantages



1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

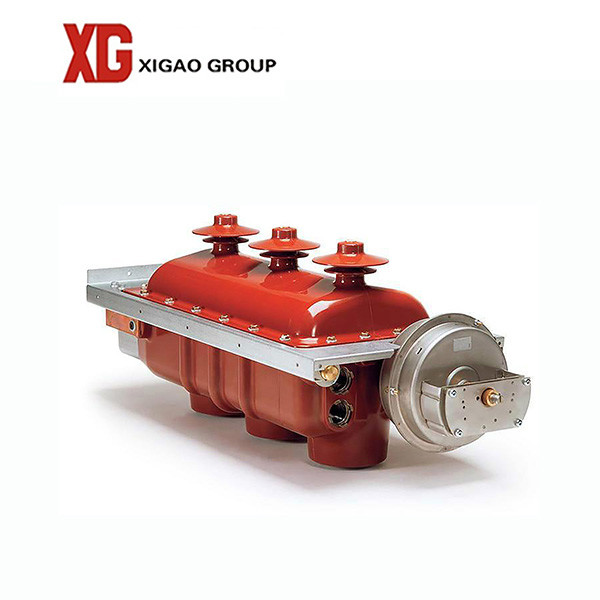

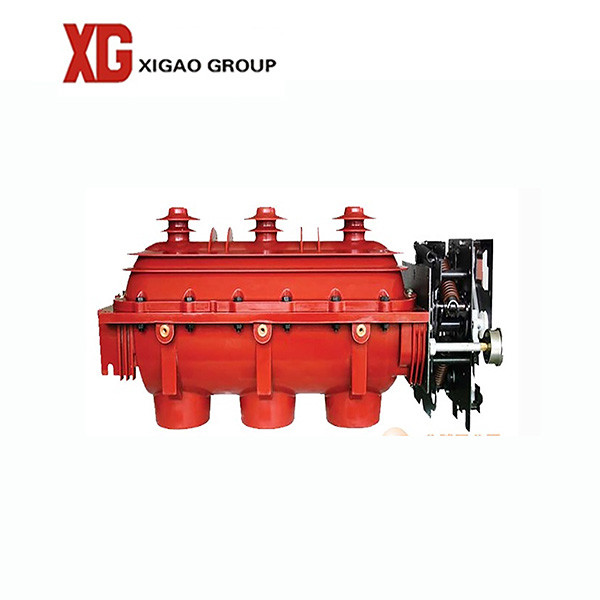

7.Product photo:



Indoor SF6 Load Break Switch 7.2kV 12kV 17.5kV 24kV 36kV 40.5kV 1



8.FAQ:



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
