24KV Indoor Sf6 Load Break Switch Medium Voltage Switchgear For RMU

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: FLN36
Minimum Order Quantity: 1 SET
Price: USD200-1000
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C
Supply Ability: 2000 SETS
Detail Information
Type: Indoor Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Poles Number: 3 Phase: 3 Phase
Material: Galvanized Sheet And Accessories Function: Switch On And Off Normal Load Current
High Light:

24KV Sf6 Load Break Switch

,

RMU Sf6 Load Break Switch

,

Medium Voltage Switchgear For RMU


Product Description

24KV Indoor Sf6 Load Break Switch / Medium Voltage Switchgear For RMU



1. Description

FLN36-12 indoor high-voltage AC SF6 load switch. This product has the characteristics of three-position arc extinguishing room with opening, closing, and grounding, and high fracture insulation. It is a new generation of high-voltage load switch widely used. City grid

2.Application

FLRN- 36 series SF6 load switch. It is small in size and light in weight, and is suitable for ring-shaped mainframes and box-type substations. It is widely used for power distribution of 10KV lines, which effectively avoids equipment phase loss operation.
3.Technical Parameter

Item Unit Data
FLN36-12D FLRN36-12D
Rated Voltage kv 12 12
Rated Frequncy hz 50 50
Rated Current a 630 125
Load switch rated short-time withstand current / rated short-circuit duration KA/S 20/3 _
Grounding switch rated short-time withstand current / rated short-circuit duration KA/S 20/2 _
Rated peak withstand current and rated short circuit closing current KA 50 125
Rated breaking current Active load start power A 630 _
Closed loop breaking current A 630 _
5% rated active load breaking current A 31.5 _
Breaking cable charging current A 10 _
Breaking the capacity of the no-load transformer KVA 1250 1250
Start transfer current A _ 1700
Expected short circuit breaking current KA _ 50

Rated insulation level
1 min power frequency withstand voltage phase to phase, ground / port KV _ 42/48
Lightning impulse withstand voltage phase to phase, ground,/port KV _ 75/85
Main circuit, ground loop mechanical life _ 3000/2000 2000/2000
SF6 rated pressure Mpa 0.04-0.05 0.04



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.



Product photo:

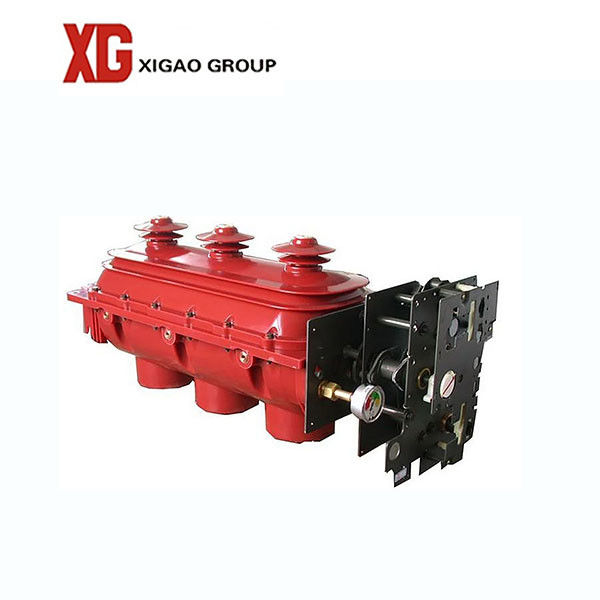

24KV Indoor Sf6 Load Break Switch Medium Voltage Switchgear For RMU 0

FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
