| Place of Origin: | XIAN |
|---|---|
| Brand Name: | XG |
| Certification: | ISO,CCC |
| Model Number: | SF6 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 200-1000 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 SETS |
| Model: | FLN……. | Type: | Indoor |
|---|---|---|---|
| Rated Voltage: | 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV | Rated Current: | 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, |
| Frequency: | 50/60Hz | Phase: | 3 |
| Medium: | SF6 | Material: | Galvanized Sheet And Accessories |
| Certificate: | ISO CCC | ||
| High Light: | 33kv SF6 Load Break Switch,36kv SF6 Load Break Switch,36kv air load break switch |
||
1.Indoor 33kv 36kv Sf6 Gas Load Break Switch
Completely under IEC international standard and GB standard.
Arc-extinguishing and insulation by SF6 gas.
Especially suitable for secondary distribution.
2.Main technical specifications
| Item NO. | Name | Unit | Technical parameters | |||
| Load break switch panel | ||||||
| 1 | Rated Voltage Un | kV | 12 | 24 | 36 | |
| 2 | Rated Frequency | Hz | 50 | 50 | 50 | |
| 3 | Rated Current | A | 630 | 630 | 630 | |
| 4 | Rated Load Breaking Current | A | 630 | 630 | 630 | |
| 5 | Rated Short Time Withstand Current(rms) | kA | 20 | 20 | 20 | |
| 6 | Rated Short Time Duration | s | 3 | 3 | 3 | |
| 7 | Rated Peak Withstand Current | kA | 50 | 50 | 50 | |
| 8 | Rated Closed Switch - Off Current | A | 630 | 630 | 630 | |
| 9 | Rated Cable Charging Breaking Current | A | 10 | 10 | 10 | |
| 10 | Rated Active Load Breaking Current | A | 630 | 630 | 630 | |
| 13 | Earthing Switch 2s Short Time Withstand Current | kA | 20 | 20 | 20 | |
| 14 | Rated Short-Circuit Current Making Times | times | 2 | 2 | 2 | |
| 15 | Rated Current Breaking Times | times | 10 | 10 | 10 | |
| 16 | Mechanical Endurance | Load Break Switch | times | 3000 | 3000 | 3000 |
| Earthing Switch | times | 2000 | 2000 | 2000 | ||
| 17 | SF6 gas anual leakage rate≤ | /year | 0.10% | 0.10% | 0.10% | |
| 18 | Rated Insulation Level | Unit | Technical parameters | |||
| 1min Power Frequency withstand voltage(rms) | On isolating distance | kV | 48 | 60 | 110 | |
| Phase to Phase | kV | 42 | 50 | 85 | ||
| Phase to Earth | kV | 42 | 50 | 85 | ||
| Lightning impulse withstand voltage(peak) | On isolating distance | kV | 85 | 145 | 215 | |
| Phase to Phase | kV | 75 | 125 | 185 | ||
| Phase to Earth | kV | 183 | 184 | 185 | ||
Note: For short circuit breaking and peak current is based on Fuse plus combination.
3.Service:
1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
4.Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

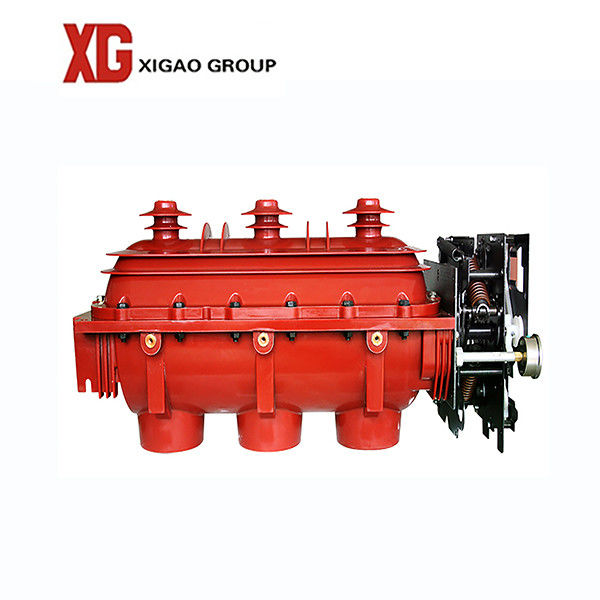

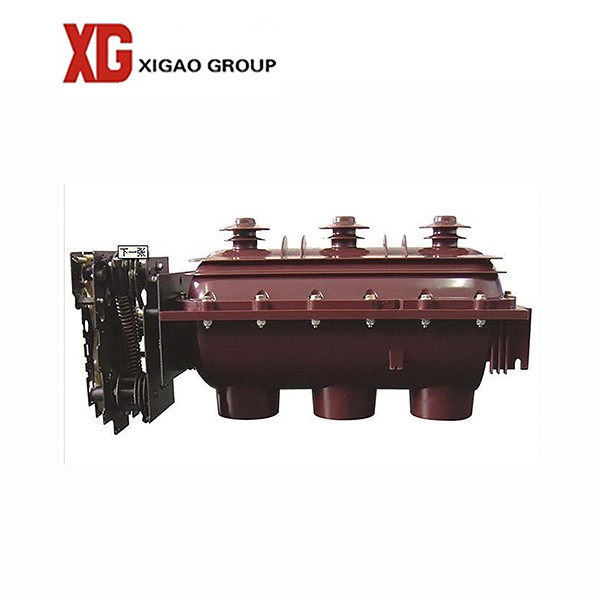

5.Product photo:
