ZN39 33KV 40.5kv Draw Out Vacuum Interrupter Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZN39
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Poles Number: 3 Medium: Vacuum
Material: Galvanized Sheet Standard: GB, IEC Standard
Function: Control And Protection Installation Location: Power Plants
Warranty: 12 Months OEM: Yes
High Light:

40.5kv Vacuum Interrupter Circuit Breaker

,

ZN39 Vacuum Interrupter Circuit Breaker

,

CCC Vacuum Interrupter Circuit Breaker


Product Description

1. ZN39 Series Draw-Out Vacuum Interrupter Circuit Breaker 33KV 40.5kv



ZN39-40.5 type indoor high voltage vacuum circuit breaker is ac 50 hz, rated voltage 40.5 kV indoor high-voltage power distribution equipment. With JYN1-35, the GBC - 35 switchgear systems.

circuit breaker adopts the air circuit breaker under the condition of meet the normal operation of the air distance and the creepage distance requirements,





2. Technical Data





No. Item Unit Data
1 Rated voltage KV 40.5
2 Rated frequency Hz 50
3 Rated current A 1250,1600,2000
4 Rated short-circuit break current KA 20,25,31.5
5 Rated peak value withstand current KA 60,80
6 Rated short-circuit Breaking current times times 20
7 Rated short-circuit duration time s 4
8 Rated operation order   O-0.3s-CO-180s-CO
9 Energy-storage motor rated voltage V AC 200/DC 110
10 Mechanical life-span times 10000
11 Closing time ms ≤100
12 Break-brake time ms ≤60







3. Application





ZN39-40.5 vacuum circuit breaker is the indoor high voltage high voltage distribution equipment with 40.5KV rated voltage, three phase AC 50HZ. It applies to mobile metal closed switchgear cabinet JYNI-35 and high-voltage switchboards GBC. The product matches to the items of GB1984 <AC high voltage circuit breaker >. Accessory product: Hand Cart and PT Cart. This kind was installed CD10Ⅲ electromagnetic operating mechanism or CT19N spring operating mechanism with reliable interlocking device.







4. Standards



  • GB1984 <AC high voltage circuit breaker >
  • JB3855 <3.6-40.5 KV indoor AC high voltage vacuum circuit breaker>
  • DL/T403< Ordering technical conditions of 12-40.5 KV indoor AC high voltage vacuum circuit breaker>



5. Photo and drawing

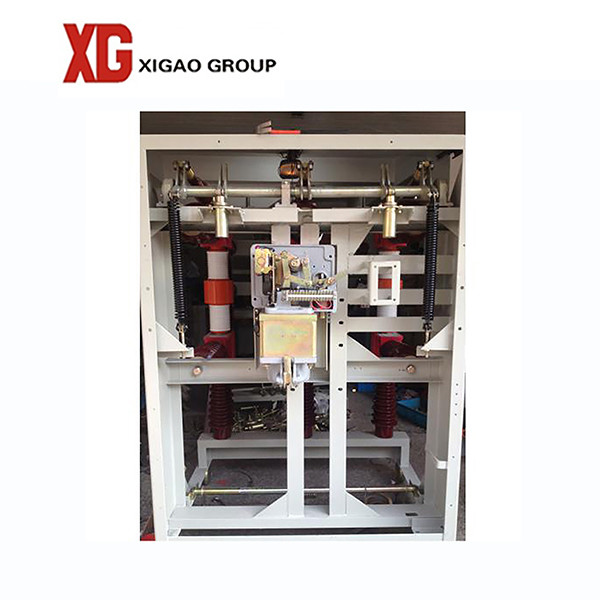

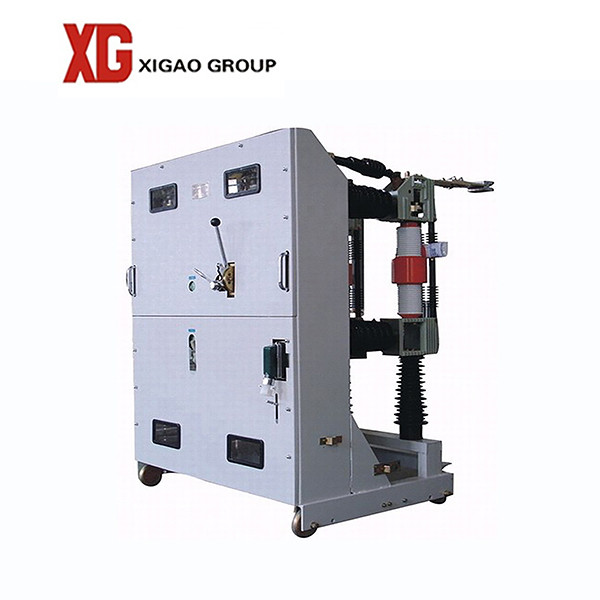

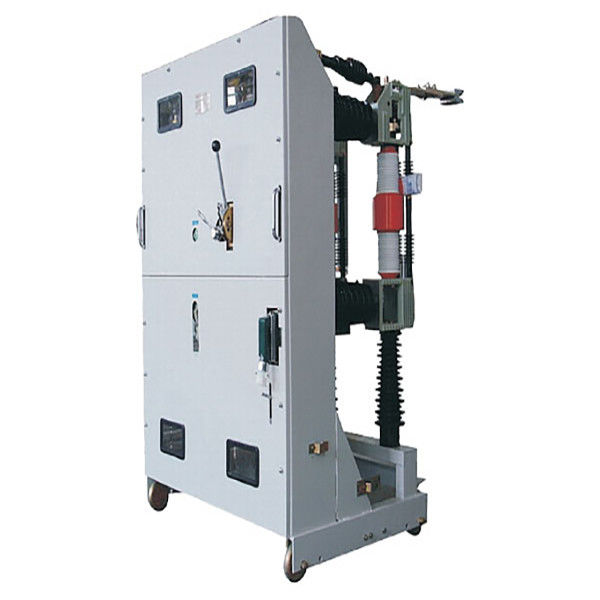

ZN39 33KV 40.5kv Draw Out Vacuum Interrupter Circuit Breaker 1
