| Ratd Voltage: | 6KV 10kv 11KV | Phase: | Single |
|---|---|---|---|
| Accuracy Class: | 0.5, 0.2S, 10P, 5P20 | Ambient Temperature: | -45℃ - +40℃ |
| Material: | Cast Resin | Standard: | IEC/GB |
| Installation Location: | Substations | Rated Insulation Level: | 12/42/75kV |
| High Light: | JDZ10 PT Potential Transformer,3KV PT Potential Transformer,10kV PT Potential Transformer |
||

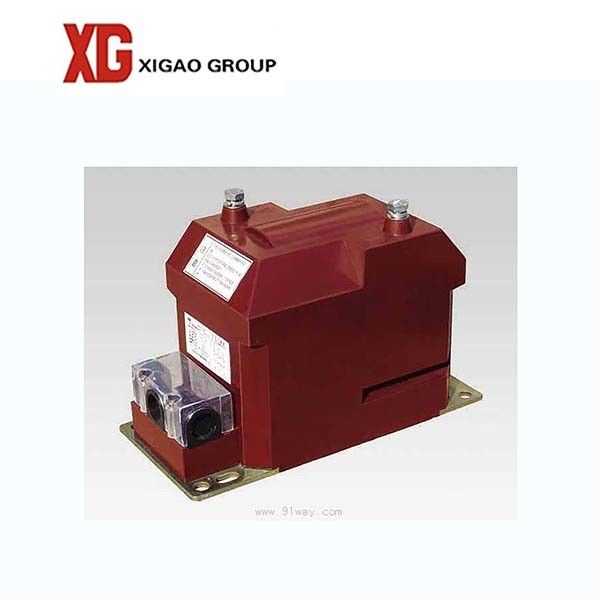

1. JDZ10 Type 3KV 6KV 10kV Indoor Dry Type PT Potential Transformer
| Ref | JDZ10-10A |
| Um | 12kv |
| Test Voltge | 28kv/75kv |
| Rated primary Voltage - U PN |
10000 11000 |
| Rated Secondary Voltage - U SN | 100V or 110V |
| Thermal Limiting Output | 200VA |
| Rated Burden In Accuracy Class(IEC) | 0.2: 15VA |
| 0.5: 30VA | |
| 1.0: 60VA | |
| Frequency | 50/60Hz |
| Weight | 22 kgs |
2. Data
| Type | Rated voltage ratio of transformer (V) |
Frequency (Hz) |
Accuracy class and rated output (VA) | Limit output (VA) | Rated insulated level (KV) | |||
| 0.2 | 0.5 | 1 | 6P | |||||
| JDZ10-3A1 JDZ10-3A2 | 3000/100 |
50 60 |
15 | 30 | 60 | 150 | 3.6/25/40 | |
| JDZ10-6A1 JDZ10-6A2 | 6000/100 | 15 | 30 | 60 | 150 | 7.2/32/60 | ||
| JDZ10-10A1 JDZ10-10A2 | 10000/100 | 15 | 30 | 60 | 150 | 12/42/75 | ||
| JDZ10-3B1 JDZ10-3B2 | 3000/100 | 25 | 50 | 90 | 300 | 3.6/25/40 | ||
| JDZ10-6B JDZ10-6B2 | 6000/100 | 25 | 50 | 90 | 300 | 7.2/32/60 | ||
| JDZ10-10B1 JDZ10-10B2 | 10000/100 | 25 | 50 | 90 | 300 | 12/42/75 | ||
| JDZX10-3AG | 3000/√3/100/√3/100/3 | 40 | 60 | 50 | 150 | 3.6/25/40 | ||
| JDZX10-6AG | 6000/√3/100/√3/100/3 | 40 | 60 | 50 | 150 | 7.2/32/60 | ||
| JDZX10-10AG | 10000/√3/100/√3/100/3 | 40 | 60 | 50 | 150 | 12/42/75 | ||
| JDZX10-3BG | 3000/√3/100/√3/100/3 | 50 | 90 | 50 | 400 | 3.6/25/40 | ||
| JDZX10-6BG | 6000/√3/100/√3/100/3 | 50 | 90 | 50 | 400 | 7.2/32/60 | ||
| JDZX10-10BG | 10000/√3/100/√3/100/3 | 50 | 90 | 50 | 400 | 12/42/75 | ||
