JDZX9 3KV 6KV 10kV Indoor Epoxy Dry Type PT Potential Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: ZDJX9
Minimum Order Quantity: 2-3 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/P, T/T, D/A, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Ratd Voltage: 6KV 10kv 11KV Phase: Single
Accuracy Class: 0.5, 0.2S, 10P, 5P20 Ambient Temperature: -45℃ - +40℃
Material: Cast Resin Standard: IEC/GB
Installation Location: Substations Rated Insulation Level: 12/42/75kV
High Light:

JDZX9-3KV PT Potential Transformer

,

Indoor PT Potential Transformer

,

6KV PT Potential Transformer


Product Description

1. JDZX9-3KV 6KV 10kV H.V. Indoor Epoxy Dry Type PT Potential Transformer



1 .The voltage transformers are in accordance with GB1207-2006 and IEC 60044-2 standards;

2. Power factor of load: COSφ =0.8(lagging);

3. Creep age distance: the product accords with the request of ιι class;

4. The other technical data see following table.



Ref JDZX9-10G
Um 12kv
Test Voltge 28kv/75kv
Rated primary Voltage - U PN

10000/√3

11000/√3

Rated Secondary Voltage - U SN 100 /√3 or 110 /√3
Thermal Limiting Output 400VA
Rated Burden In Accuracy Class(IEC) 0.2: 20VA
0.5: 25VA
1.0: 100VA
6P: 50VA
Frequency 50/60Hz
Weight 31 kgs

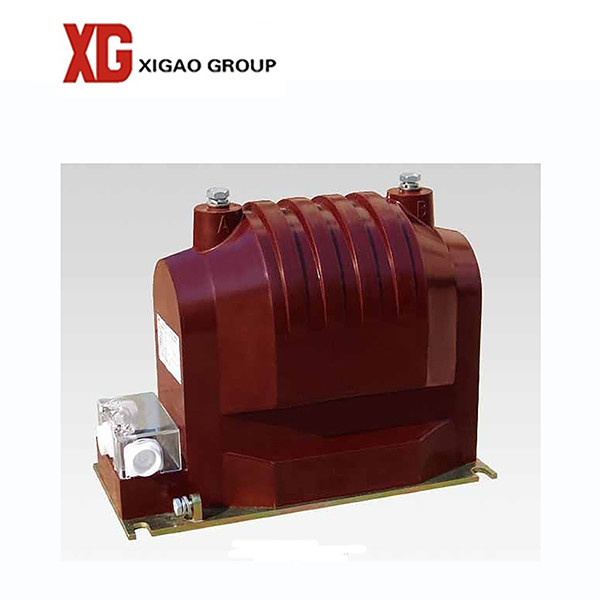

2.  Photo



JDZX9 3KV 6KV 10kV Indoor Epoxy Dry Type PT Potential Transformer 0



3. Factory



JDZX9 3KV 6KV 10kV Indoor Epoxy Dry Type PT Potential Transformer 1



4. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
