JDZ-10Q 3KV 6KV 10kV Cast Resin Single Phase Potential Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: JDZ-10Q
Minimum Order Quantity: 2-3 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/P, T/T, D/A, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Ratd Voltage: 6KV 10kv 11KV Phase: Single
Accuracy Class: 0.5, 0.2S, 10P, 5P20 Ambient Temperature: -45℃ - +40℃
Material: Cast Resin Standard: IEC/GB
Installation Location: Substations Rated Insulation Level: 12/42/75kV
High Light:

JDZ-10Q Single Phase Potential Transformer

,

3KV Single Phase Potential Transformer

,

6KV Single Phase Potential Transformer


Product Description

1. JDZ-10Q Type 3KV 6KV 10kV Indoor Cast Resin CT Current Transformer voltage tranformer



Installation position: indoor type;

ambient temperature: -5~+40°c;

altitude: not over 1000m;

no caustic gas, smoke and no dust of transmitting electricity character and blast at installation place;

no smart mechanism vibration in the installation site;

relative humidity: average relative humidity in the installation of every month is no more than 90%; average relative humidity pf every day is no more than 95%.



2. Technical Data



model

Rated

voltage

ratio

(KV)

Accurate or accurate combination

Rated secondary output

(VA)

Thermal limit output

(VA)

Rated insulation level

(KV)

Wiring diagram

Surface creepage distance

(mm)



Weight

(Kg)

JDZ-3 3/0.1,3/0.22

0.2

0.5

1

3

30

80

150

300

500 3.6/25/40

Figure

1-2

300 26
JDZ-6 6/0.1,6/0.22 7.2/32/60
JDZ-10 10/0.1,10/0.22 12/42/75
JDZ-3 3/0.1/0.1(0.22)

0.2/0.2

0.2/0.5

0.5/0.5

0.2/3

0.5/3

15/15

15/20

30/30

30/300

80/300

300 3.6/25/40

Figure

3-4

JDZ-6 6/0.1/0.1(0.22) 7.2/32/60
JDZ-10 10/0.1/0.1(0.22) 12/42/75






3.  Photo

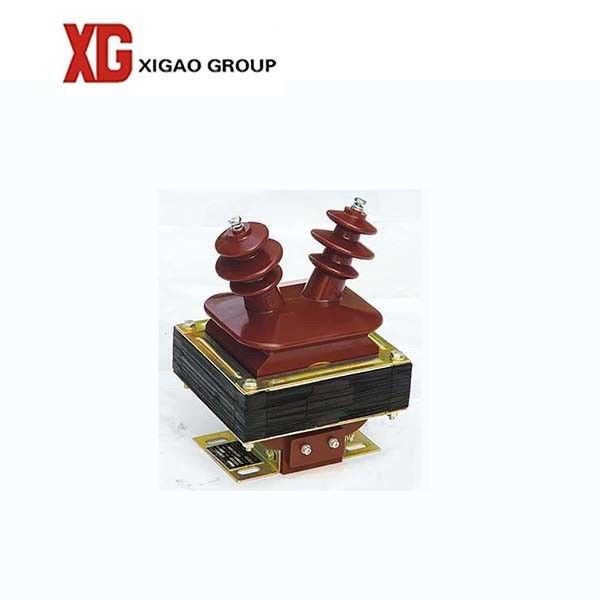

JDZ-10Q 3KV 6KV 10kV Cast Resin Single Phase Potential Transformer 0



4. Factory

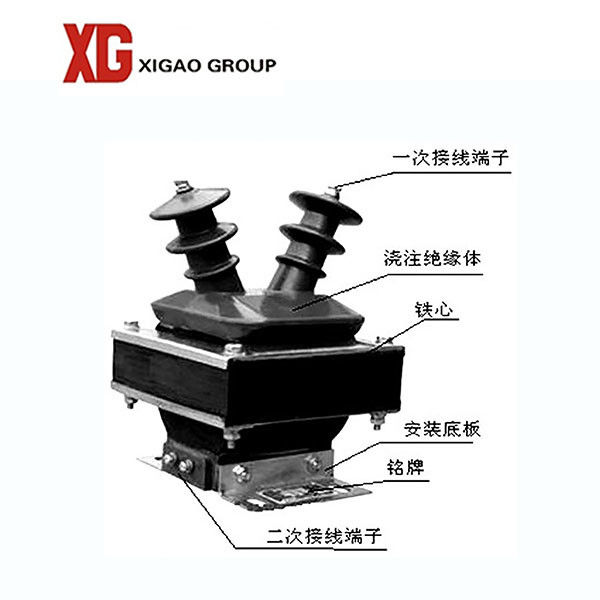

JDZ-10Q 3KV 6KV 10kV Cast Resin Single Phase Potential Transformer 1



5. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
