JDZJ-10Q 10kV 11kv Voltage Transformer For Voltage Protection

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: JDZJ-10Q
Minimum Order Quantity: 2-3 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/P, T/T, D/A, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Ratd Voltage: 6KV 10kv 11KV Phase: Single
Accuracy Class: 0.5, 0.2S, 10P, 5P20 Ambient Temperature: -45℃ - +40℃
Material: Cast Resion Expoxy Standard: IEC/GB
Usage: Voltage Protection Rated Insulation Level: 12/42/75kV
High Light:

JDZJ-10Q 11kv Voltage Transformer

,

XG 11kv Voltage Transformer

,

ISO 11kv Voltage Transformer


Product Description

1. JDZJ-10Q Type 10kV 11kv Indoor Voltage Tranformer CT Current Transformer voltage transformer



JDZJ-10Q series voltage transformers are suitable for voltage, energy measurement and overvoltage and voltage loss protection in neutral point non-effective earthing systems with rated frequency of 50Hz and rated voltage of 3, 6, and 10KV indoor units.



2. Technical Data Sheet



model

Rated

voltage

ratio

(KV)

Accurate or accurate combination

Rated secondary output

(VA)

Thermal limit output

(VA)

Rated insulation level

(KV)

Wiring diagram

Surface creepage distance

(mm)



Weight

(Kg)

JDZJ-3 3/0.1,3/0.22

0.2

0.5

1

3

30

80

150

300

500 3.6/25/40

Figure

1-2

300 26
JDZJ-6 6/0.1,6/0.22 7.2/32/60
JDZJ-10 10/0.1,10/0.22 12/42/75
JDZJ-3 3/0.1/0.1(0.22)

0.2/0.2

0.2/0.5

0.5/0.5

0.2/3

0.5/3

15/15

15/20

30/30

30/300

80/300

300 3.6/25/40

Figure

3-4

JDZJ-6 6/0.1/0.1(0.22) 7.2/32/60
JDZJ-10 10/0.1/0.1(0.22) 12/42/75



3.  Photo

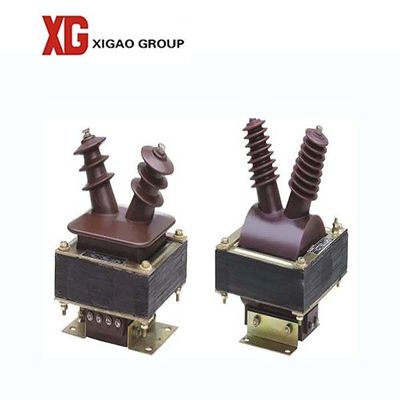

JDZJ-10Q  10kV 11kv Voltage Transformer For Voltage Protection 0



4. Factory



JDZJ-10Q  10kV 11kv Voltage Transformer For Voltage Protection 1



5. FAQ



1. Usually shipped by sea, small order or urgent order we can send you by air.

2. Send the technical data, better for all useful information; we will make a good recommendation.

3. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.

Contact Details
Emma

Phone Number : +8613319220197

WhatsApp : +008613319220197
