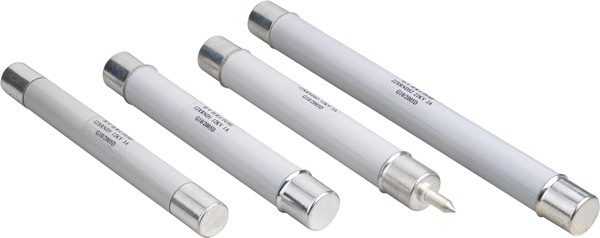

Name: Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse
Brand: Xi'an Xigao Electricenergy Group Co., Ltd.
SKU: XRNP
Price: 9.00 USD
Availability: InStock

Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse

Basic Information

Place of Origin:	XIAN,CHINA
Brand Name:	XG
Certification:	ISO
Model Number:	XRNP

Minimum Order Quantity:	3 SET
Packaging Details:	WOODEN CASE
Delivery Time:	1-3 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 SET

Get Best Price Contact Now

Detail Information

Ambient Temperature:	-45℃ To +40℃	Material:	Porcelain
System Voltage:	3.6kv 7.2kv 12kv 24kv 35kv	Standard:	IEC/GB
Installation Location:	Power Plants, Substations	System Current:	0.5a-200a
Certificate:	ISO	Color:	White, Brown
Highlight:	XRNP HRC Fuse , 35kv HRC Fuse , 12kv HRC Fuse

Product Description

1. XRNP Type 3.6kv 7.2kv 12kv 24kv 35kv Voltage Transformer Protection HRC Fuse

Ceramic Fuse Holder can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circ-uit break.(Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and lEC282-1).

Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 0

2. Technical data

Model	Rated working voltage(kV)	Fuse body rated current(A)	Rated dropout current(KA)	Overall dimension(mm)
Model	Rated working voltage(kV)	Fuse body rated current(A)	Rated dropout current(KA)	L
XRNP1	3.6	0.5,1,2,3.15,6.3	50	142
XRNP1	7.2	0.5,1,2,3.15,6.3	50	142(195)
XRNP1	12	0.5,1,2,3.15	40	195
XRNP1	24	0.5,1,2,3.15	40	355
XRNP1	40.5	0.5,1,2,3.15	50	465
XRNP2	12	0.5,1,2,3.15	50

3. Drawing

Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 1

Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 2

4. Factory

Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 4

5. Delivery

Voltage Transformer Protection 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 5
