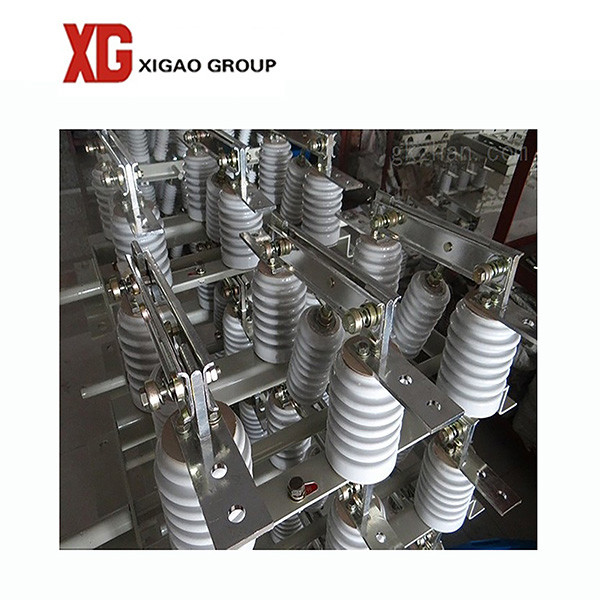

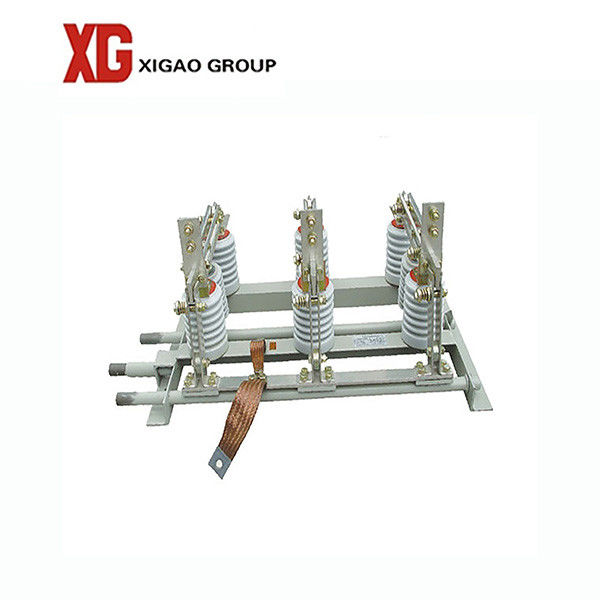

Galvanized 3 Pole 35KV High Voltage Disconnect Switch

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: GN12
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Or Single Phase Material: Galvanized Sheet And Accessories
Standard: IEC/GB Certificate: ISO14001 BS OHSAS18001
Function: Break Or Switch The Line. Warranty: 12 Months
High Light:

35KV High Voltage Disconnect Switch


Galvanized High Voltage Disconnect Switch


3 Pole HV Disconnect Switch

Product Description

1. GN27-40.5KV 36KV 35KV HV Electrical Disconnect Switch


GN27 Medium voltage fusible disconnect switch is a indoor type electric disconnect switch, rated voltage 12kV, three phase, AC 50-60Hz. Used for breaking and isolating the circuit, maintenance personnel can clearly see whether the circuit is separated, to ensure their safety.

The innovative structure of disconnector is also fabricated with an earthing switch. It's quality reaches a international IEC standard.


2.Product Parameter of GN27-40.5KV Disconnect Switch


No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 630-1250


3. Product feature of GN27-40.5KV Disconnect Switch


(1). The altitude does not exceed 1000m.

(2).The ambient air temperature: Maximum+40℃:Minimum: General Area-30℃,
(3).The installation site of ordinary type isolator should be kept away from gas,
(4).smoke chemical deposition, salt-spray-fog, dust and other and corrosive maters

(5).The wind pressure does not exceed 700Pa.
(6).The earthquake intensity does not exceed 8 degrees.
(7).The working situation without frequent violent vibration.


4.Technical drawings of GN27-40.5KV Disconnect Switch



5. Factory show



6. FAQ


1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Technology ensure the quality satisfy international request.

3.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

4. For tender cooperation, it is welcome to discuss the detail in between.
