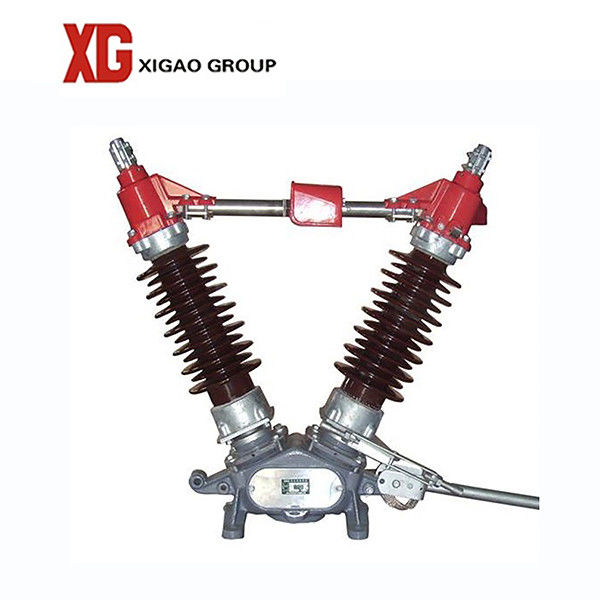

GW5 40.5KV High Voltage Disconnect Switch With 3 Poles

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: GW5
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CARTON
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 STES
Detail Information
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Or Single Phase Material: Galvanized Sheet And Accessories
Standard: GB, IEC Standard Function: Break Or Switch The Line
Installation Location: Power Plants, Substations And Power Systems Etc Warranty: 12 Months
High Light:

GW5 High Voltage Disconnect Switch

,

40.5KV High Voltage Disconnect Switch

,

3 Poles High Voltage Disconnect Switch


Product Description

GW5 40.5KV High Voltage Disconnect Switch With 3 Poles



1. GW5-40.5KV 36KV 33KV Disconnect Switch



GW5 series outdoor high voltage isolator switch is suitable for three-phase AC 50Hz, 10kV/15kV/20kV rated voltage outdoor high-voltage electrical equipment. For high voltage transmission line non-load shifting, and the maintenance of high-voltage Busbar, electrical equipment such as circuit breakers and electrical isolation of live high voltage line. Can also be divided into a small capacitor and the inductor current.



2.Product Parameter of GW5-40.5KV 36KV 33KV Disconnect Switch



No. Item Unit Data
1 Rated voltage KV 12, 40.5, 72.5, 126
2 Max working voltage (KV) V 12, 40.5, 72.5, 126
3 Rated current A 630-1250



3. Product application of GW5-40.5KV 36KV 33KV Disconnect Switch



Altitude: ≤2000m

Earthquake intensity: ≤8 degree

Ambient temperature: -10℃~ +40℃

Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%;

daily average saturated vapor pressure ≤2.2KPa; monthly average value ≤1.8KPa

installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution.



4.Technical drawing of GW5-40.5KV 36KV 33KV Disconnect Switch








5. Factory show of GW5-40.5KV 36KV 33KV Disconnect Switch






6. Delivery, shipment and serving






7. FAQ



1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Technology ensure the quality satisfy international request.

3.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

4. For tender cooperation, it is welcome to discuss the detail in between.
