Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: GN19
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CARTON
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Or Single Phase Material: Galvanized Sheet And Accessories
Certificate: ISO CCC Standard: GB, IEC Standard
Function: Break Or Switch The Line.
High Light:

72.5KV High Voltage Disconnect Switch

,

HV High Voltage Disconnect Switch

,

Galvanized HV Disconnect Switch


Product Description

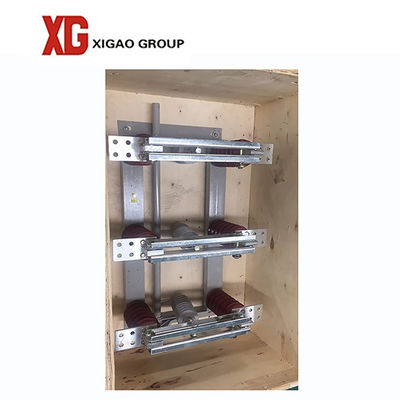

3 Phase 72.5KV HV High Voltage Disconnect Switch



1. GN19 Indoor Electric Disconnector Switch



Indoor disconnect switch is a indoor type electric disconnect switch, rated voltage 12kv 15kv 20kv 33kv 40.5kv 72.5kv , three phase, AC 50-60Hz. Used for breaking and isolating the circuit, maintenance personnel can clearly see whether the circuit is separated, to ensure their safety. The innovative structure of disconnector is also fabricated with an earthing switch. It's quality reaches a international IEC standard.



2.Product Parameter of GN19 Disconnector Switch



Model Rated voltage(kV) Rated current(A) Rated short-timewithstand current(kA/4s) Rated peakwithstand current(kA)
GN19-12/400-12.5 12 400 12.5 31.5
GN19-12/630-20 12 630 20 50
GN19-12/1000-31.5 12 1000 31.5 80
GN19-12/1250-31.5 12 1250 31.5 80
GN19-12C/400-12.5 12 400 12.5 31.5
GN19-12C/630-20 12 630 20 50
GN19-12C/1000-31.5 12 1000 31.5 80
GN19-1C2/1250-31.5 12 1250 31.5 80



3. Product feature OF GN19 Disconnector Switch



Stable and reliable performance

Good compatibility

Free maintenance and long service life

Suitable for occasions with frequent operation.
