12kv 24kv 40.5kv Outdoor High Voltage Switch Isolator 33kv Disconnect Switches

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: GW1
Minimum Order Quantity: 1 SET
Price: USD200-1000
Packaging Details: WOOCEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Or Single Phase Material: Galvanized Sheet And Accessories
Standard: GB, IEC Standard Function: Break Or Switch The Line.
Installation Location: Power Plants, Substations And Power Systems Etc Warranty: 12 Months
High Light:

12kv High Voltage Switch Isolator

,

40.5kv High Voltage Switch Isolator

,

33kv Disconnect Switches


Product Description

12/24/40.5 outdoor high voltage disconnect switch

Description:
GW□-12/24/40.5-630-20(25) outdoor AC high voltage disconnect switch (disconnect switch for short) is used to open and close circuit with voltage but no-load 50/60Hz,12/24/40.5kV power system, the anti-pollution type can be used in the serious pollution area. Three pole linkage, good synchronous performance. It accords with standards of IEC62271-103:High voltage switches.
Note: The model of the 24kV outdoor HV disconnect switch is GWHY2-24.

Ambient Conditions:
1. Altitude: ≤3000m;
2. Ambient temperature:-30℃~+40℃;
3. Wind speed:≤35m/s;
4. Air pollution:IV;
5. Earthquake intensity: ≤8 degree;
6. Ice thickness:≤10mm
Products with special requirements, specifications and dimensions that need to be improved can be designed and manufactured according to user requirements.
Product Paramenters
No.
Item

Unit
Data
1
Rated voltage

kV
12/24/40.5


2
Rated current

A
630/1000/1250
3
Rated power frequency


Hz

50/60
4

Rated peak withstand current


kA

50/63
5

Rated short-time withstand current


kA

20/25
6

Rated short-time withstand current duration


s

4
7

Main loop resistance


μΩ

12kV≤80

24kV≤90

40.5kV≤100
8
1min(dry)power frequency withstand voltage




phase to phase
phase to earth
across open contacts





kV

42/48

50/60

95/115
9
1min(wet)power frequency withstand voltage

34

50

85

10
lightning impulse wuthstand voltage(peak)

75/85

125/145

185/215
11

Mechanical life


Times

2000

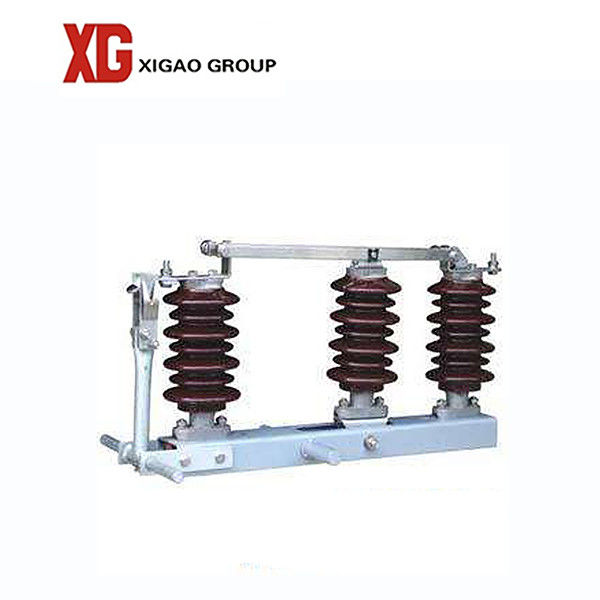

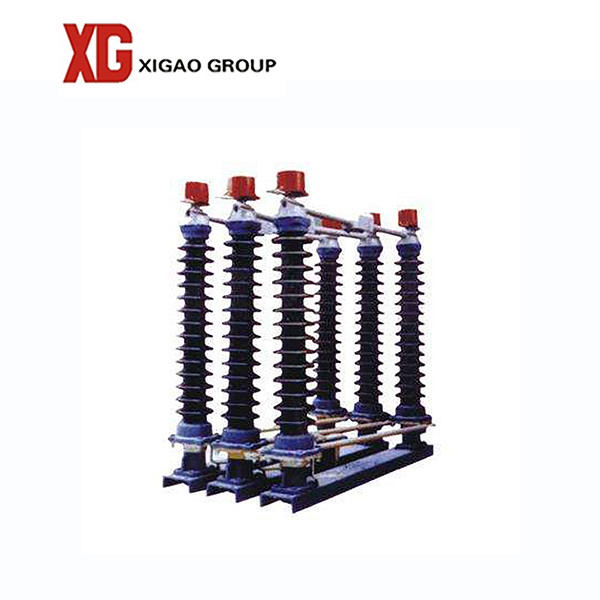

Drawing
12kv 24kv 40.5kv Outdoor High Voltage Switch Isolator 33kv Disconnect Switches 0
12kv 24kv 40.5kv Outdoor High Voltage Switch Isolator 33kv Disconnect Switches 1

Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.

4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

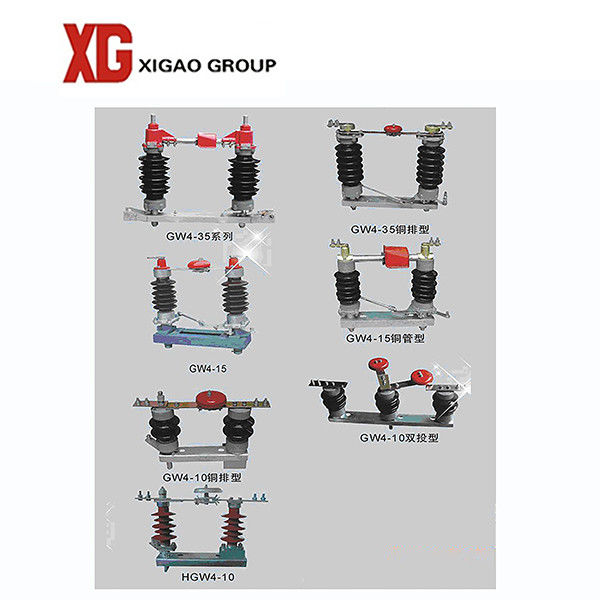

Product photo:
