11kv Porcelain High Voltage Thermal Fuse Power Plants Use

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: HRW-15/100
Minimum Order Quantity: 5 SETS
Price: USD5-50
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DYAS
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 10000 SETS
Detail Information
Phase: Single Rated Frequency: 50HZ/60Hz
Rated Voltage: 11KV Breaking Capacity: High
Color: White, Brown Usage: High Voltage
Ambient Temperature: -45℃ To +40℃ Installation Location: Power Plants, Substations And Power Systems Etc
High Light:

Porcelain High Voltage Thermal Fuse

,

11kv High Voltage Thermal Fuse

,

11kv Porcelain High Voltage Fuse


Product Description

11kv High Voltage Porcelain Thermal Fuse

overview:

Drop out fuses and load-drop fuses are outdoor high voltage protection appliances. It is installed on the high voltage side of the distribution transformer or on the branch line of the distribution line. used as a short circuit of the transformer and the line, overload protection and split load current.

The drop fuse is composed of two parts:

An insulating bracket and a fuse tube. The static contact is installed at two ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of an inner arc extinguishing tube and an outer layer.

It consists of a phenolic paper tube or an epoxy glass tube. The load drop fuse enhances the elastic auxiliary contact and the arc extinguishing cover to divide and combine the load current.

Product use environment:

1. The ambient temperature is not higher than +40 C, not lower than-40 C

2.The altitude does not exceed 3000m

3.The maximum wind speed does not exceed 35m/s



4.The earthquake intensity does not exceed 8 degrees





porcelain drop out fuse product parameters
Type Rated voltage
(KV)
Rated current
(A)
Breaking current
(A)

Lightning Impulse

voltage(BIL)
(KV)

Power frequency

wihstand voltage
(KV)

Creepage

distance
(mm)

Weight
(kg)
Dimensions
(cm)
YRP3-24/100 24-27 100 10000 150 65 540 11 51×38×16
YRP3-24/200 24-27 200 12000 150 65 540 11.5 51×38×16
YRP3-24/100F 24-27 100 10000 150 65 540 11.5 51×38×16
YRP3-24/200F 24-27 200 12000 150 65 540 12 51×38×16
YRP4-33/100 33-36 100 10000 170 72 680 12 60×41×14
YRP4-33/200 33-36 200 12000 170 72 680 12.5 60×41×14
YRP4-33/100F 33-36 100 10000 170 72 680 12 60×41×14
YRP4-33/200F 33-36 200 12000 170 72 680 12.5 60×41×14



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

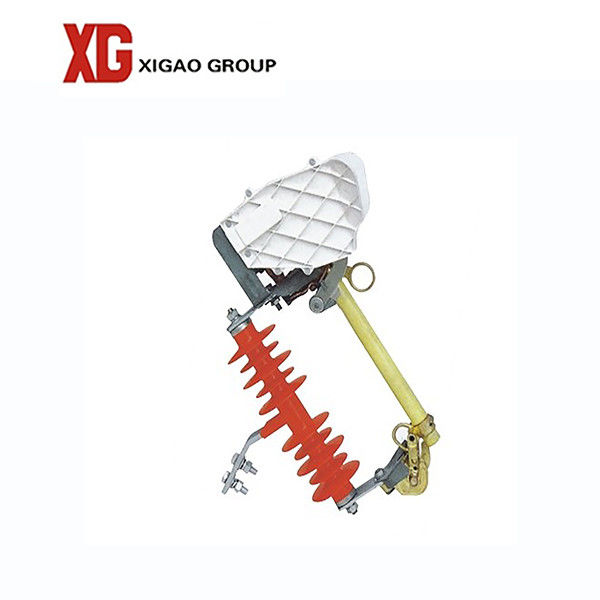

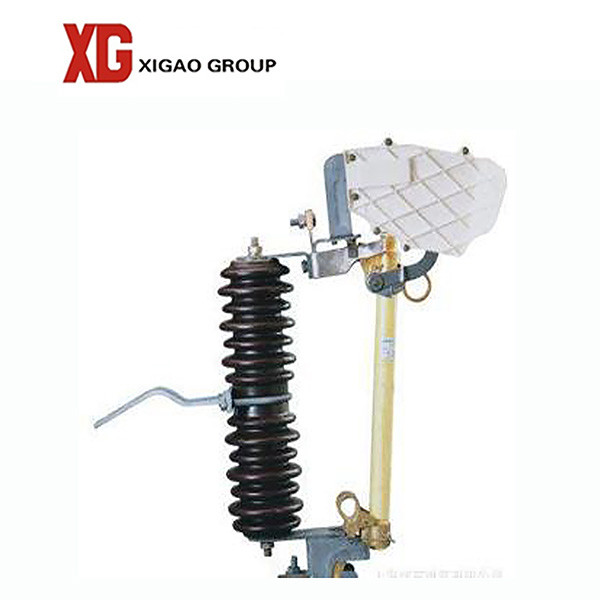

Product photo:

11kv Porcelain High Voltage Thermal Fuse Power Plants Use 0





FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
