Gw5-40.5 Substation V Type Porcelain High Voltage Disconnect Switch Isolation Switch

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: GW5
Minimum Order Quantity: 1 SET
Price: USD 200-1000
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Model: GW5 Frequency: 50/60Hz
Poles Number: 3 Material: Galvanized Sheet And Accessories
Certificate: ISO CCC Standard: GB, IEC Standard
Function: Break Or Switch The Line. Installation Location: Power Plants, Substations And Power Systems Etc
Warranty: 12 Months
High Light:

Gw5-40.5 High Voltage Disconnect Switch

,

V Type High Voltage Disconnect Switch

,

Gw5-40.5 power isolation switch


Product Description

 Gw5-40.5 Substation High Voltage Vtype Porcelain Disconnect Switch Isolation Switch

Techncial data

Type Rated voltage(kV) Rated current
(A)
Limit passing current(kA) 10s thermal stability current(kA)
Peak Effective value
(H)GW5-12G/200A 12 200 5 9 5
(H)GW5-12G/400A 12 400 21 15 10
(H)GW5-12G/630A 12 630 35 25 14
(H)GW5-12G/800A 12 800 55 35 20
(H)GW5-12G/1000A 12 1000 80 45 28
(H)GW5-12G/1250A 12 1250 120 55 39
(H)GW5-10/200A 12 200 5 9 5
(H)GW5-10/400A 12 400 21 15 10
(H)GW5-10/630A 12 630 35 25 14
(H)GW5-10/800A 12 800 55 35 20
(H)GW5-10/1000A 12 1000 80 45 28
(H)GW5-10/1250A 12 1250 120 55 39



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

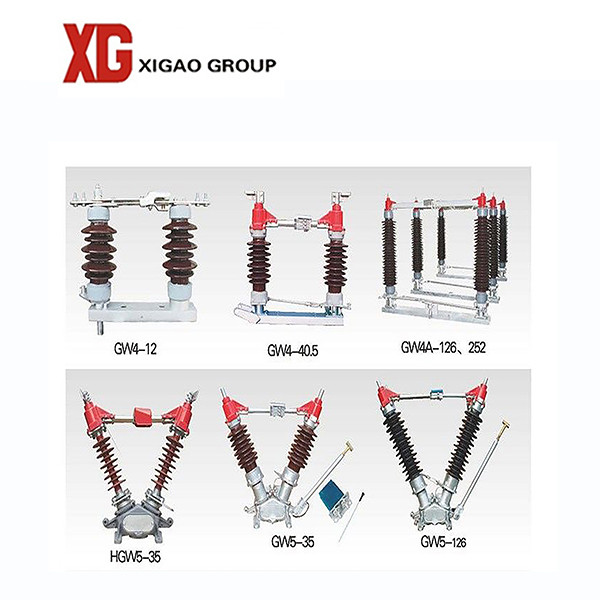

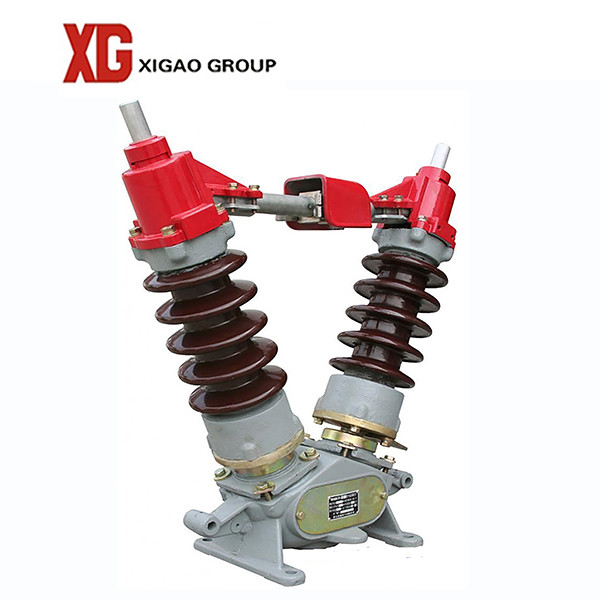

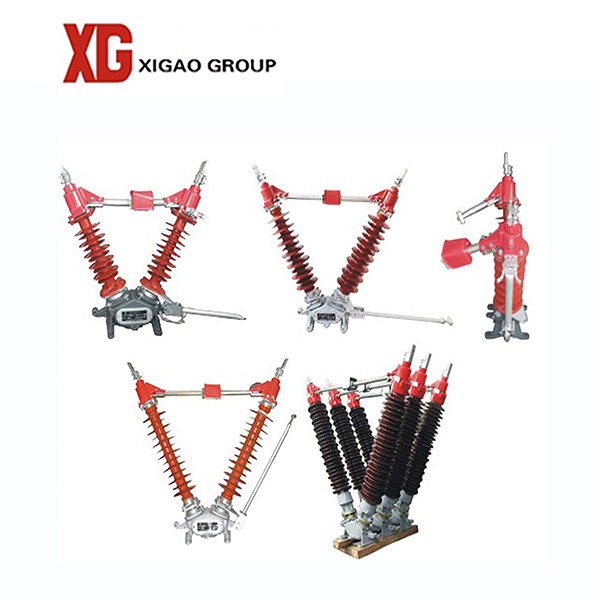

Product photo:

Gw5-40.5 Substation V Type Porcelain High Voltage Disconnect Switch Isolation Switch 0

FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
