Indoor Disconnect Interrupter High Voltage Isolation Switch GN22 10kv 11kv 12KV

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: GN22
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Product Name: High Voltage Isolator Switch Operation Type: Electric Or Manual
Number Of Pole: 3 Usage: Outdoor
Max. Voltage: 12KV Pole: 3 Pole
Max. Current: 3150A Application: High Voltage
Rated Voltage: 12KV 24kV
High Light:

Interrupter High Voltage Isolation Switch

,

High Voltage Isolation Switch GN22

,

10kv Indoor Disconnect Switch


Product Description

1.10kv 11kv 12KV GN22 high voltage indoor type disconnect interrupter isolation switch



Gn22-12 (c) disconnector is applicable to indoor equipment with three-phase AC 50Hz and rated voltage of 12kV. It is used for connecting, cutting off or switching lines of high-voltage equipment under voltage and no-load conditions.



2.Products Description



Name indoor high voltage isolation switch
Material stainless steel
Product number GN22-12
Rated voltage 12KV
Rated frequency 50HZ
Rated current 1600A - 2000A / 2500A - 3150A
Rated short-time withstand current 40KA 50KA
Length * width * height of each product (CM) 45*32.5*52
Gross weight of each commodity (kg) 32



3.application


GN22-12 (C) series indoor high-voltage disconnector, used for three-phase AC 50Hz,
The rated voltage is 12KV indoor unit, and the workers are a little bit
Pressure no-load connection, cut into the installed pipeline for use.
Use of environmental conditions
1. Altitude: 1000m,
2. Ambient air temperature: no higher than+40 ° C, no lower than - 25 ° C,
3. Relative humidity: daily average not more than 95%, average not more than 90%
4. Vapor pressure: average less than 2.2 × 10-3MPa, average less than 1.8 × 10-3MPa,
5. Places without fire, explosion, metal corrosion, insulation damage, harmful gas and conductive dust.

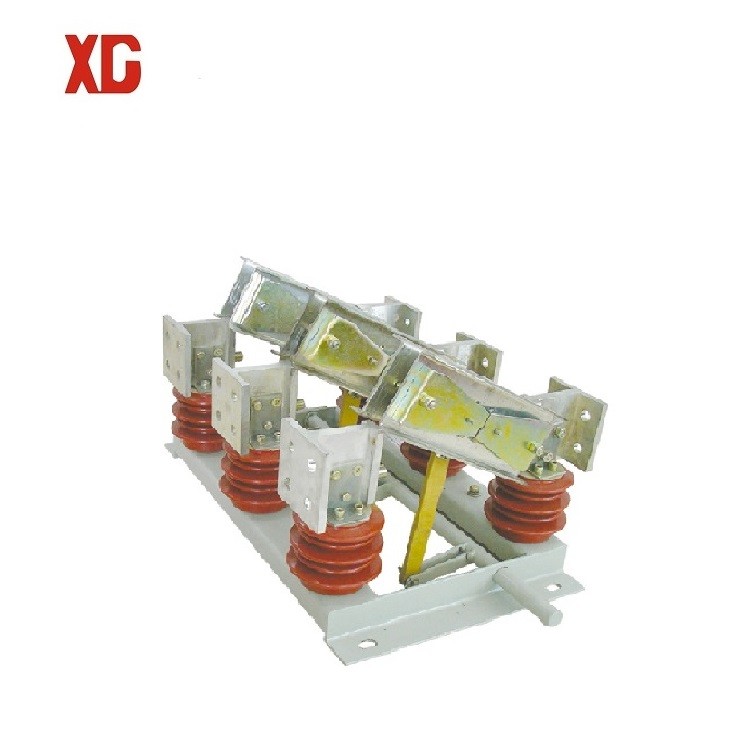

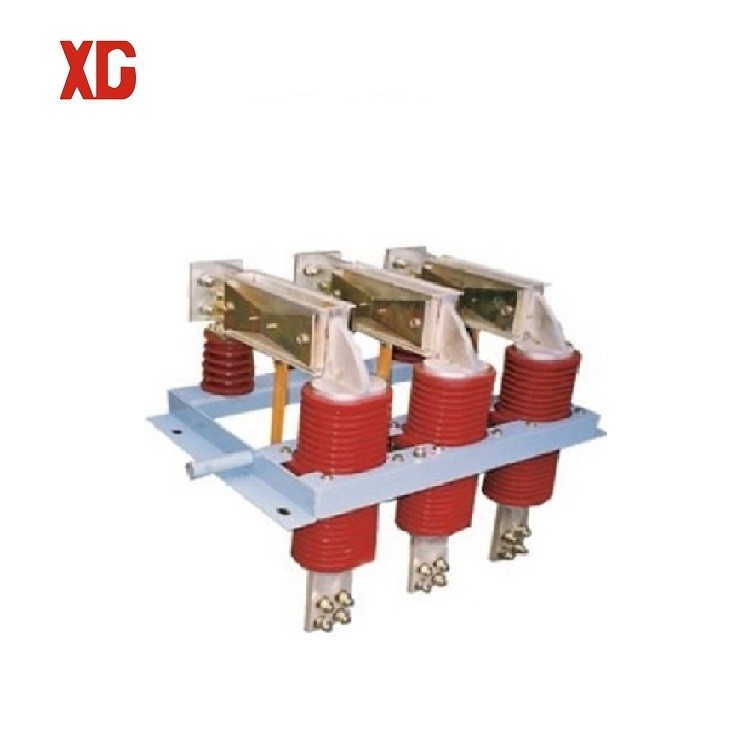

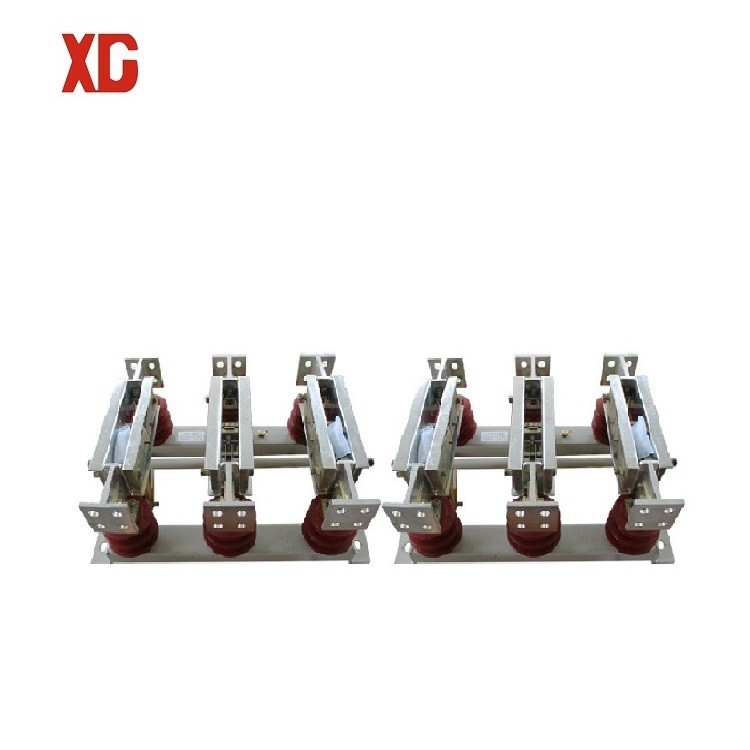

4. Detailed drawing of GN22 Isolating switch








5.  FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
