GN24-12D High Voltage Indoor Disconnect Switch With Earth Isolator

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: CCC,ISO
Model Number: GN24
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CARTON
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Phase: 3 Phase Or Single Phase Model Number: GN24-12D
Type: High Voltage Poles Number: 3
Rated Voltage: 12kV Material: Galvanized Sheet And Accessories
Application: Indoor
High Light:

GN24-12D Indoor Disconnect Switch

,

Earth Isolator Indoor Disconnect Switch

,

630A Hv Disconnect Switch


Product Description

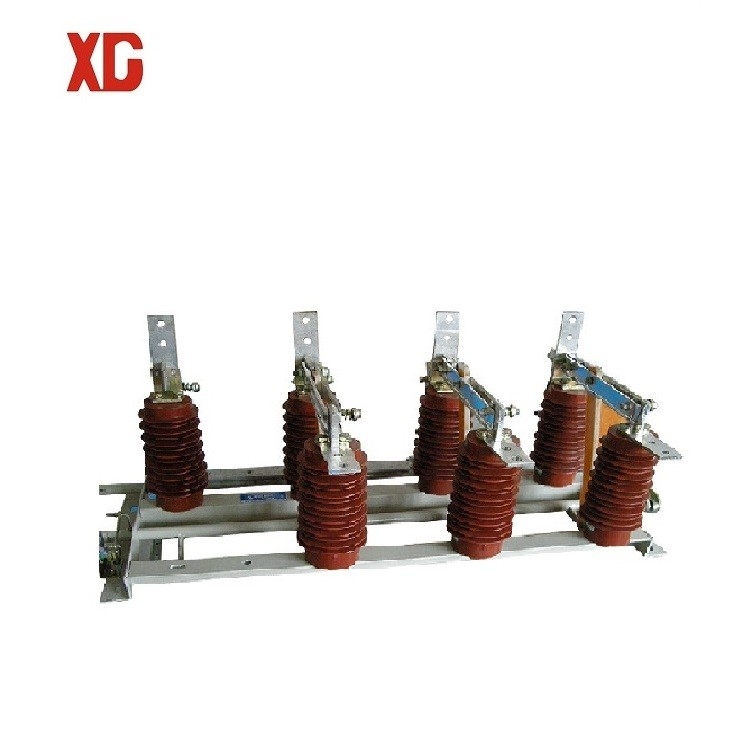

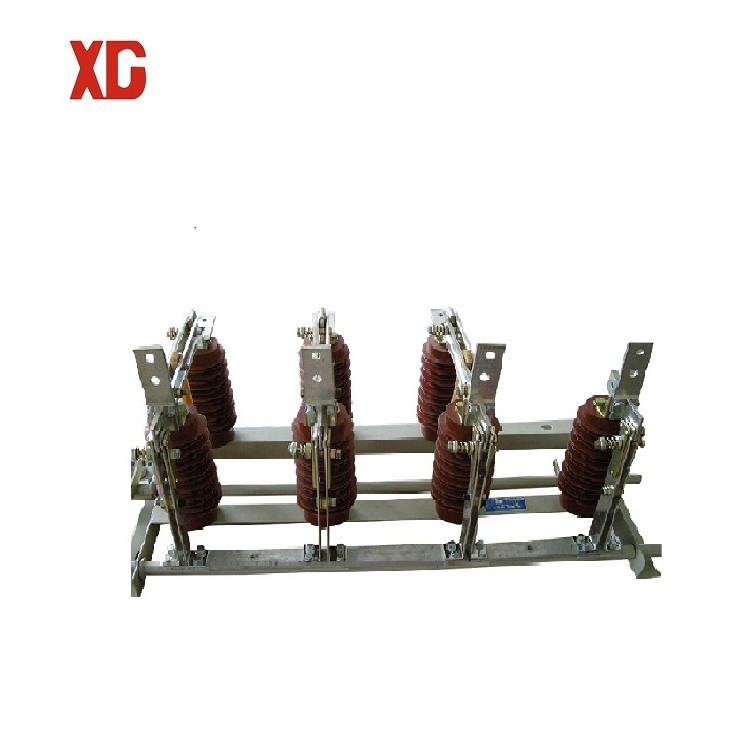

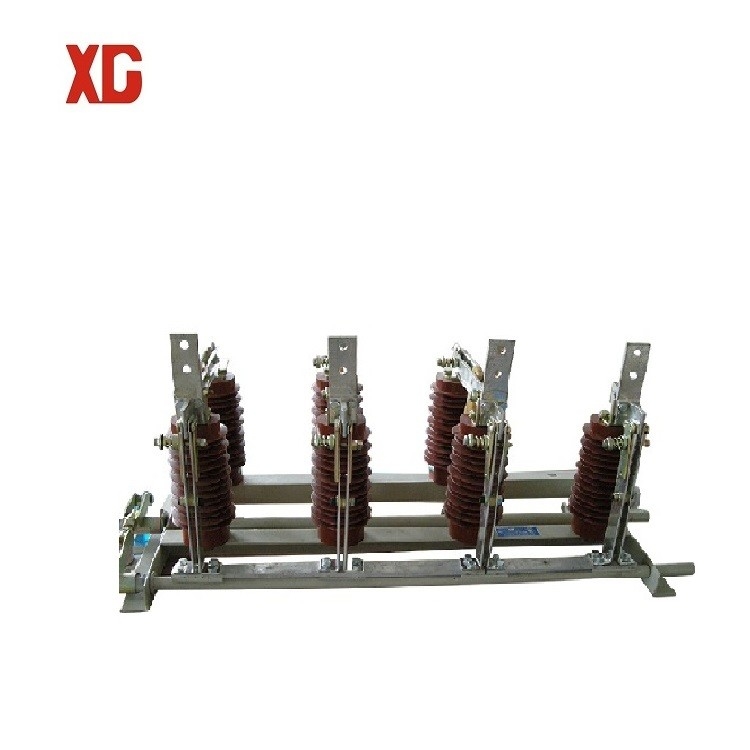

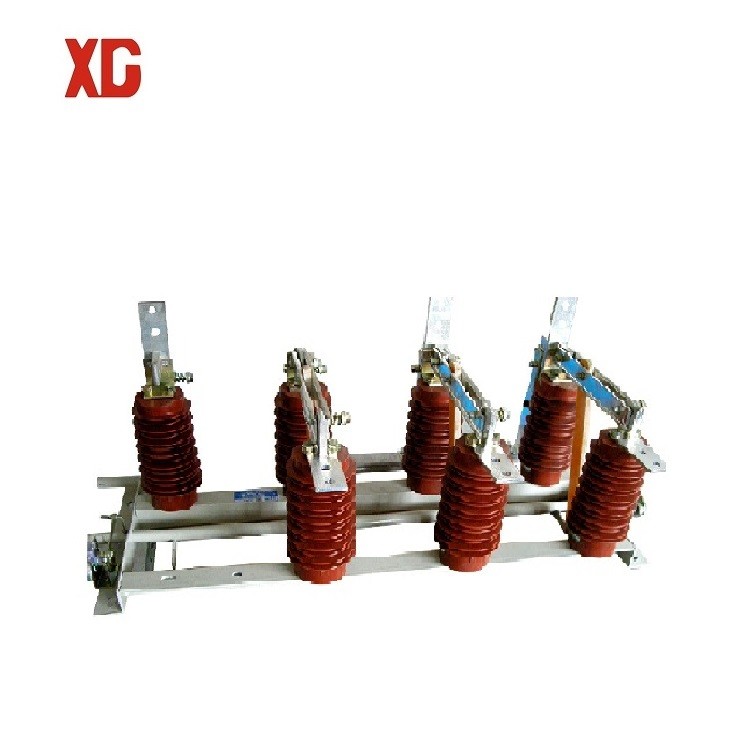

1.GN24-12D High Voltage Indoor Disconnect Switch With Earth Disconnector Isolator

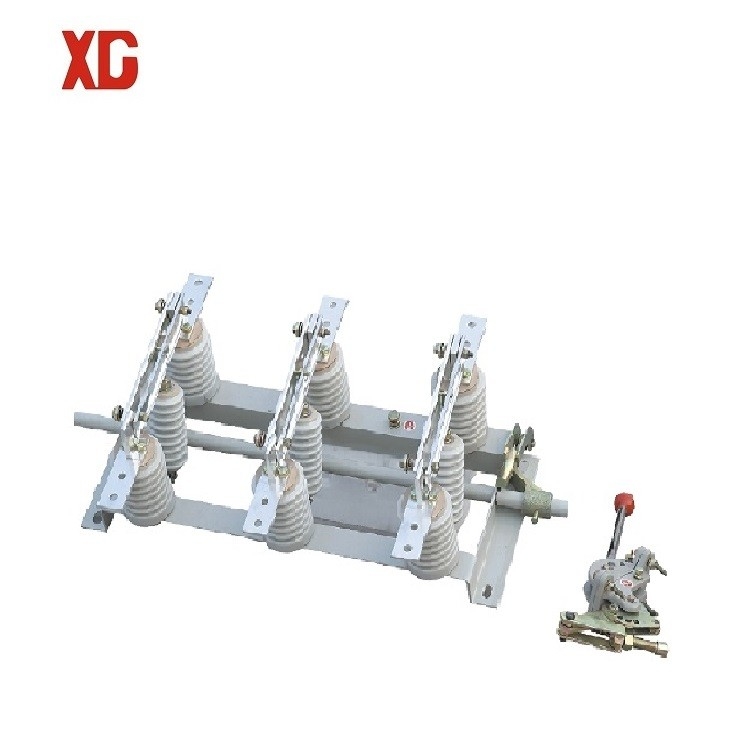

GN24-12D indoor high-voltage disconnector is applicable to the power system with rated voltage below 12KV and AC 50/60Hz. It is equipped with CS6-1 manual operating mechanism, which is used to open and close the circuit under no-load condition. There are additional pollution type, high-altitude type and charged displays.



2.Working environment

The altitude: 1000m~3000m
The ambient temperature: -30°C~40°C
The relative humidity of air: monthly≤90°C,daily≤95°C
The wind pressure: ≤700pa(wind speed 34m/s)
Amplitude: earthquake degree 8
Environment degree: degree III
Cannot be use on the condition of the danger of fire and blast, heavy pollution, chemical etching, strong shake etc.

3.Technical parameter



Model No.
Rated voltage
Rated current (A)
Rated short time withstand current (4s) kA
Rated peak withstand current kA
GN24-12D/630-20
12 KV
630 A
20
50
GN24-12CD/630-20
12KV
630A
20
50
GN24-12SD/630-20
12 KV
630 A
20
50
GN24-12CSD/630-20
12 KV
630 A
20
50
GN24-12D/1000-31.5
12 KV
1000 A
31.5
80
GN24-12CD/1000-31.5
12 KV
1000 A
31.5
80
GN24-12SD/1000-31.5
12 KV
1000 A
31.5
80
GN24-12D/1250-40
12 KV
1250 A
40
100
GN24-12SD/1250-40
12 KV
1250 A
40
100
GN24-12CD/1250-40
12 KV
1250 A
40
100



4.Technical drawings of indoor switch disconnector






5. FAQ

1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Technology ensure the quality satisfy international request.

3.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

4. For tender cooperation, it is welcome to discuss the detail in between.
