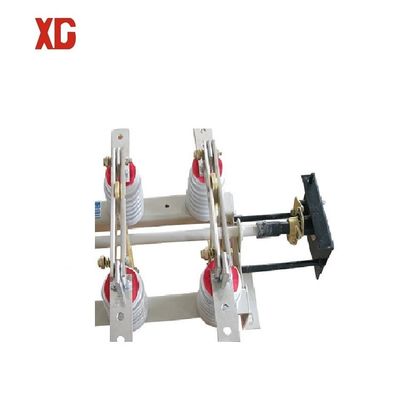

GN2-40.5KV Electrical Isolator Switch White Indoor High Voltage Isolation Switch

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO
Model Number: GN2
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
System Voltage: 35kv 36kv Frequency: 50/60Hz
Phase: Three Phase Standard: GB, IEC Standard
Material: Silver Contact Color: Grey
Keyword: 40.5 KV Disconnect Switch Installation Type: Indoor
High Light:

GN2-40.5KV Electrical Isolator Switch


Indoor Electrical Isolator Switch


60Hz High Voltage Isolation Switch

Product Description

1. GN2-40.5KV 36KV 35KV Outdoor High Voltage Disconnect Switch


GN2-40.5 series indoor high-voltage disconnectors are indoor electrical equipment with rated voltage of 40.5kv and three-phase AC 50/60hZ system. It is used for making, breaking and switching between lines with voltage and without load. The innovative structure of the switch is that it contains a grounding switch. This switch can also be mounted on the wall. It conforms to IEC62271-102 standard.


2. Product Parameter


No. Item Unit Data
1 Rated voltage KV 12
2 Max working voltage (KV) V 12.7
3 Rated current A 400-5000A


3. Product feature


Altitude does not exceed 1000m.

Ambient air temperature: Maximum+40℃:Minimum: General Area-30℃,
Wind pressure does not exceed 700Pa.
Earthquake intensity does not exceed 8 degrees.
Working situation without frequent violent vibration.


4.Outline Dimension


GN2-40.5KV Electrical Isolator Switch White Indoor High Voltage Isolation Switch 0


5. FAQ


1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Technology ensure the quality satisfy international request.

3.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

4. For tender cooperation, it is welcome to discuss the detail in between.
