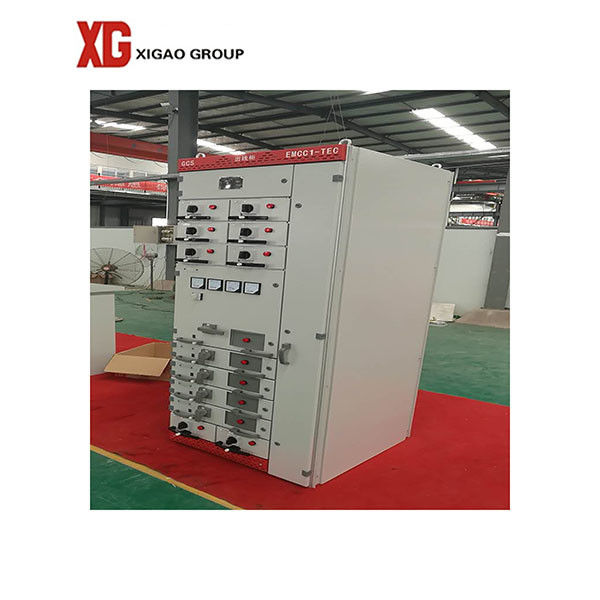

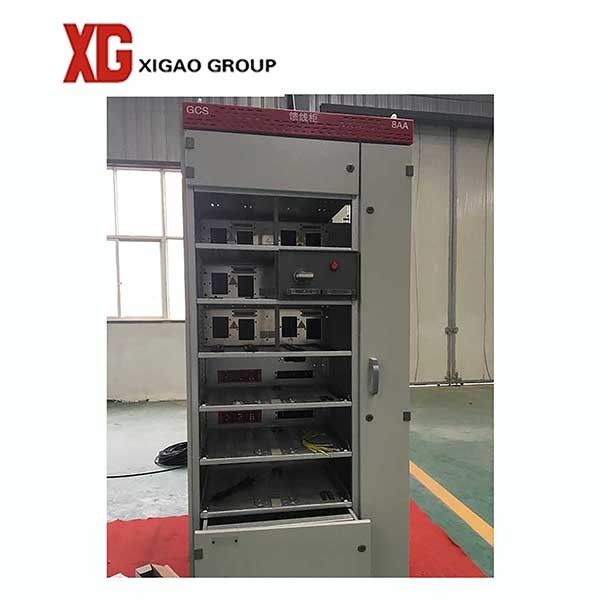

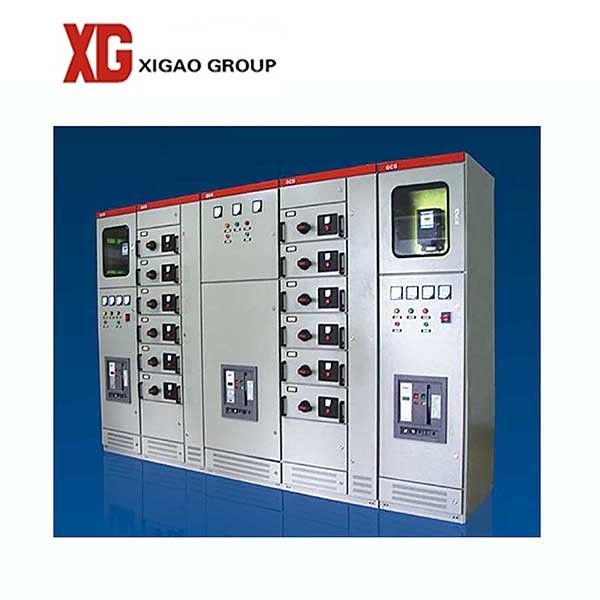

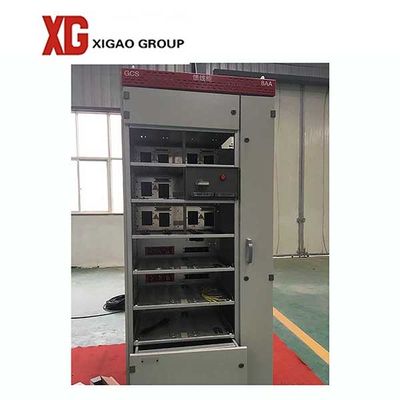

GCS 0.4kv 0.416kv 6.6kv Low Voltage Power Distribution Switchgear

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: GCS...
Minimum Order Quantity: 1 set
Packaging Details: WOODEN BOX
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Rated Voltage: 0.4KV 0.416KV , 6.6KV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A….
Frequency: 50/60Hz Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
High Light:

GCS Power Distribution Switchgear

,

6.6kv Power Distribution Switchgear

,

GCS Withdrawable Switchgear Cubicle


Product Description

1. GCS type indoor 0.4kv 0.416kv 6.6kv low-voltage withdrawable switchgear cubicle



GCS type indoor 0.4kv 0.416kv 6.6kv low-voltage withdrawable switchgear cubicle is designed and developed jointly by the Ministry of Power Industry and the Ministry of Machine Building together with Design Team in accordance with the requirements of competent industry department, power consumers and design unit, accords with national situation of China, has high technical index and can adapt to the development needs of power market.



2. Main parameter



No. Item(Unit) Parameter
1 Rated Working Voltage(V) AC 380
2 Rated Insulation Voltage(V) AC660
3 Rated frequency(Hz) 50
4 Main Bus Rated Current (A) ≤4000
5 Distribution Bus Rated Current(A) ≤1000
6 Main Bus Rated Short-time Withstand Current (kA) ≤80
7 Distribution Bus Rated Short-time Withstand Current (kA) ≤50
8 Rated Impulse Withstand Voltage(kV) 8
9 Standard GB7251.12
10 Protection Degree ≤IP40



3. Product application



Installation places: Indoor; without fire, explosion risk, serious pollution, rain immersion, violent vibration,chemical corrosion and conductive dust.

Daily average temperature(Within 24h): ≤+35℃

Ambient air temperature : -5°C ~ +40°C;

Altitude:≤2,000m;

Installation inclination:≤ 5°;



4. Drawing






5. Factory strength



GCS 0.4kv 0.416kv 6.6kv Low Voltage Power Distribution Switchgear 1



6. Delivery diversition



GCS 0.4kv 0.416kv 6.6kv Low Voltage Power Distribution Switchgear 2



7. FAQ



1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Technology ensure the quality satisfy international request.

3.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

4. For tender cooperation, it is welcome to discuss the detail in between.

5. Some type reports are provided accordingly.
