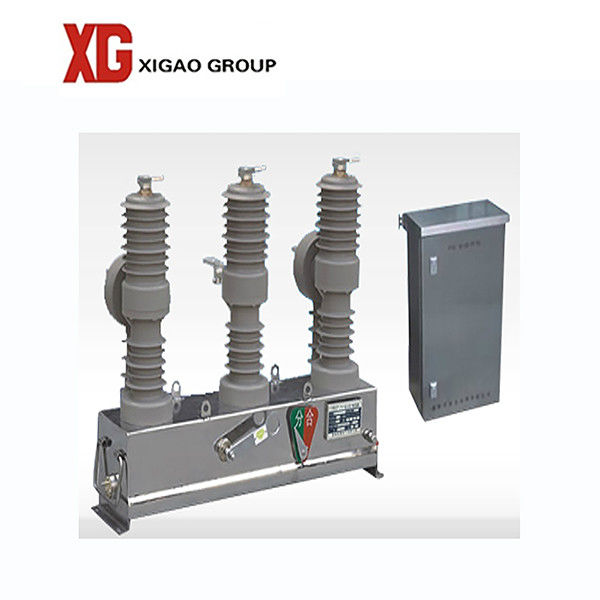

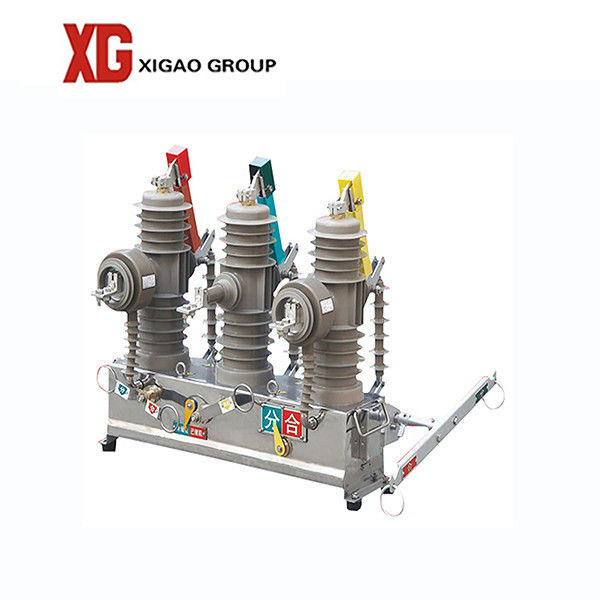

ZW32-24 Outdoor 22KV 24KV 630A Vacuum Circuit Breaker

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: ZW32
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Standard: IEC/GB Function: Control And Protection
Installation Location: Power Plants Warranty: 12 Months
OEM: Yes Package: Exporting Standard Package
MOQ: 1set Operation Type: Electric Or Manual
Rated Voltage: 22kv 24kv Rated Current: 200A-2000A
High Light:

ZW32-24 Vacuum Circuit Breaker

,

630A Vacuum Circuit Breaker

,

24KV Vacuum Circuit Breaker


Product Description

1.  ZW32-24 series outdoor type 22kv 24kv 630a vacuum circuit breaker auto recloser ACR



33kV vacuum circuit breaker /automatic circuit recloser (ZW 32 outdoor high-voltage alternating-current vacuum circuit breaker) is a new outdoor high-voltage alternating-current switchgear of our vacuum circuit breaker series. Its rated voltage is 33/35 kV. It applies to places with such voltage level, including overhead lines, industrial and mining enterprises, power stations, substations, etc. Under its normal operating conditions and specified technical parameters, it can satisfy the system protection requirements of the grid. It is characterized by automatic re-making, stable operation and long electric life.



2. Advantages



1.Simple structure.

2.Adapt ultra low resistance type vacuum interrupter.
3.Adapt optimization and modular spring operating mechanism.
4.Suitable for occasions with frequent operation.
5.Free maintenance and long service life.

6.High reliable performance.



3. Environmental Conditions



Ambient temperature: - 40℃~+40℃

Altitude: ≤2000m

Relative humidity: ≤95% (daily average) or ≤90% (monthly average)

Wind speed: ≤34m/s (equivalent to a pressure of 700pa on a cylindrical surface)

Structure and Function



4. Main Technical Parameters



Description Unit Data
Rated voltage KV 33,35
Max. voltage KV 40.5
Rated frequency Hz 50/60
Rated current A 630/1250
Rated short-circuit breaking current kA 20/25/31.5
Mechanical life Times 10000





5. Factory



ZW32-24 Outdoor 22KV 24KV 630A Vacuum Circuit Breaker 0



6. Delivery



ZW32-24 Outdoor 22KV 24KV 630A Vacuum Circuit Breaker 1



7. FAQ



1.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

2. For tender cooperation, it is welcome to discuss the detail in between.

3. Some type reports are provided accordingly.

4. Our factory is 250000m2 for production and office.

5. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
