100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: RW3
Minimum Order Quantity: 3-5 SET
Packaging Details: WOODEN CASE
Delivery Time: 1-3DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 SET
Detail Information
Rated Voltage: 10kv 20kv 33kv Rated Current: 100a 200a
Material: Silicone Or Porcelain Phase: 3
Life Span: 15 YEARS Color: Gray
Fuse Element: Silver Standard: IEC282
High Light:

RW3 Drop Out Fuse

,

XG Drop Out Fuse

,

200a Drop Out Fuse


Product Description

1. RW3 Series 10KV 20KV 33KV High Voltage Cutout Fuse Drop Out Fuse

RW Series fuse is a switching device that breaks a circuit by melting the melt with its own heat when the current exceeds a specified value for a certain time. Drop fuse is a fuse that automatically drops the fuse piece after operation and forms a fracture. (HP)RW, (HP)RWG and HRC3 series dropout fuses are suitable for short circuit and overload protection of transmission lines and power transformers in ac 50Hz system with voltage of 10kV~35kV.

2. Technical Parameters

Product model
Rated voltage
(kV)
Rated current
(A)
Rated maximum breaking current
(kA)
1min Power-frequency withstand voltage
(kV)
BIL
(kV)
(H)RW3-12/100(200)
12
100/200
12.5/16
42
85
(H)RW7-12/100(200)
12
100/200
12.5/16
42
85
(H)RW10-12/100(200)
12
100/200
12.5/16
42
85
(H)RW11-12/100(200)
12
100/200
12.5/16
42
85
(HP)RW12-12/100(200)
12
100/200
12.5/16
42
85
HRW12-35/100(200)
35
100/200
12.5/16
95
185
(H)PRWG2-35/100(200)
35
100/200
12.5/16
95
185



3.  Photo

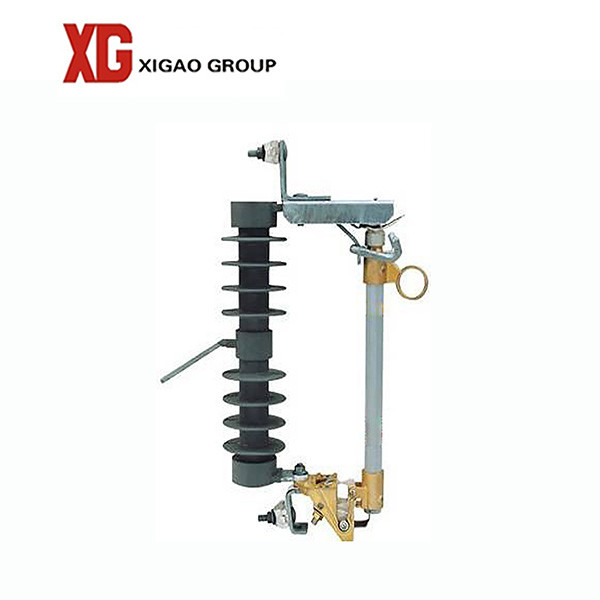

100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse 0

100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse 1



4. Delivery



100A 200A RW3 10KV 20KV 33KV High Voltage Drop Out Fuse 2



5. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
